Mounting and Connecting Devices
26
ZFX-C User’s Manual

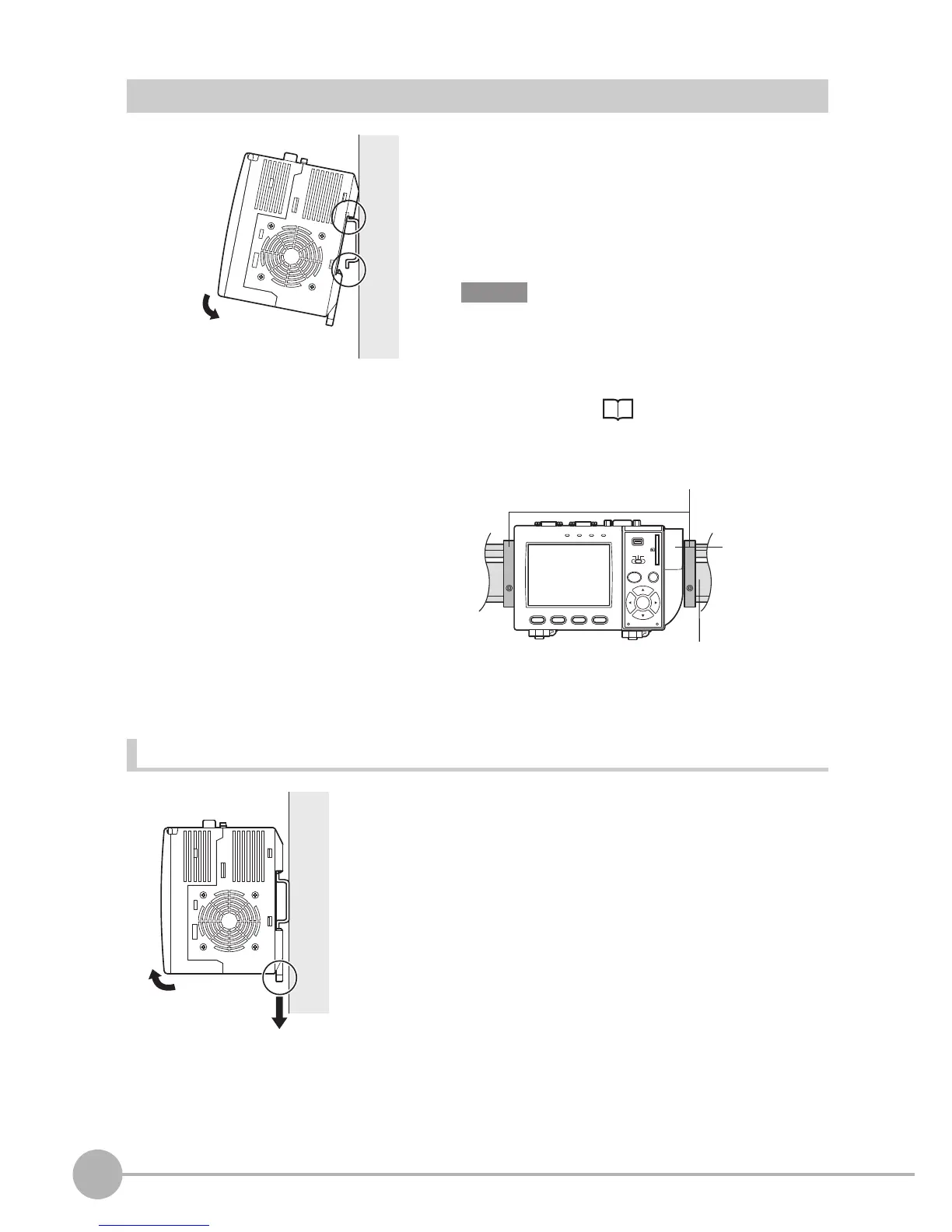

Installing on the DIN Track
1 Hook the Controllers upper hook onto the DIN track.
2 Push the Controller down onto the DIN track until its
lower hook is snapped into place.
•Attach the End Plate (sold separately) to both sides of the
Controller on the DIN track.
•Attach the Exhaust Unit (supplied) to the Controller when
installing other devices adjacently on the same DIN track
as the Controller.
p.30
Removing procedure
1 Pull the Controllers lower hook downwards.
2 Lift up the Controller from its bottom to remove it from
the DIN track.
1
2
Important
PULL OPEN
1234
O
M
RON
ZFX-C10
OUTPUT
RUN
ERROR
ENABLE
MENU RUN
SD
CARD
ADJ
USB
AUTO ESC
SET
DIN track (sold separately)
End Plate (sold separately)
PFP-M
PFP-100N (1 m)
PFP-50N (0.5 m)
PFP-100N2 (1 m)
Exhaust Unit
1
2
