Setting Measurement Items
52
ZFX-C User’s Manual
Model registration procedure
Registration of Graphic Search models differs from registration of Pattern Search models in that the model profile is
registered.
In model registration, the profile of the target image can be traced automatically. Also, the various tools can be used
to adjust how much of the profile is picked up, perform free drawing, and interpolate and delete profile lines.

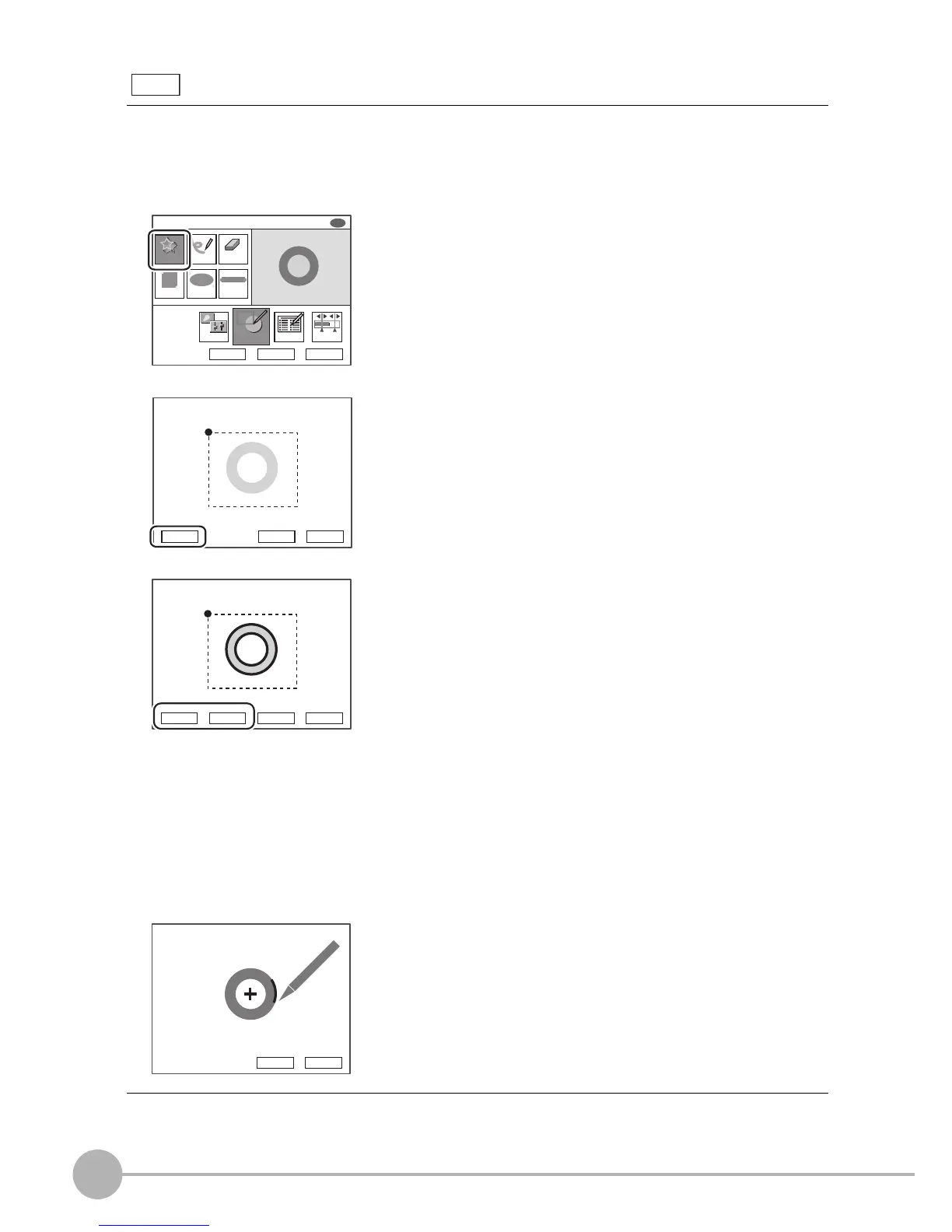

1 Select [Auto] and enclose the area in which the
profile is to be traced.
2 Select [Auto] displayed on the lower left of the
screen for region settings.
The profile is traced.
3 Adjust the profile lines.
How much of the profile is picked up can be adjusted by
selecting [Up] or [Down] after the profile is traced.
[Up]: Selecting this setting multiple times makes noise
(only low-contrast noise) more difficult to pick up.
This setting is effective when lots of noise is
picked up.
Delete high-contrast noise with the [Erase] tool.
[Down]:Selecting this setting multiple times makes the
profile easier to pick up.
This setting is effective when the profile to be de-
tected is not picked up.
4 If the profile is partially clipped, trace by [Free],
[Box], [Ellipse] or [Line].
When [Free] is selected, the profile can be drawn with
the touch pen. The profile of automatically picked up im-
ages can be traced and interpolated as desired with the
touch pen.
To Next Page
