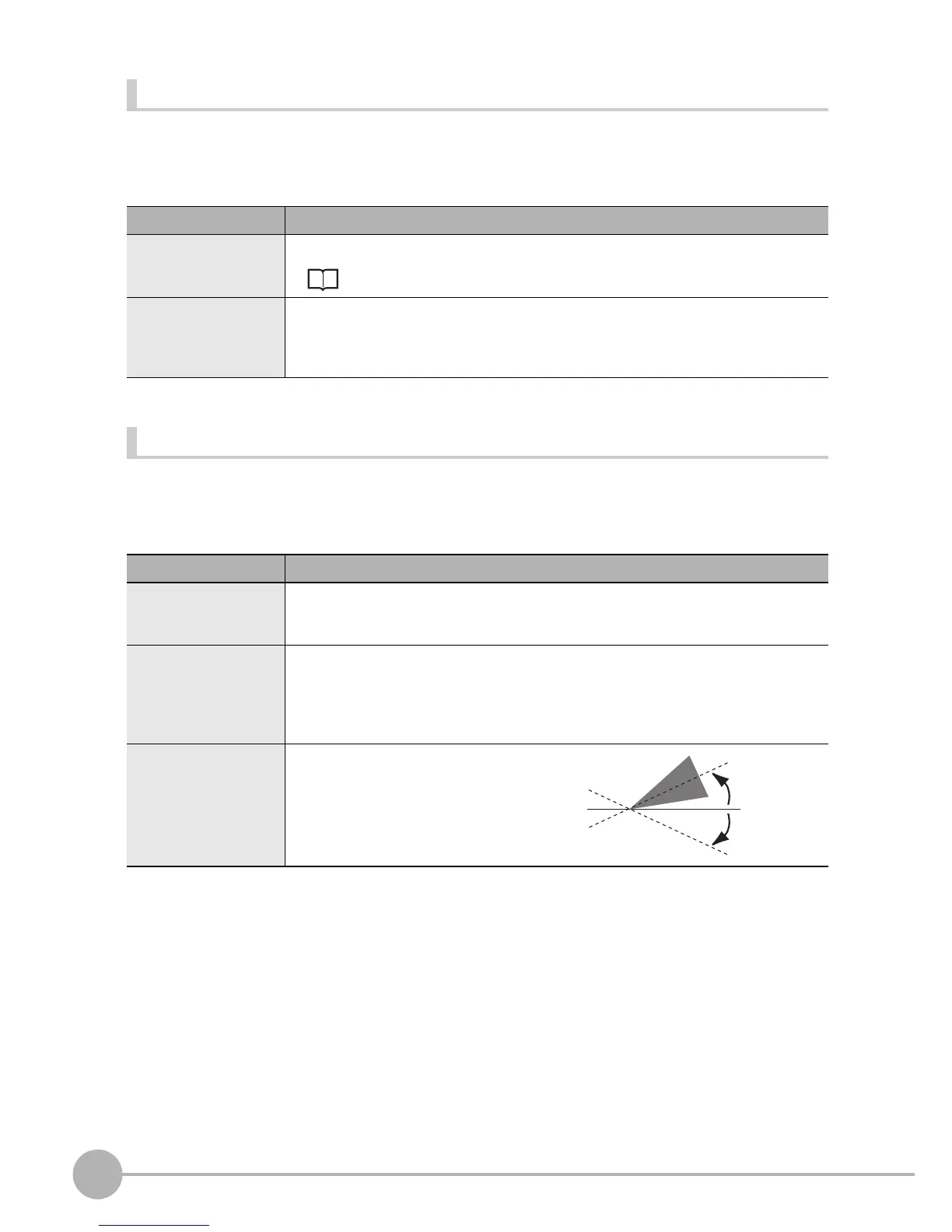

Setting Measurement Items
64
ZFX-C User’s Manual
Region settings
This function sets the measurement region.
X MENU mode - [Setup] - [Item] - [Region]
Threshold
This function sets the judgment conditions.
X MENU mode - [Setup] - [Item] - [Limits]
Item Description
Measurement region This function sets the region to be measured.
Setting the Region p.213
Reference registration When the measurement region is set, measurement is executed on the display image,
and the result of execution is registered as the reference value. To re-register only refer-
ence values, you can use this function to re-register only reference values based on the
image currently on screen.
Setup Item Description
Area Sets the range of the area to be judged as OK.
Range: 0 to 9999999.999
(When calibration is OFF, the range becomes 0 to 307200.)
Gravity XY Sets the range of movement in the X- and Y- axes of the measurement target to be judged
as OK.
Range: -9999.999 to 9999.999
(When calibration is OFF, the range of movement for positions X and Y are 0 to 608 and 0
to 464, respectively.)
Axis angle Sets the rotating range of the measurement tar-
get to be judged as OK.
Range: -90.0 to 90.0
