23
2. Introduction

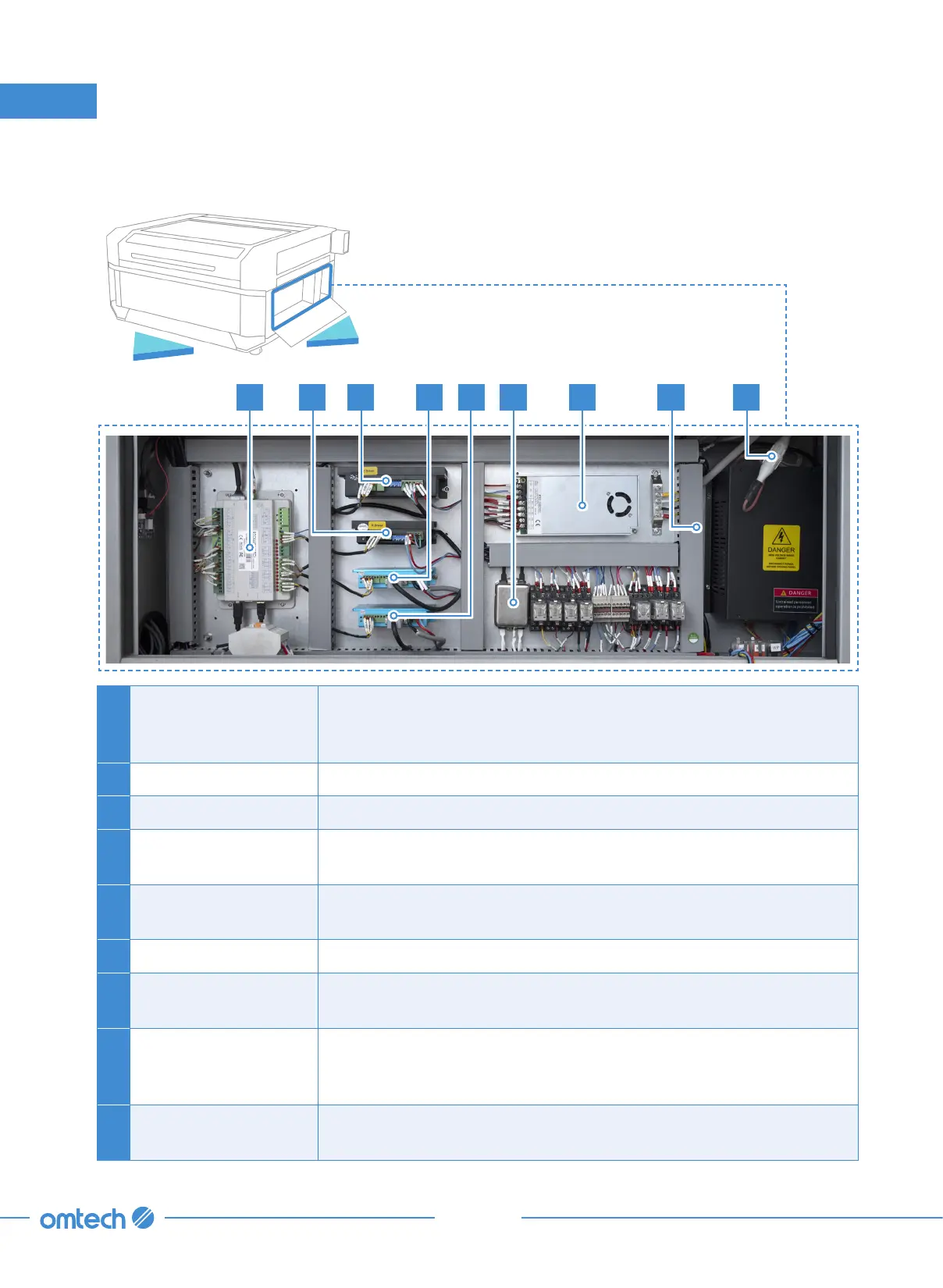

2.6 Electronics Bay
A Mainboard
This circuit board controls the engraving process, responding to
commands from your engraving software or the machine’s control
panel.
B Z-Axis Driver This device controls the motor that raises and lowers the workbed.
C Rotary-Axis Driver This device directs attached and enabled rotary devices.
D Y-Axis Driver
This device powers the motor that moves the laser head along the
X-axis rail.
E X-Axis Driver
This device powers the motor that moves the laser head along the
X-axis rail.
F Control Power Supply This device powers the machine’s control panel and mainboard.
G EMI Filter
This device helps protect the sensitive electronics in the mainboard
from interference from the power supply.
H Anode Connection
During replacement of the tube or power supply, use this socket to
more easily and safely restore the high-voltage connection between
the two.
I
Laser Power Supply
This device transforms standard electricity into the extremely high
voltage necessary for the laser tube.
Front
Right
A C B D E F HIG
