6. Touch Screen Operations
6.6.5 Frame Cutting

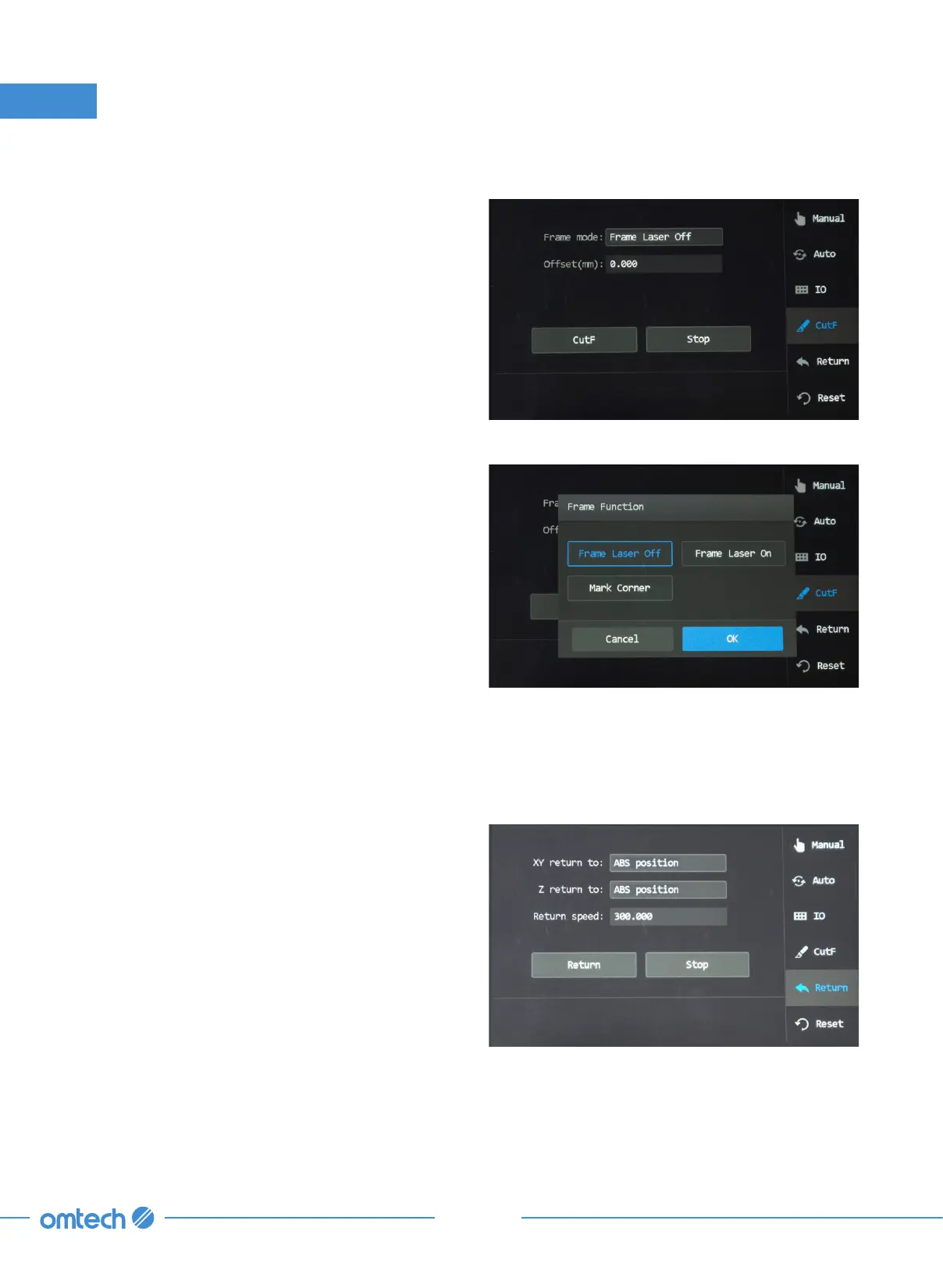

Tap CutF, and the menu as shown pops up.
To cut a frame at a set distance from the outer
circumference of the design file:
1. Tap the box after Frame mode and choose
Frame Laser On. Choosing Frame Laser Off
disables the laser. Tapping “Mark Corner”
sets the laser to cut a hole at each corner of
the frame.
2. Set your desired distance between the frame
to be cut and the outer circumference of the
design file.
3. Tap CutF and the laser should start firing. To
stop, tap Stop to shut off the laser.
6.6.6 Setting Laser Head Return
Tap Return to enter the frame cutting setting
menu as shown.
