8.3.2 Mirror 1 Alignment
•
Wear safety goggles during the entire aligning process.
•
Avoid attaching the tape directly to any of the mirrors.
•
Less than 15% of the maximum power (not Min.) should be sufficient to leave a
clear mark without setting the testing tape on fire.
•
Always make sure the path is clear between the laser and its target. Never
allow foreign objects between the laser and its target. Always close the cover
before firing the laser. Do not look directly at the active laser through the
cover during this procedure.
Once emitted from the laser tube, the laser beam hits Mirror 1, which reflects it to Mirror 2. That is to
say, when the laser tube is properly aligned with Mirror 1, to align Mirror 1 is actually to align it with
Mirror 2.

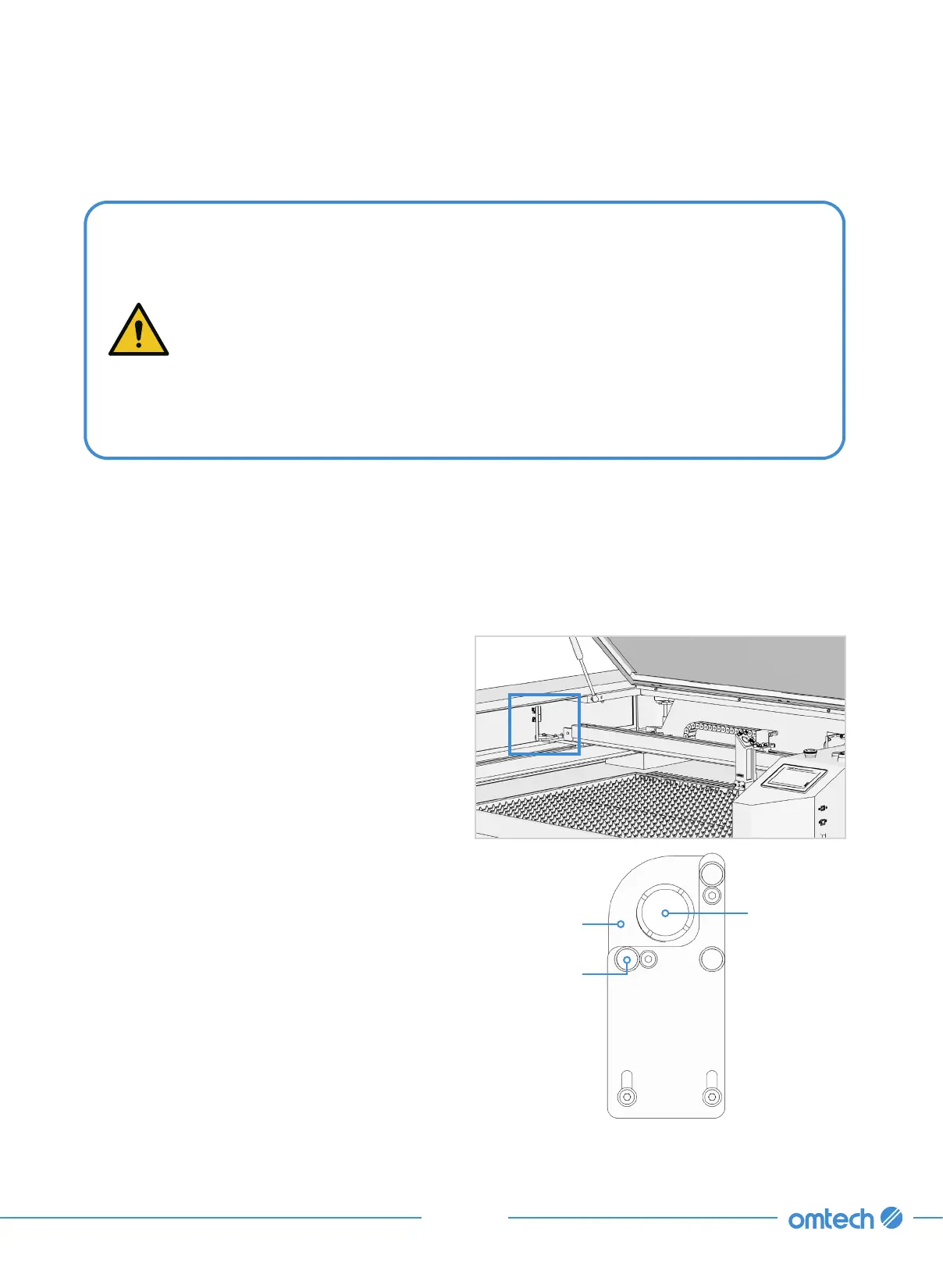

Tools Needed: Masking tape
Step 1. Tap Manual in the main menu.
Step 2. Use the direction arrows on the control
panel to send Mirror 2 to the back of
the bed along the Y axis.
Step 3. Attach a piece of masking tape to the
mirror’s frame.
Step 4. Put on safety goggles and turn on the
machine and set the power level to 15%
of the maximum power or lower.
Mirror 2
Setscrew
Mirror 2
Frame
Mirror 2
To Next Page
