2. Introduction

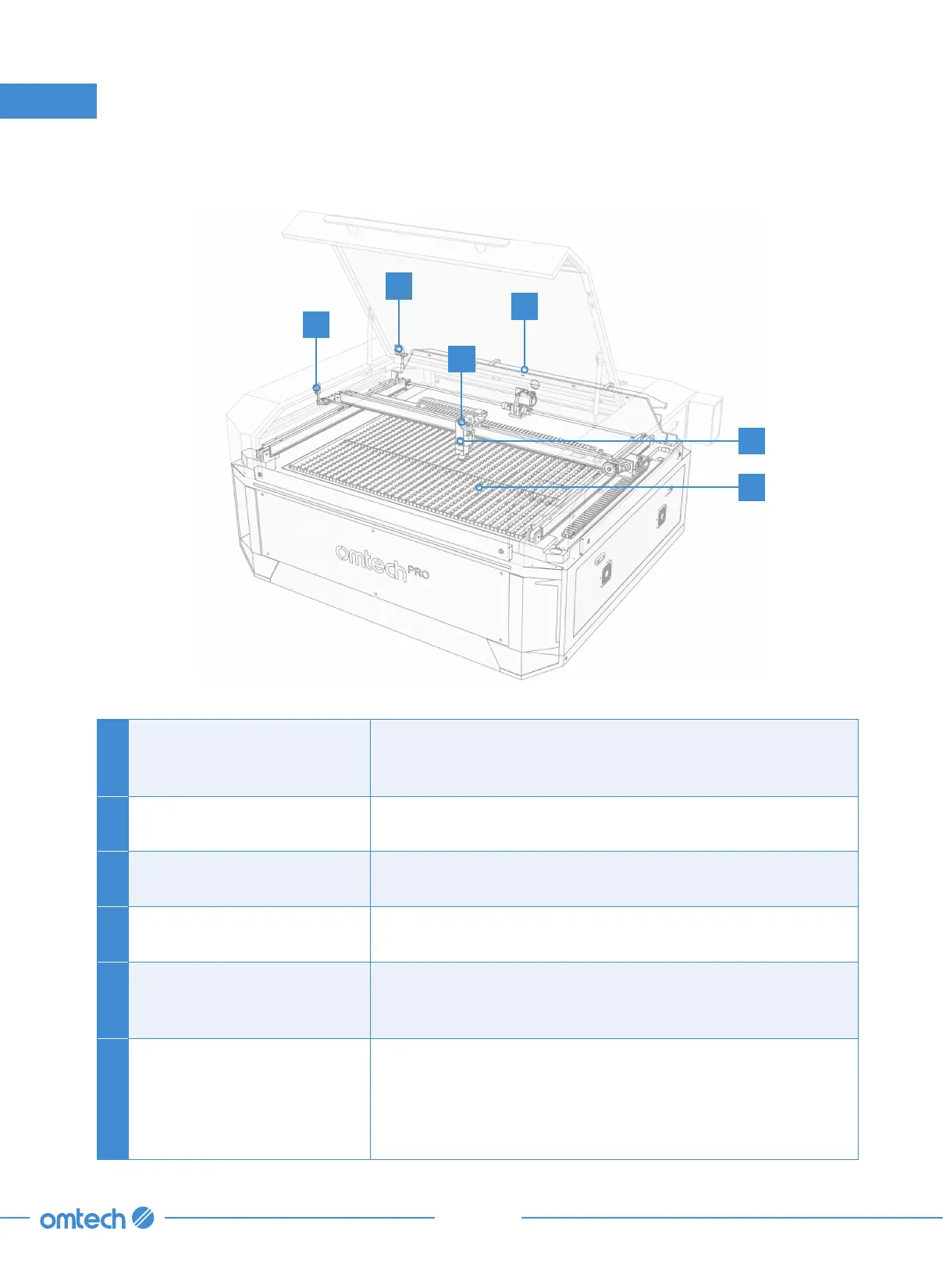

2.3.3 Laser Path
B
A
C
D
E
F
A Laser Tube
The glass tube that produces the laser is mounted on
brackets and is immobile. Its connection with the laser power
supply is extremely high voltage and extremely dangerous.
B 1st Mirror
This adjustable-angle mirror is fixed in place to transfer the
invisible engraving laser from the tube to the 2nd mirror.
C 2nd Mirror
This adjustable-angle mirror moves with the X-axis rail to
allow the laser beam to travel along the left Y axis.
D 3rd Mirror
This adjustable-angle mirror moves with the laser head to
allow the laser beam to travel along the X axis.
E Focus Lens
This lens directs and focuses the laser to the material. For the
best effect, it should be at the correct focal length from the
upper surface of the material.
F Workbed
The workbed can be adjusted in height to fit thinner and
thicker materials, as well as adjusted between the aluminum
knife blade and steel saw blade platforms. The open design
allows better airflow beneath the material for stronger, faster,
and cleaner engraving.
