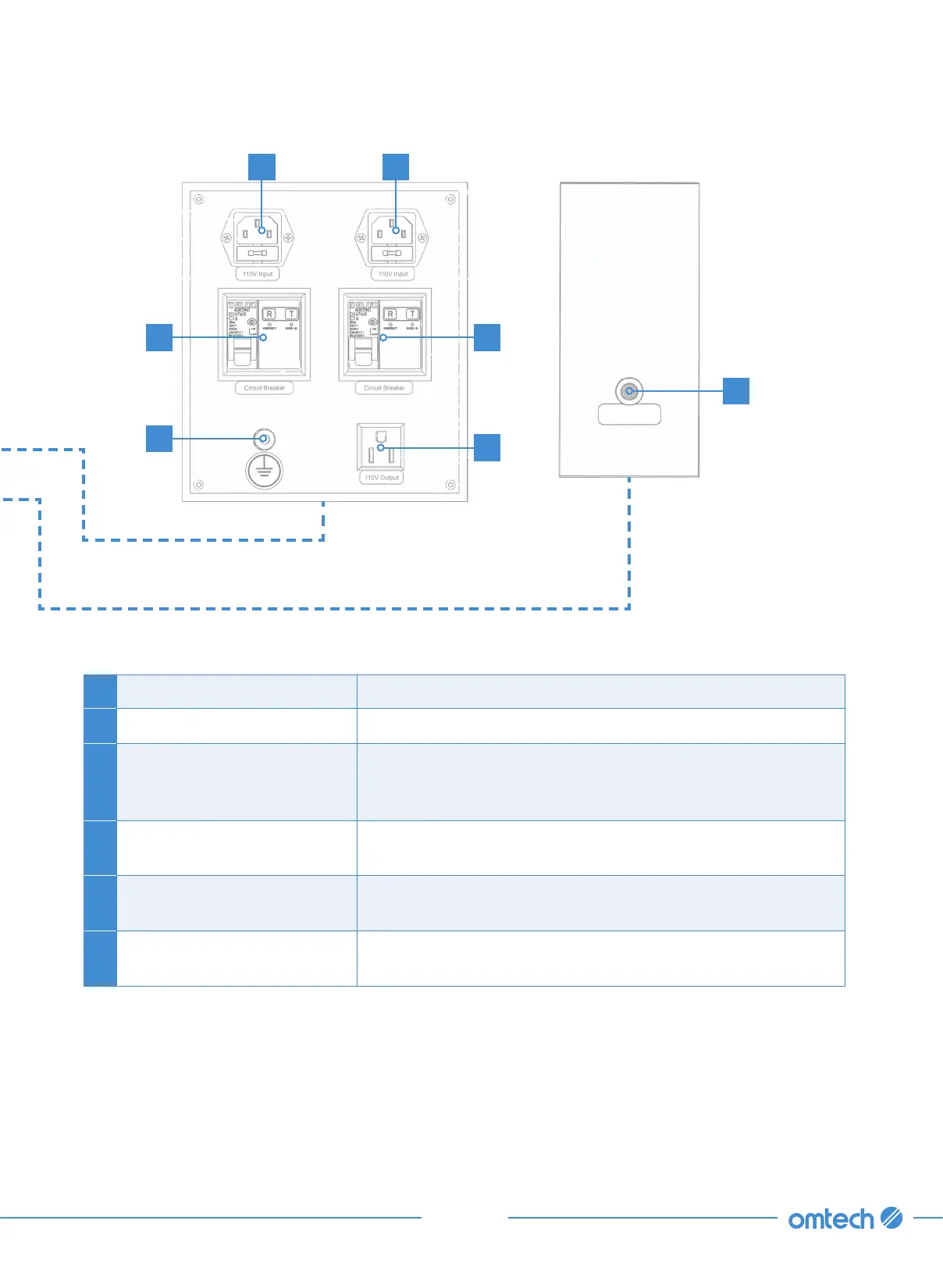

F Main Power This port powers the engraver itself.
G Chiller Power This port powers the integrated chiller.
H Circuit Breakers
These are the main power switches for the engraver and the
chiller. They should be flipped off between sessions, as well
as during any repair or maintenance.
I Ground
This port can be used to electrically ground the engraver if
standard three-prong outlets are unavailable.
J 110V Supply
This outlet can be used to power the fan, although it is best
to use a different circuit if possible.
K Air Intake
This port connects to your air assist to provide its pressurized
air.
F G
H
I
H
J
K
Air Intake
