17
2. Introduction

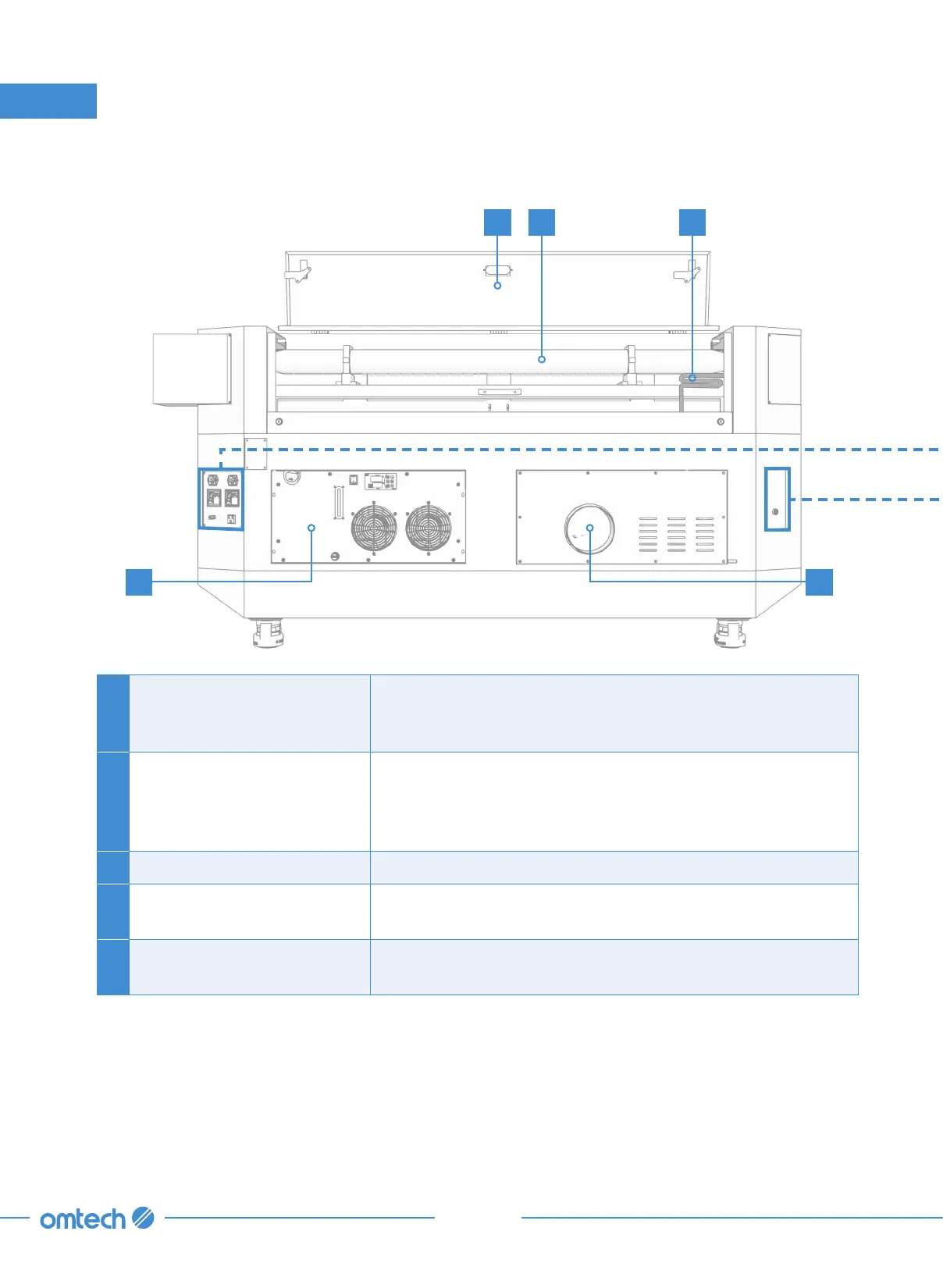

Rear
A B C
G E
A Rear Access Door
This door provides access to the laser bay, including the
laser tube, its brackets, its electrical and cooling water
connections, and the 1st mirror.
B Laser Tube
During use, the gas mixture inside this long glass tube
produces a powerful laser. Although the active laser should
be directed into the main bay, its reflections may remain
dangerous. Wear laser glasses while the tube is active.
C Laser Tube Connections These wires and tubes should come fully preconnected.
D Integrated Water Chiller
This water chiller cools the laser tube without the need for
other accessories.
E Exhaust Vent
This vent should be connected to the fan to pull gases and
airborne debris from the workbed.
