Hardware description
FP Web-Server V2.810 EN 25

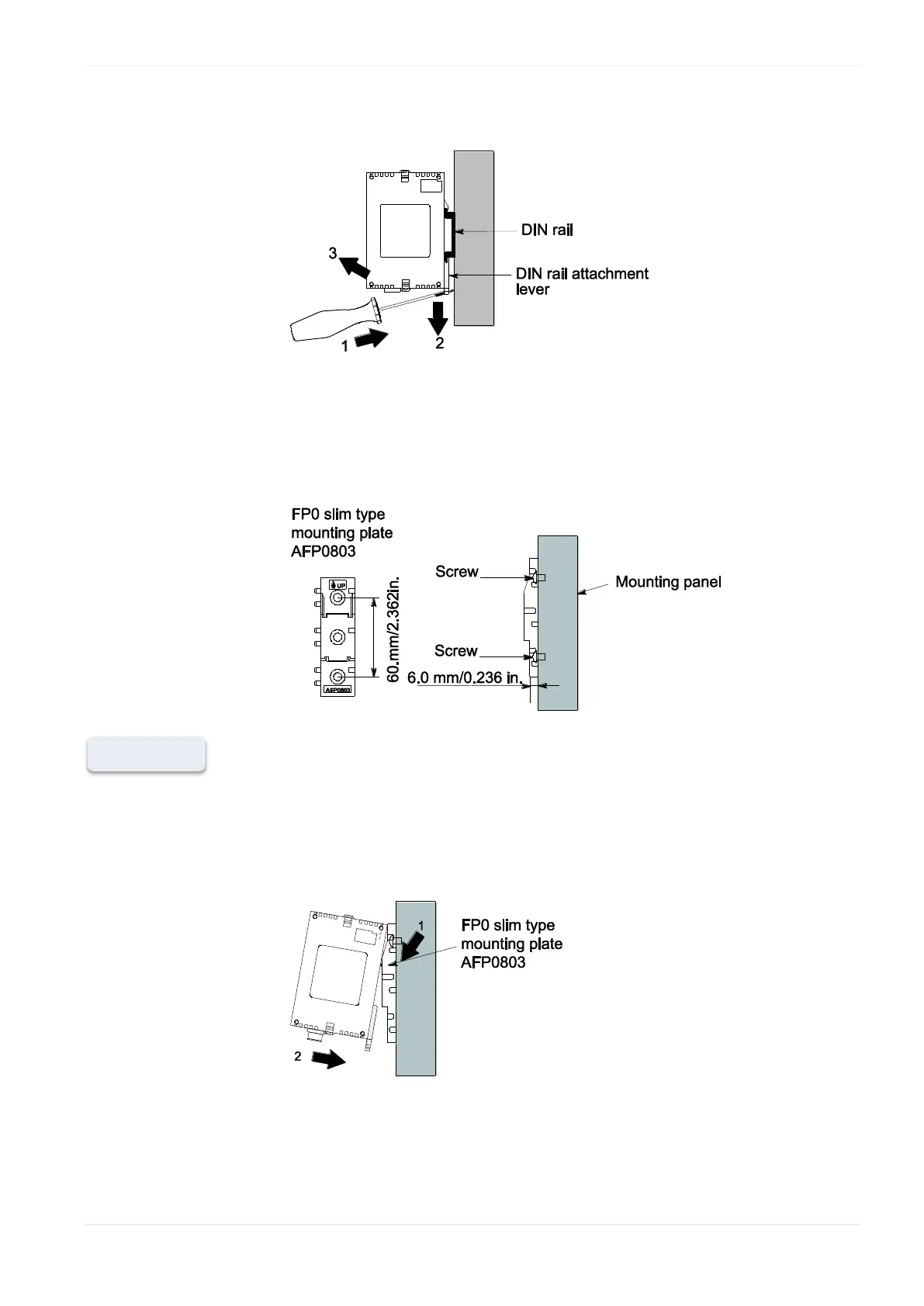

3. Lift up the FP Web-Server unit and remove it from the rail
d) Installation Using FP0 Slim Type Mounting Plate
Use M4 size pan-head screws for attachment of FP0 slim type mounting
plate (AFP0803) to mounting panel.
1. Fit the upper hook of the FP Web-Server onto the FP0 slim type
mounting plate
2. Without moving the upper hook, press on the lower hook to fit the FP
Web-Server into position
When using an expansion unit, tighten the screws after joining all of the
FP0 slim type mounting plates to be connected. Tighten the screws at
each of the four corners.
