FIX BOLT
FINAL
TRANSMISSION
SHAFT
FINAL
TRANSMISSION
SHAFT
DRIVING SHAFT
SUB SHAFT
SUB SHAFT

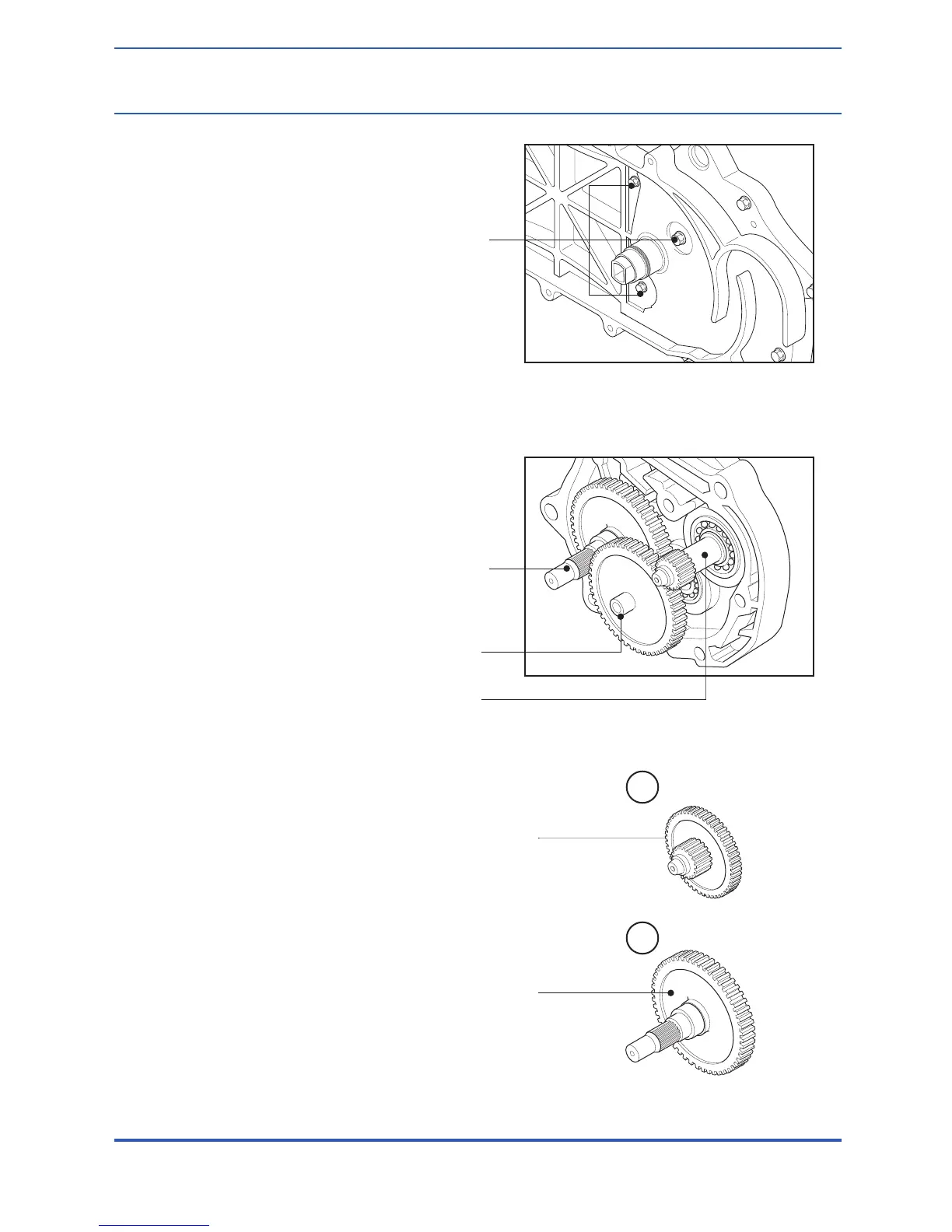

Dismantling the final
transmission assembly
1. Remove the rear brake cable.
2. Remove the rear wheel
(refer to 13-3).
3. Remove the left crankcase
cover (refer to 9-2).
4. Remove the driven pulley of the
clutch (refer to 9-5).
5. Drain the oil out of the final
transmission.
6. Remove the bolts of the final
transmission gearbox.
7. Remove the transmission
gearbox cover.
8. Remove the gasket and the
locating pin.
Detach the final transmission
gearbox cover
1. Check the final transmission
assembly.
2. Check if the sub shaft gear is
worn or damaged.
3. Check if the final transmission
gear is burnt or damaged.
2
3
10. The Final Transmission Assembly
10-3
112
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 10: THE FINAL TRANSMISSION ASSEMBLY
