16. Starter System
16-5
170
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 16:STARTER SYSTEM

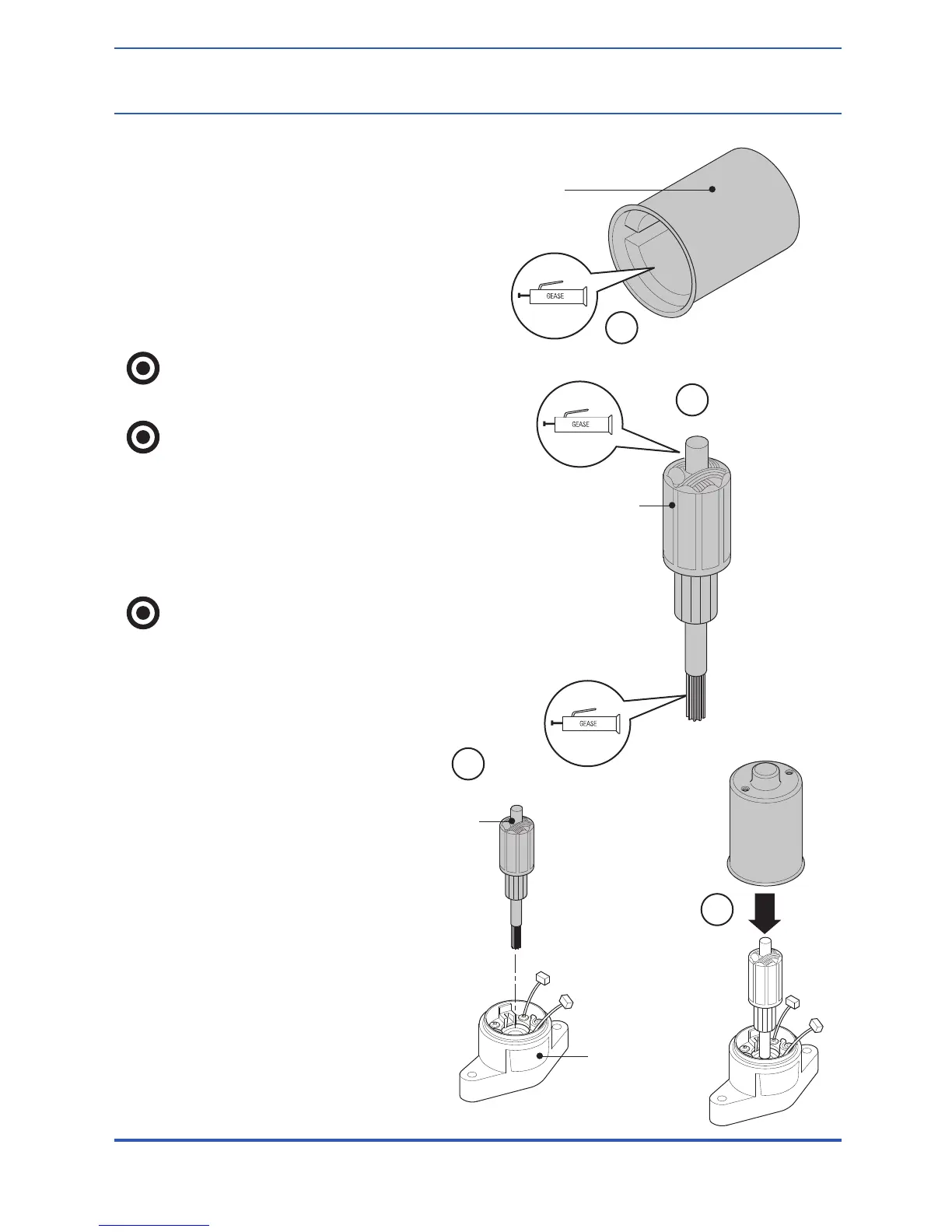

10. Apply grease to the dust cover.
11. Install spring brush in its holder.
12. Apply a light film of grease to both ends of
the sliding surfaces of the armature shaft.
13. Install armature in front bracket.
Make sure the surfaces between the
brush and the armature are not
damaged.
Be sure the dust cover lip is not
damaged by the armature mount shaft.
14. Install a new o-ring in front bracket.
15. Engage motor housing with that of front
bracket. Install two housing bolts.
When engaging the housing with the
front bracket, install the armature first,
hold the armature shaft and then install
the housing in case the armature is
drawn out by the magnet.
Starter Relay Inspection
1. Remove right side body panel.
2. With main switch in the “on”
position, depress the starter button
to check for a click, which indicates
proper operation of relay. If starter
button is depressed without a click,
perform the following steps.
•Test starter relay voltage.
•Inspect starter relay ground
return circuit.
•Inspect starter relay.
10
12
13
15
DUST COVER
ARMATURE
SHAFT
ARMATURE
SHAFT
FRONT
BRACKET
