Panterra Fusion - Exhaust System Removal

2. Body Cover and Exhaust System
2-5
32
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 2: BODY COVER AND EXHAUST SYSTEM

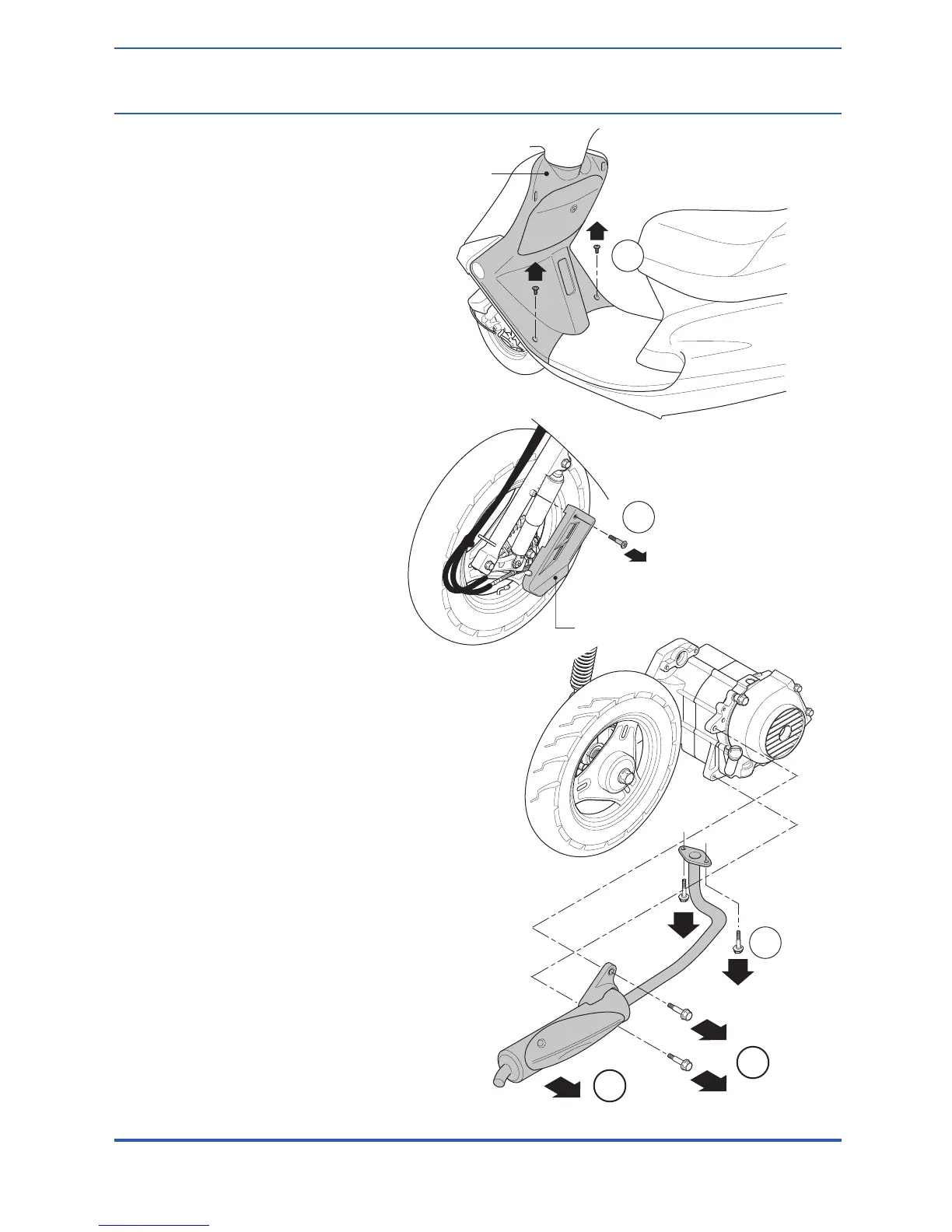

Front Box Removal
1. Remove front cover and front panel.
2. Remove two catch bolts in the front of
the floor panel.
3. Remove the front box catch bolt.
4. Remove main switch outer ring and then
remove front box outwardly and upwardly.
Front and Rear Fenders Removal
1. Remove the two fix screws in the front
fender.
2. Dismount the front fender.
3. Remove the two catch bolts in the
rear fender stay.
4. Remove the rear fender stay.
Exhaust Pipe Removal
1. Remove the two nuts in the pipe joint.
2. Remove the two pipe catch bolts.
3. Remove the exhaust pipe.
4. Remove the joint ring.
•Install exhaust pipe joint ring before
installing exhaust pipe.
•Install exhaust pipe joint nuts and fasten
them and then install exhaust pipe catch
bolts and fasten them.
Torque:
•Exhaust pipe catch bolt 3.5kg/m
•Exhaust pipe joint jam nut 1.2kg/m
•Use a new exhaust pipe carrier ring when
reassembling the exhaust system.
2
2
4
FRONT BOX
FRONT FENDER
2
2
