NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 6: ENGINE REMOVAL AND INSTALLATION
Engine Installation
1. Attach front engine support
bolt into position and tighten to
5kg-m (35 ft-lbs).
2. Slide chassis to the rear to
align the rear mount and install
the mounting bolt. Tighten to 5
kg-m (35 ft-lbs).
3. Attach the rear shock
absorber and tighten to 4 kg-m
(28 ft-lbs).
4. Complete the remainder of
the assembly process in reverse
order of the disassembly.
5. When assembly is complete,
make sure to check the throttle
adjustment and brake
adjustment before attempting to
ride the scooter.
1b

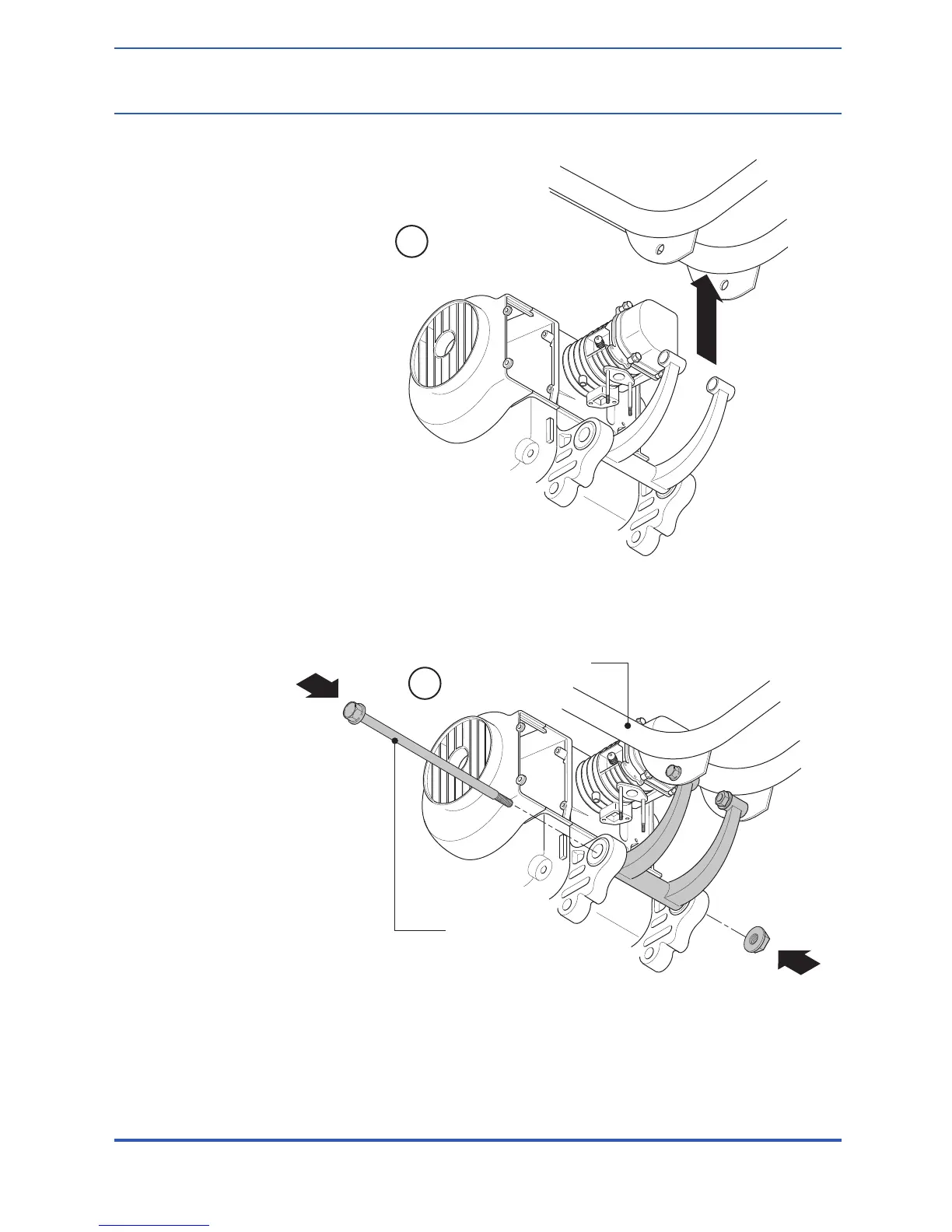

ENGINE
SUPPORT BOLT
CHASIS
UNDERSIDE OF SCOOTER
1a
