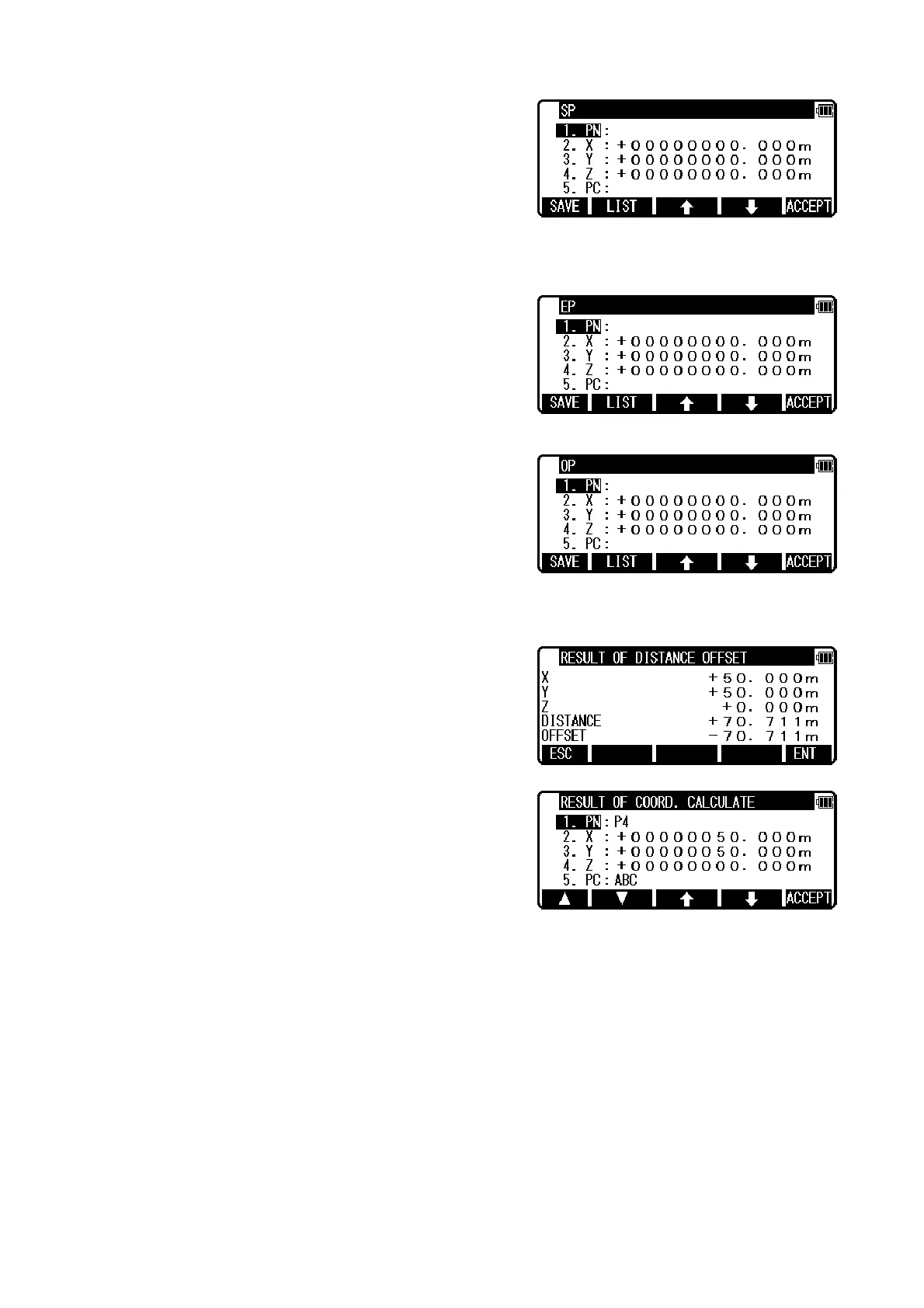

Select 1. SP and press [ENT] to view SP screen.
Input PN ( Point Name ), X, Y, Z, and PC ( Point Code ) of
SP point or import from the memory of rectangular coordinate as SP by [F2][LIST].
If you finish the input of SP value, press [F5][ACCEPT]. Then you go to EP input screen.
Input EP data like input of SP. If you finish the input of EP, press [F5][ACCEPT]. Then you go to OP
input screen.
If you finish the input of OP, press [F5][ACCEPT]. Then you go to RESULT OF DISTANCE OFFSET
screen.
You can see the coordinates of new point on the line, offset distance of new point to the line and
distance of new point to start point.
Press [F5][ENT] to save the coordinates of new point.
The PN, X, Y, Z and PC are viewed and can be edited.
If all items are OK, press [F5][ACCEPT] to save them.
