Pentax R-200 Series User Manual

37

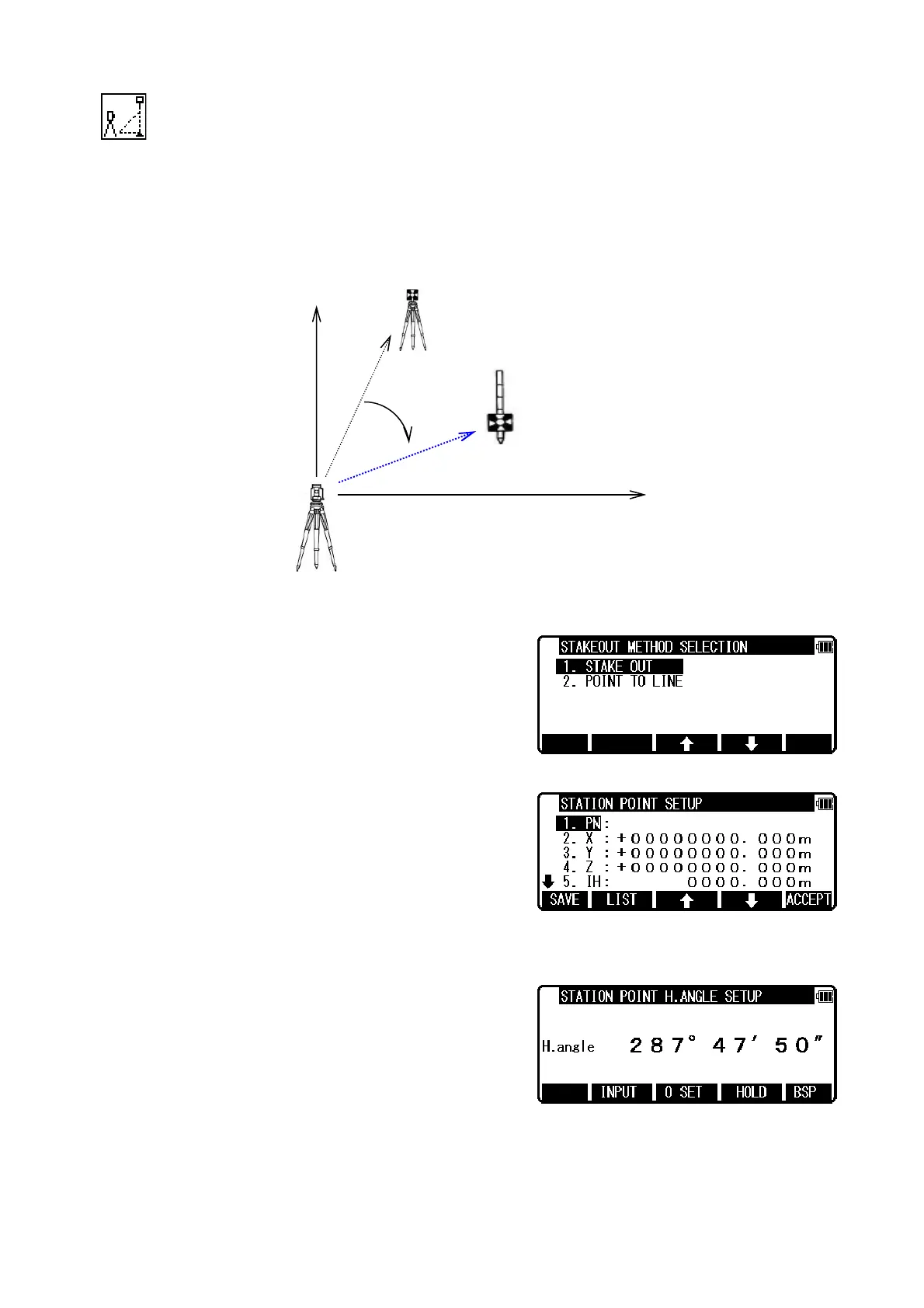

7. STAKE OUT
From the known Station point and Direction angle, the Coordinates for the Stakeout are obtained.
7.1 STAKE OUT
Press [F1][STAK] to view the STAKEOUT METHOD SELECTION screen.
Select 1.STAKE OUT and press [ENT] to view the STATION
POINT SETUP screen.
Open the PN, X, Y, Z, IH and PC input window and input each. Save the data by pressing [F1][SAVE].
Press [ENT] to view STATION POINT H ANGLE SETUP
screen.
Input the H. angle by pressing [F2][INPUT], [F3][0SET] and [F4] [HOLD] or Backsight Coordinates by
pressing [F1][BSP].
BSP
Stake out Point
Station Point
