10
F2 CALC Calculation
F3 VPM Virtual Plane Measurement
F4 RDM Remote Distance Measurement
Other four Functions are viewed by pressing [F5][PAGE].
Function key Description
F1 TRAV Stake out
F2 ROAD ROAD DESIGN
F3 I/O Input and Output
F4 PREF Preference
b. INVERSE, POINT COORDINATES, LINE-LINE INTERSECTION functions

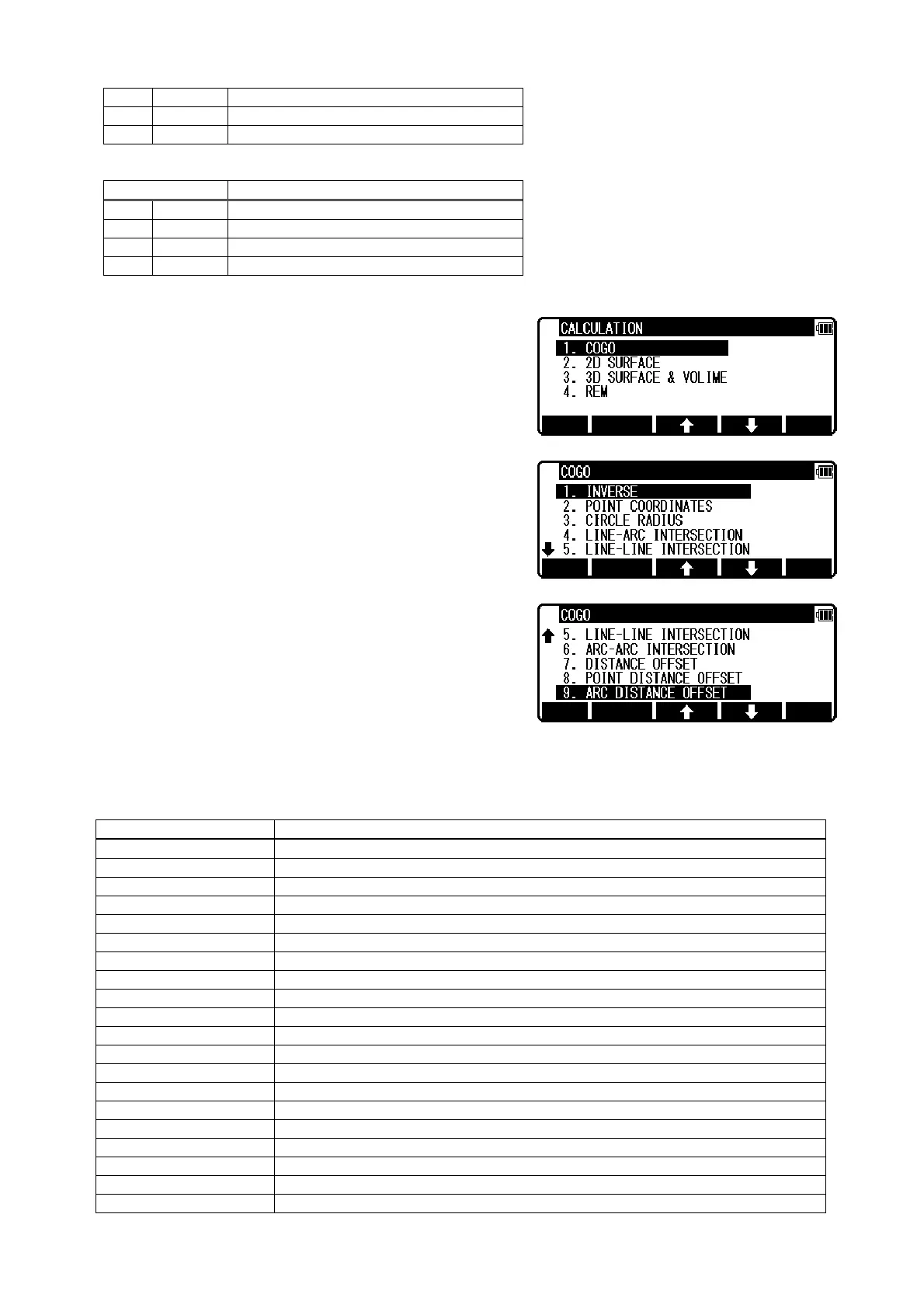

CALCULATION screen is viewed by pressing [F2][CALC].
The CALCULATION consists of COGO, 2D SURFACE and
3D SURFACE & VOLUME and REM functions.
COGO screen is viewed by selecting 1. COGO and
pressing the [ENT].
The COGO consists of INVERSE, POINT COORDINATE,
CIRCLE RADIUS LINE-ARC INTERSECTION, LINE-LINE
INTERSECTION, ARC-ARC INTERSECTION, DISTANCE
OFFSET, POINT DISTANCE OFFSET, POINT DISTANCE
OFFSET, ARC DISTANCE OFFSET, and functions.
2.3 Typical Function keys of PowerTopoLite
Following function keys are typical ones of PowerTopoLite and each function key is described for
each function of this Manual.
Function key Description
ENTER Opens the input screen of Coordinate values etc.
PAGE Views another function combination.
SELECT Selects the Character and moves to next input at PN input etc.
ACCEPT Enters the displayed values without new Coordinates value input etc.
INPUT Inputs your desired Horizontal angle.
BSP Views the BSP SETUP screen to input its Coordinates.
SAVE Saves inputted data.
ME/SAVE Measures and then saves inputted data.
EDIT Changes the Point name or Prism height.
REMOTE Views your aiming point Coordinates.
OFFSET Views the Target Coordinates adding the offset values.
STATION Returns to the STSATION POINT SETUP screen.
H. ANGLE Returns to the STSATION POINT H.ANGLE SETUP screen.
LIST Views the POINT SELECTION FROM THE LIST screen.
ZOOM ALL Returns to original size.
ZOOM IN Magnifies the graphics size.
ZOOM OUT Reduces the graphics size.
DISP Views point or point & graphic or point & point name or all.
DELETE Views the POINT DELETION screen.
FIND PN Views the PN search screen by inputting the Point name.
