14. PREFERENCE
Followings are possible function and the factory default settings.:
FUNCTION Default settings
A Language other than the English can be selected. “English”
Coordinate system can be selected. (cf. Coordinate axis definition )
Character input method can be selected. “FULL TEMPLATE”
Action input method can be selected. “PROCESS TYPE”
The offset (remote) method can be selected. “FIXED PLANE”
Compare method can be selected. “ALL IN ONE VIEW”
Aiming on/off can be selected. “OFF”
EDM (electronic distance meter) settings can be
selected.
PRIM. MEAS KEY, “MEAS. SHOT”
SEC. MEAS KEY, “TRACK CONT”
MEAS. MIN DISP (only R-322EX/NX,
R323R-323EX/NX),
“COARSE”
TRACK MIN DISP, “COARSE”
SHOT COUNT, “1 TIME”
SHOT INPUT. “01 TIME”
Elevation factor can be defined.
AVE.ELEV. +0000.0000m
SCALE FACT 1.00000000
Duplicate point name checking SCALE FACT “OFF”1.00000000

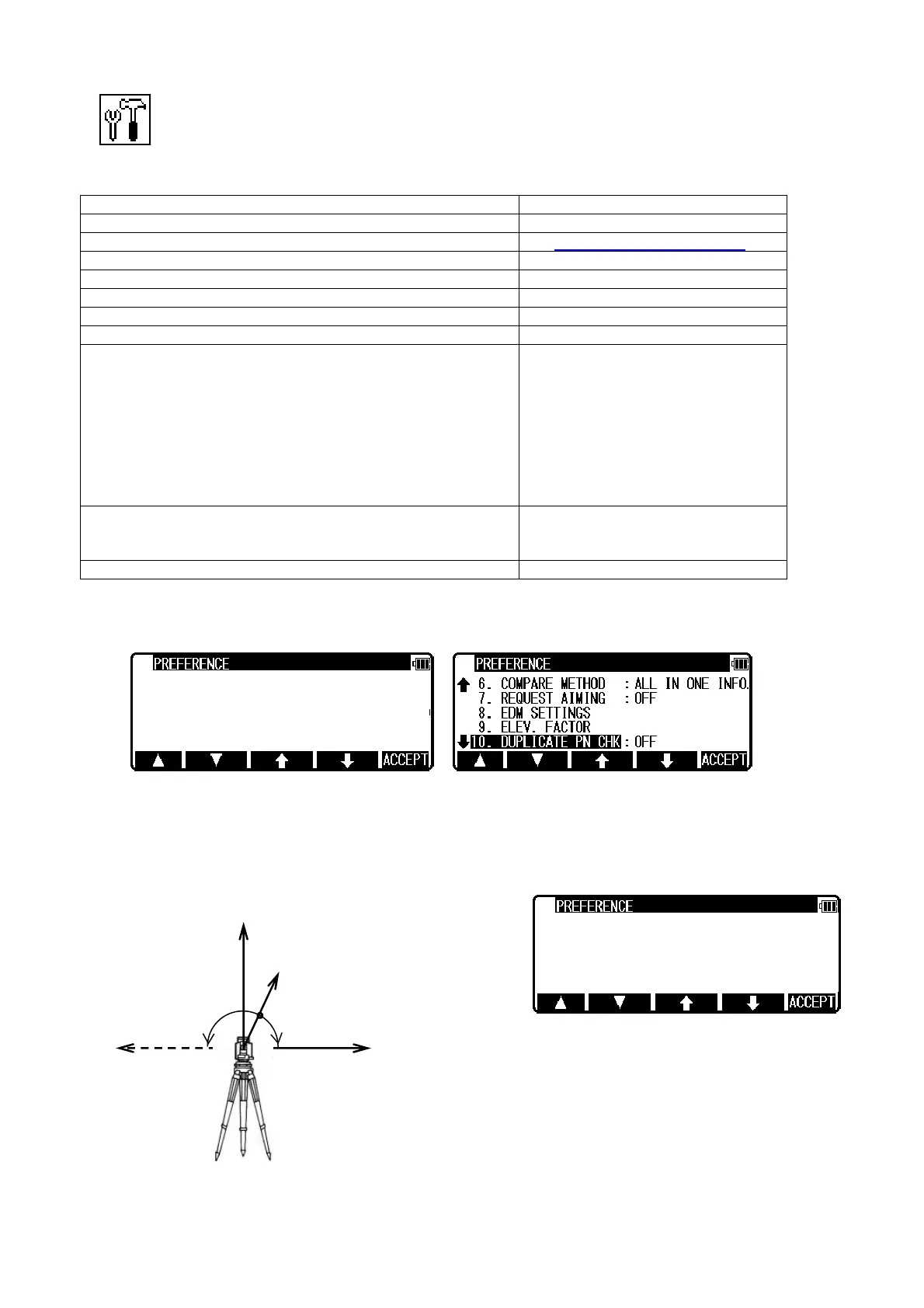

Press [F4][PREF] of the PowerTopoLite screen to view the PREFERENCE screen.
14.1 Coordinate axis definition
Select 21. COORD.AXIS by pressing the down arrow key, and press [ENT] to view the coordinate
system definition window. Press [ENT] to select and press [F5][ACCEPT] to enter.
Definition of each selection is as follows.
Height
(User difined)
Basis direction
Right angle
90° CW
Station
Point
90° CCW
(Right angle)
1. COORD.SYSTEM
2. INPUT METHOD : FULL TEMPLATE
3. ACTION METHOD :PROCESS TYPE
4. REMOTE METHOD:FIXED PLANE
5
.COMPARE METHOD
:
ALL
IN ONE INFO.
5.COMPARE METHOD :ALL IN ONE INFO.
6.REQUEST AIMING : OFF
7.EDM SETTINGS
8.ELEV. FACTOR
9. DUPLICATE PN CHK :OFF
1. COORD.SYSTEM
2. INPUT METHOD : FULL TEMPLATE
3. ACTION METHOD :PROCESS TYPE
4. REMOTE METHOD:FIXED PLANE
5
.COMPARE METHOD:ALL IN ONE INFO.
