[ENT] to view POINT SELECTION FROM the LIST screen.
Press [ENT] to view STATION POINT SETUP screen.
4.2 Station Orientation

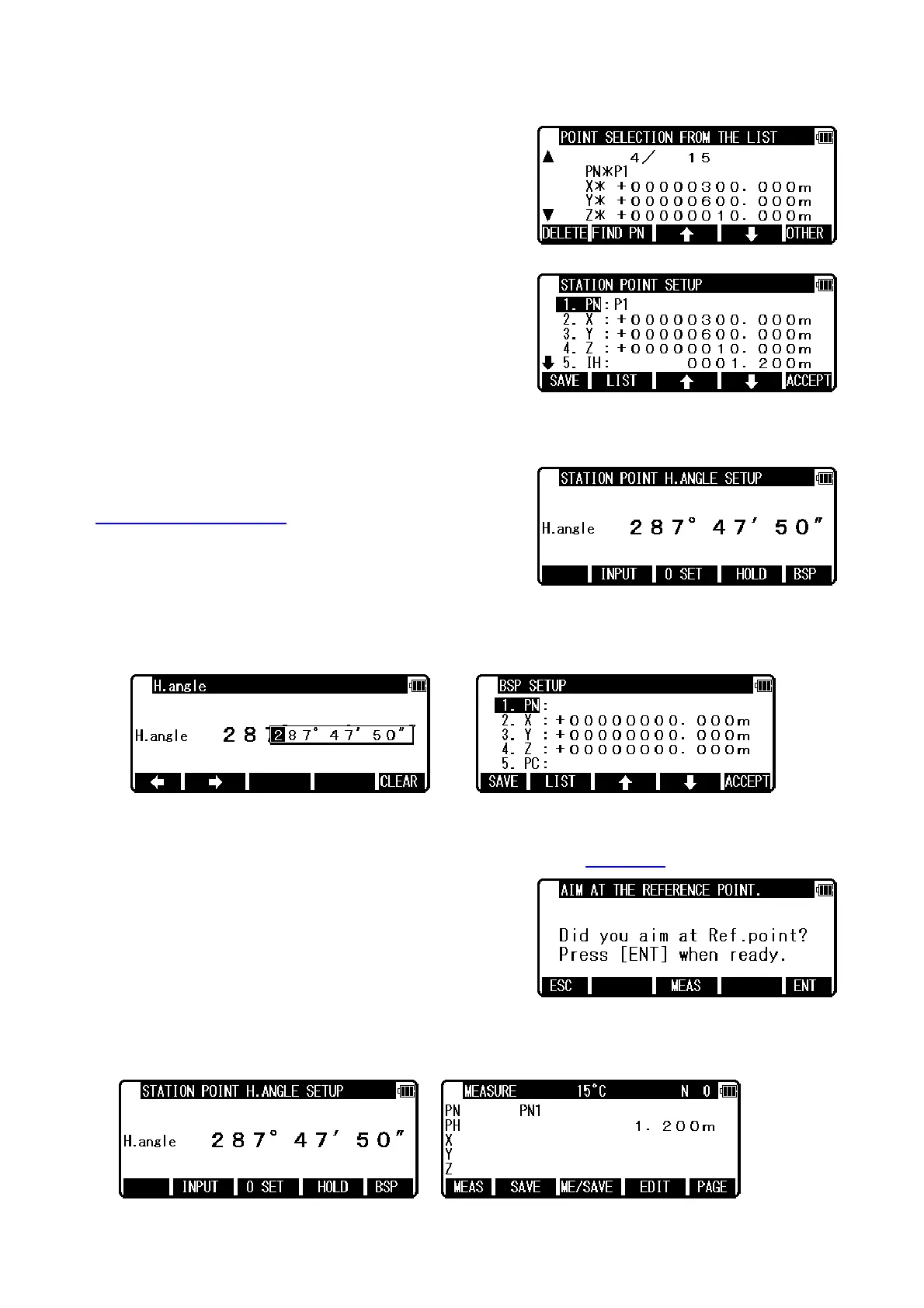

Press the [F1][ACCEPT] to view the STATION POINT H. ANGLE SETUP screen.
Please, note that the rotation of the “H.angle”
depend on the rotation setting of
“Coordinate axis definition
”.
4.2.1 Station orientation
Input the H. angle by pressing [F2][INPUT], [F3][0SET] and [F4] [HOLD] or Reference point
Coordinates by pressing [F1][BSP].
Pressing [F2][INPUT] Pressing [F1][BSP]
Press [ENT] to view the input window.
Press [ENT] after entering the Horizontal angle. The AIM AT THE REFERENCE
POINT screen is viewed when “1. ON” of “7.REQUEST AIMING” of “Preference
” is selected
and not viewed when “2. OFF” is selected.
In case of that BSP Coordinates are inputted,
this message is always viewed on the screen.
Coordinates display and Angle & Distance display
Press the [ENT] at the STATION POINT H. ANGLE SETUP
screen to view the MEASURE screen.
