If you want to calculate the direction angle, press [F5][INVERS] to jump INVERSE function.
Input SP as a start point and EP as a back sight point.
Result angle is set here automatically by pressing the [ENT] at the RESULT OF INVERSE screen.
Press [ENT] after aiming at the reference point.
Aim at the reference point and press [ENT] to view the MEASURE screen.
Measuring

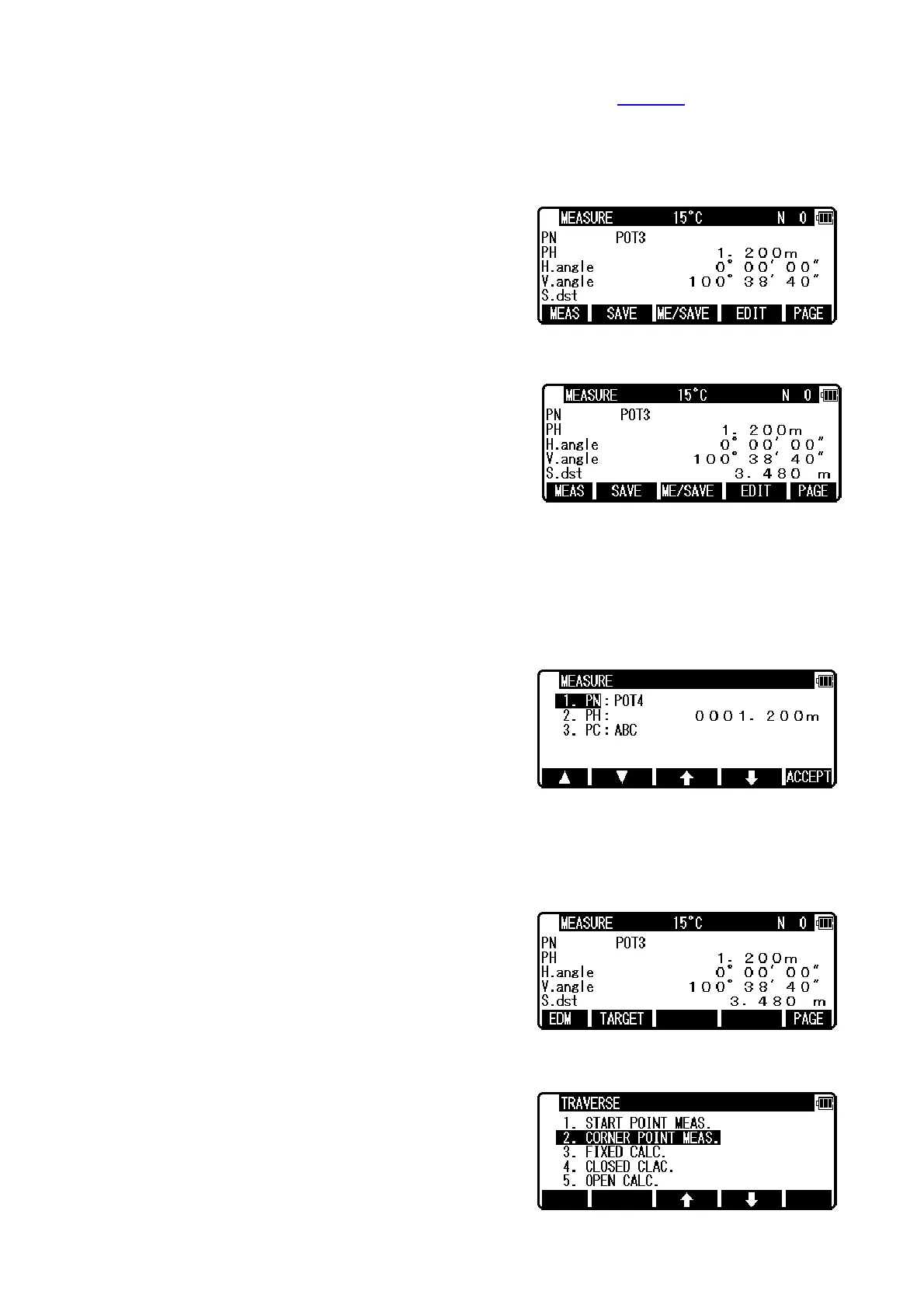

Aim at the Target point and press [F1][MEAS] to measure the distance.
Press [F3][ME/SAVE] to measure and save the measured data as sideshot point.
Press [F2][SAVE] to save the measured data as sideshot point.
Press the [F4][EDIT] to edit the PN, Point Name, PH, Prism Height and PC, Point Code. Press [ENT] to
view the each input window by pressing the up or down arrow key, and input your desired point
name or prism height or point code. Press the [F5][ACCEPT], if the current PN, PH and PC are
acceptable.
Press the [ENT] to save the measured data as corner point
If [ENT] is pushed more than twice at the one station, the last [ENT] point becomes next corner point.
Note
Please use [SAVE] [ME/SAVE] and [ENT] properly by sideshot and corner point.
Press [F5][PAGE] to view another menu.
11.2 Corner point measuring
Select 2.CORNER POINT to start measuring at corner
point.
