10 RDM

Remote Distance Measurement

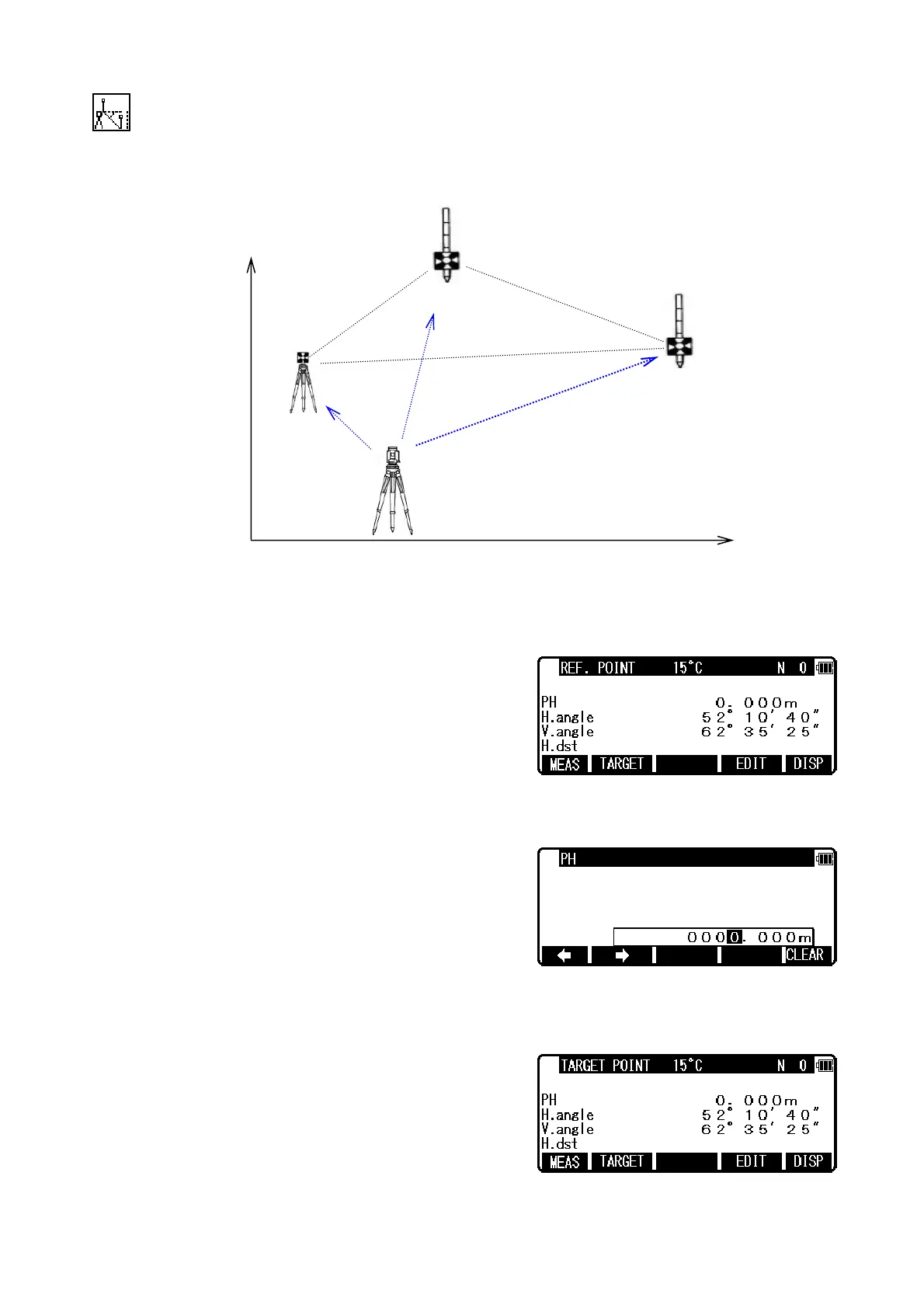

With RDM measurement, the Horizontal, Vertical and Slope distance and % of Slope between the

Reference point and the Target point are measured. The distance between Target 1 and Target 2 are

also measured. Any Target point can be changed to the new Reference point.

Press the [F4][VPM] of the PowerTopoLite screen to view the REF. POINT screen of the RDM function.

10.1 PH input

Press [F4][DISP] to to change the displayed distance.

Press [F3][EDIT] to input the PH, Reference point height.

10.2 Reference point - Target distance

Aim at the Reference point and press [F1][MEAS] to measure the Reference point.

It turns to TARGET POINT screen automatically.

Target 1

Target 2

Ref. P

Station Point
