4. MEASURE
An operator can measure the Foresight point Coordinates from the “Station point Coordinates and
Backsight Coordinates” or the “Station point Coordinates and Azimuth”, and can store the Point
name and measured Coordinates in the memory. When the Coordinates of the Station point and
Backsight point are already stored in the memory, the new Coordinates input can be omitted by
calling or searching from the point name LIST.
The point name is within 15 characters and the Coordinates are within 8 in integer and 3 in decimal
number. There are two Coordinates types of Rectangular and Polar Coordinates in this [MEASURE].
The Offset at the Target point is possible and the Remote measurement by aiming at any point is
possible as well when you select the Rectangular Coordinates.
An operator can perform the [MEASURE] function only when the Telescope is at the “ Face left
position”.
Select the Target type before performing the [MEASURE].
After measuring rectangular coordinates by [MEASURE] function of PowerTopoLite, it is possible to
display Angle and Distance by switching the [F3] key.
When Remote mode is selected, Angle and Distance are also calculated according to the coordinates
of the aiming point on real time.
When Offset mode is selected, Angle and Distance are also calculated according to the coordinates
where offset value is added.

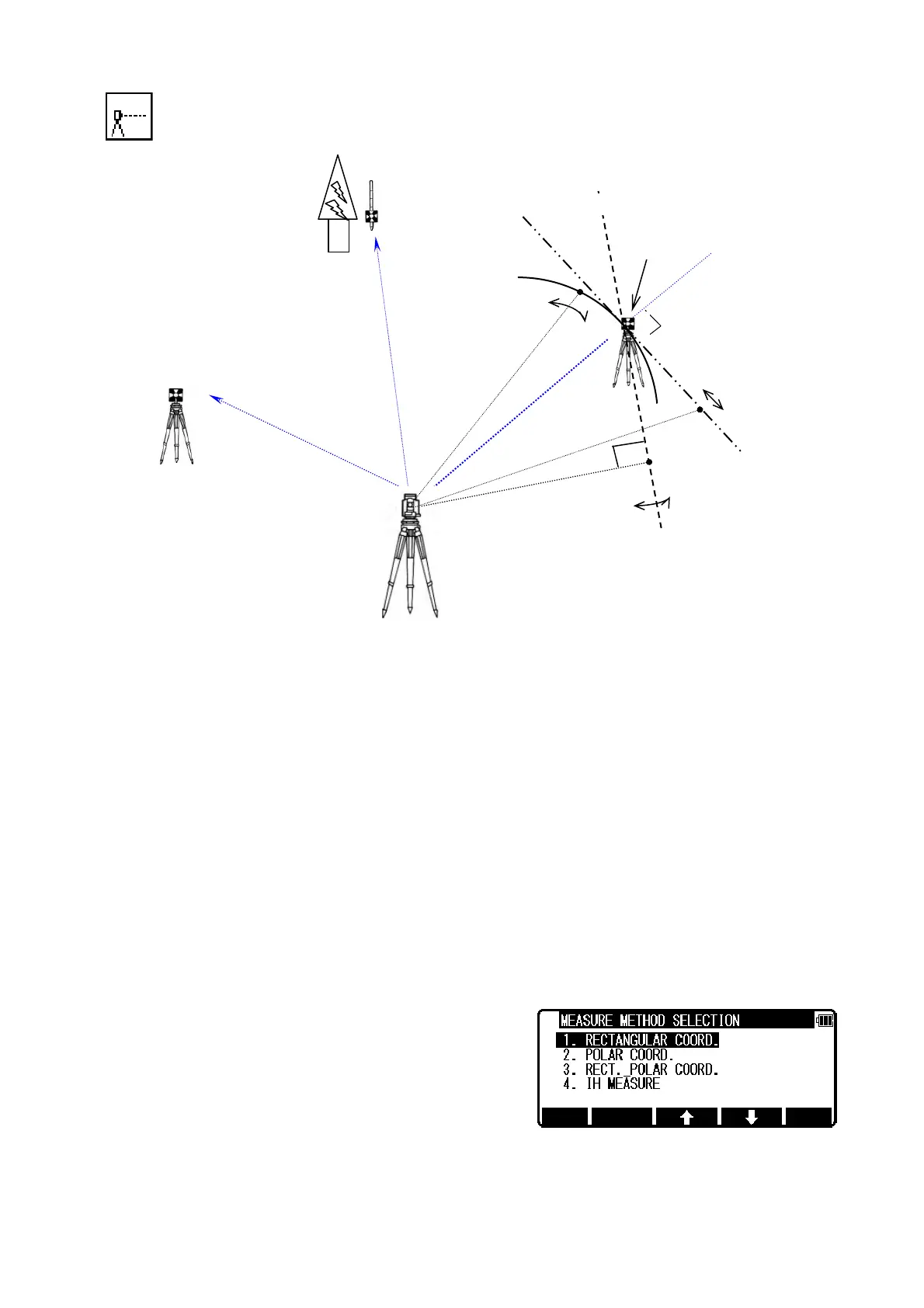

4.1 Station setup [By Rectangular Coordinates]
Press [F2][MEAS] of the PowerTopoLite screen to view the
MEASURE METHOD SELECTION screen.
Backsight P.
Reference
1.Cylinder
2.Fixed
lane
.R
Station
Offset
Remote
To Next Page
