91
z DISP.# AXIS: BASIS DIRECT., RIGHT ANGLE, or HEIGHT is selected when data is transferred
between the TS and PC. (cf. “134.21 Coordinate axis definition
”)
They are used for matching coordinate system between definition in the instrument and
definition in the external device when they are different. However, it is necessary to match the
definition of the “Coord. Axis” between settings in “Communication setup
” and settings in
“Coordinate axis definition
” when same coordinate systems are used.
z Factory default setting of RECEIVING
1.BAUD RATE: 121300
2.DATA LENGTH: 8
3.PARITY BITS: NIL
4.STOP BITS: 1
5.SIGNAL CONTROL: ON
6.XON/XOFF: ON
7.PROTOCOL: ON
8.RECORD DELIMETER: CR+LF
9.DISP.1 AXIS : BASIS DIRECT
10. DISP.2 AXIS: RIGHT ANGLE
11. DISP.3 AXIS: HEIGHT
12. ROTATION: CW
13.3.2 Sending data setting

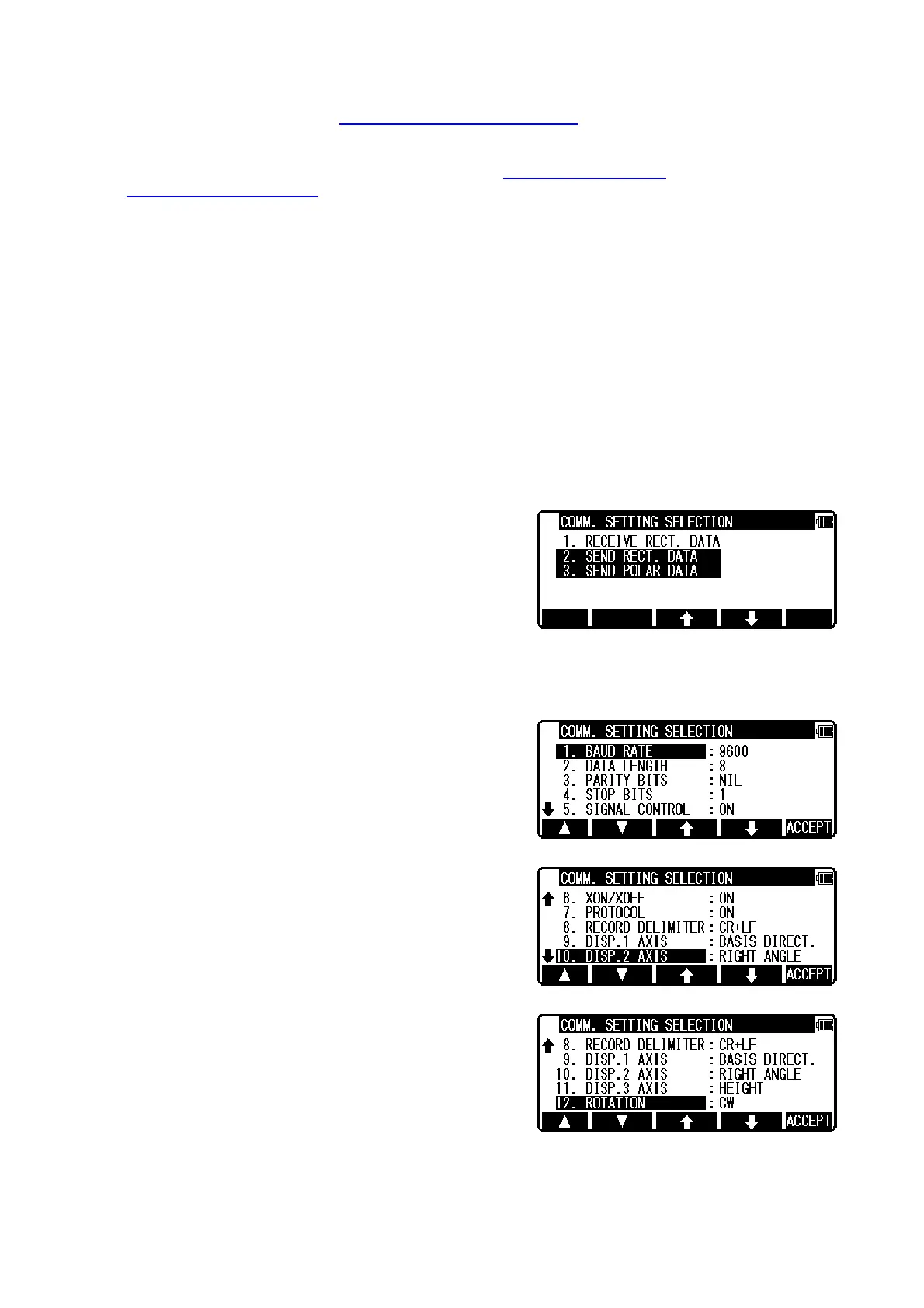

Select the 4. COMMUNICATION SETUP and press [ENT] to view the COMM. SETTING SELECTION.
[2. SEND RECT. DATA]
Select the 2. SEND RECT. DATA and press [ENT] to view the following screen. Press [ENT] to open
the selection window.
Select each setting and press the [ENT].
Press [ACCEPT] to enter when all selections are finished.
z DISP.# AXIS: BASIS DIRECT, RIGHT ANGLE, or HEIGHT is selected when data is transferred
