24
4. TURNING THE POWER ON
4.1 Turning the Power On and Off
Pressing the [POWER] key shows the initialscreen.(The [POWER] key is also used to turn
the power off.)After a few seconds, it turns to Electronic vial screen. Move the vials to center
by adjusting the leveling screws.Pressing the [ENT] key views the angle and distance
measurement screen.
The Auto Power Off function will automatically turn the power off if no operations are
performed for approximately 10 minutes. (Factory default setting)
The [POWER] key is controlled by software in the instrument while it is working, and this
key is valid only when turning off causes no problem.
The value displayed when the power was last time turned off will be displayed for the
horizontal angle. If this horizontal angle is not needed, please perform horizontal angle
0 SET.
For details on resetting the horizontal angle 0 See "5-2".
For details on changing the horizontal angle from
clockwise to counterclockwise See "5-6".
For details on measuring the vertical angle See "5-5".
For details on distance measurement See "6. ".
For details on the automatic power-off function See "8-9 ".
4.2 Adjusting LCD contrast

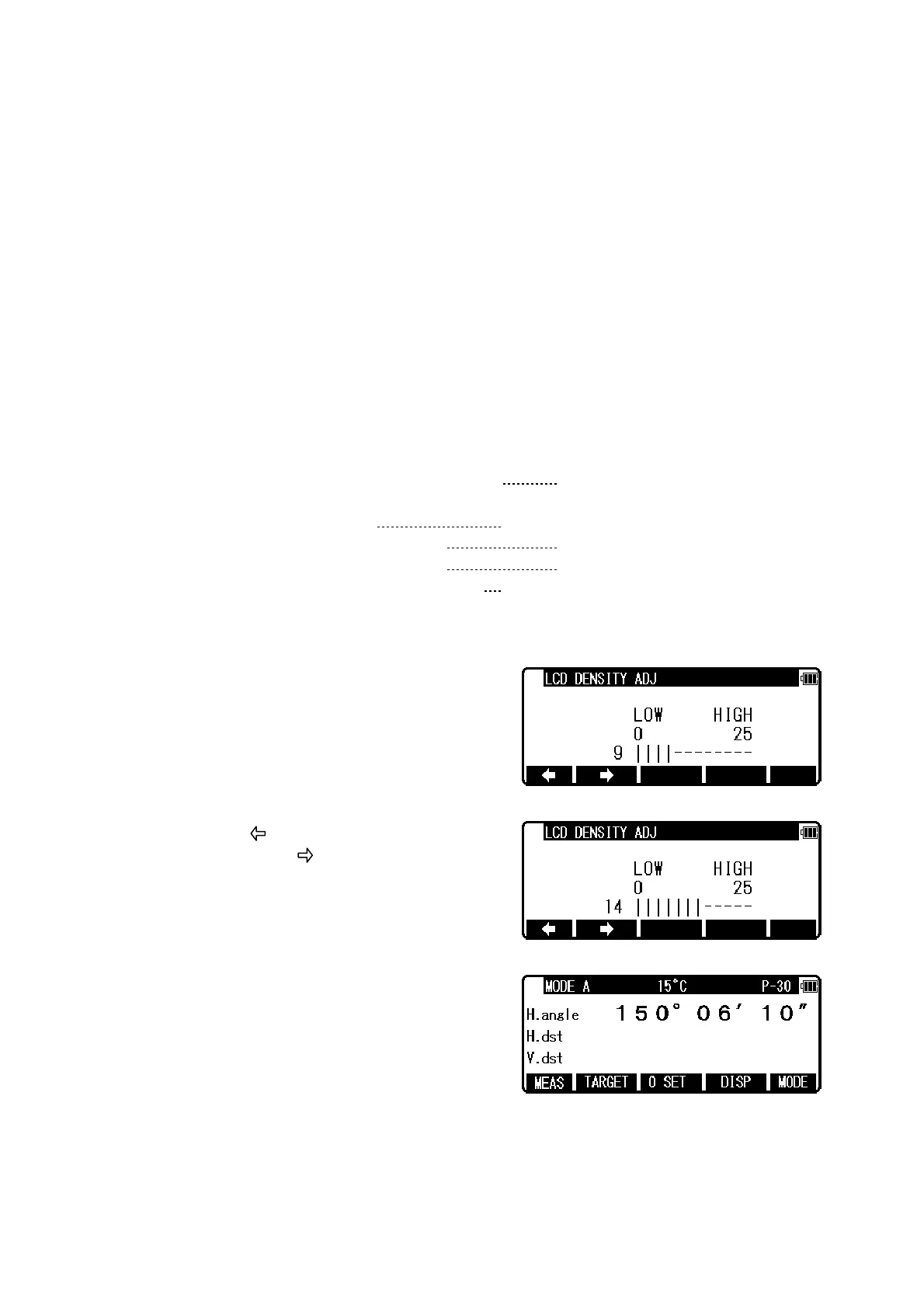

Press [F4] while holding down the Illumination key
to access the screen for adjusting LCD contrast.
Pressing the [F1] [ ] will lighten the contrast,
while pressing the [F2] [ ] will darken the
contrast.
Press [ENT] to exit adjustment mode and return to
the previous screen.
• Pressing the Illumination key views the [F3] [RETICLE], [F4] [LCD] and [F5] [ILLU].
• LCD contrast may be adjusted as necessary at any time.
• The contrast may be adjusted to any one of 25 levels.
