12
1.2 Unpacking and packing
[Unpacking the Instrument from the case]
① Set the case down gently with the lid facing upwards.
② Open the latches while pressing down on the lock (safety mechanism)
and open the lid of the case.
③ Remove the instrument from the case.
[Packing the instrument in the case]
① Make sure the telescope is fairly levelled and lightly tighten the telescope clamp screw.
② Line up the housing marks (round yellow marks on the instrument) and tighten the upper
and lower clamp screws.
③ With the housing marks are facing upwards, set the instrument gently in the case without
forcing it. Close the lid to the case and secure the latches.
1.3 Standard equipment
• Instrument
• Carrying case
• BP02 battery
• BP03/AC01 charger
• Plumb bob
• Hexagonal wrench
• Rain cover
• CD-ROM (Basic operation & Special Functions manual)
1.4 Removing and attaching the Battery

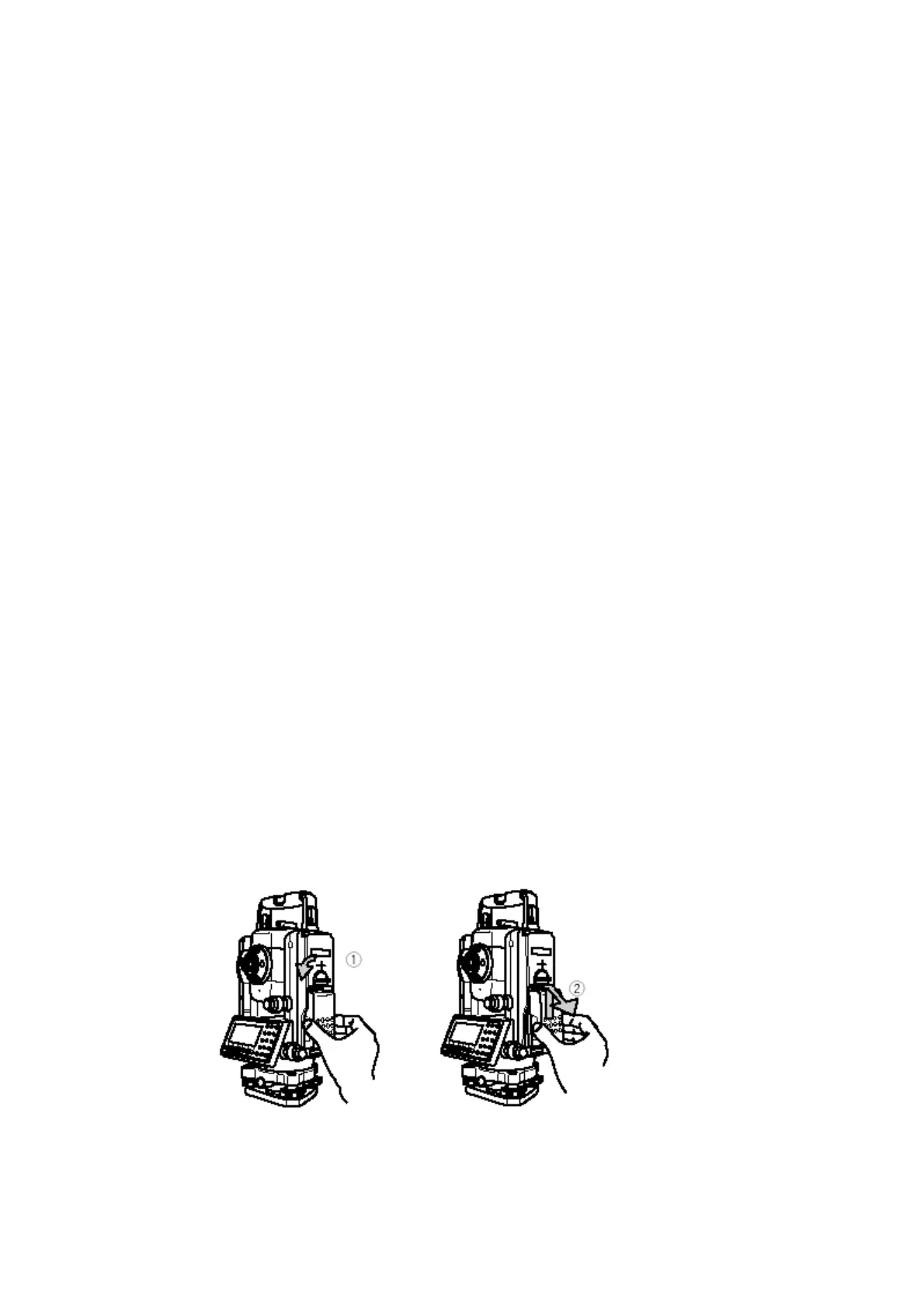

[Removing the Battery]
① Rotate the knob above the battery pack counter clockwise.
② Lift up the battery pack and remove it from the instrument.
·Be absoulutely sure to turn the power off when removing the battery as removing the
battery while the power is still on may result in damage to the instrument.
[Attaching the Battery]
