29

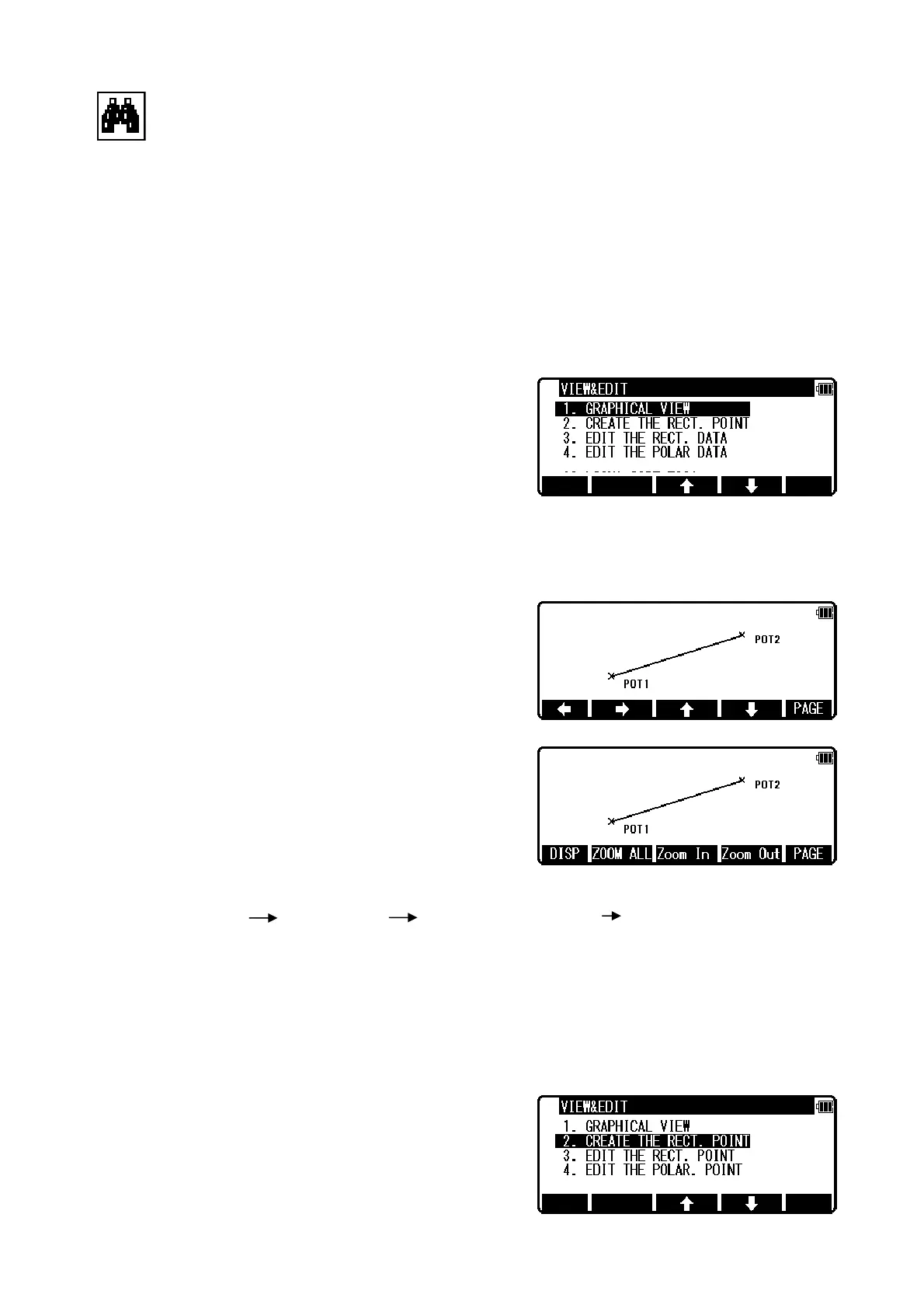

5. VIEW AND EDIT
Stored data are displayed graphically, and the edit of the stored data is possible by this Function.
The Z Coordinate (the height) of the point is ignored in the graphical display of the point data.
Four menu items are available:
z GRAPHICAL VIEW
z CREATE THE RECT. POINT
z EDIT THE RECT. DATA
z EDIT THE POLAR DATA
5.1 Graphical View
From the PowerTopoLite screen, press [F3][VIEW] to view its screen.
Press [ENT] to view the GRAPHICAL VIEW screen.
Points, Point names and their Graphics are displayed. The graphic is moved by pressing the arrow
keys.
The Graphics are not displayed when points are not stored.
Two or more points are needed.
Press the [F5][PAGE] to view another menu.
[DISP]: Each Graphic is displayed as following order by pressing this key.
Points Points + Line Points + Points names Full
[ZOOM ALL]: Return to the ordinary Graphics size
[ZOOM IN]: Enlarge the Graphics size.
[ZOOM OUT]: Reduce the Graphics size.
5.2 Create the Rectangular Point
