Pentax R-200 Series User Manual

28

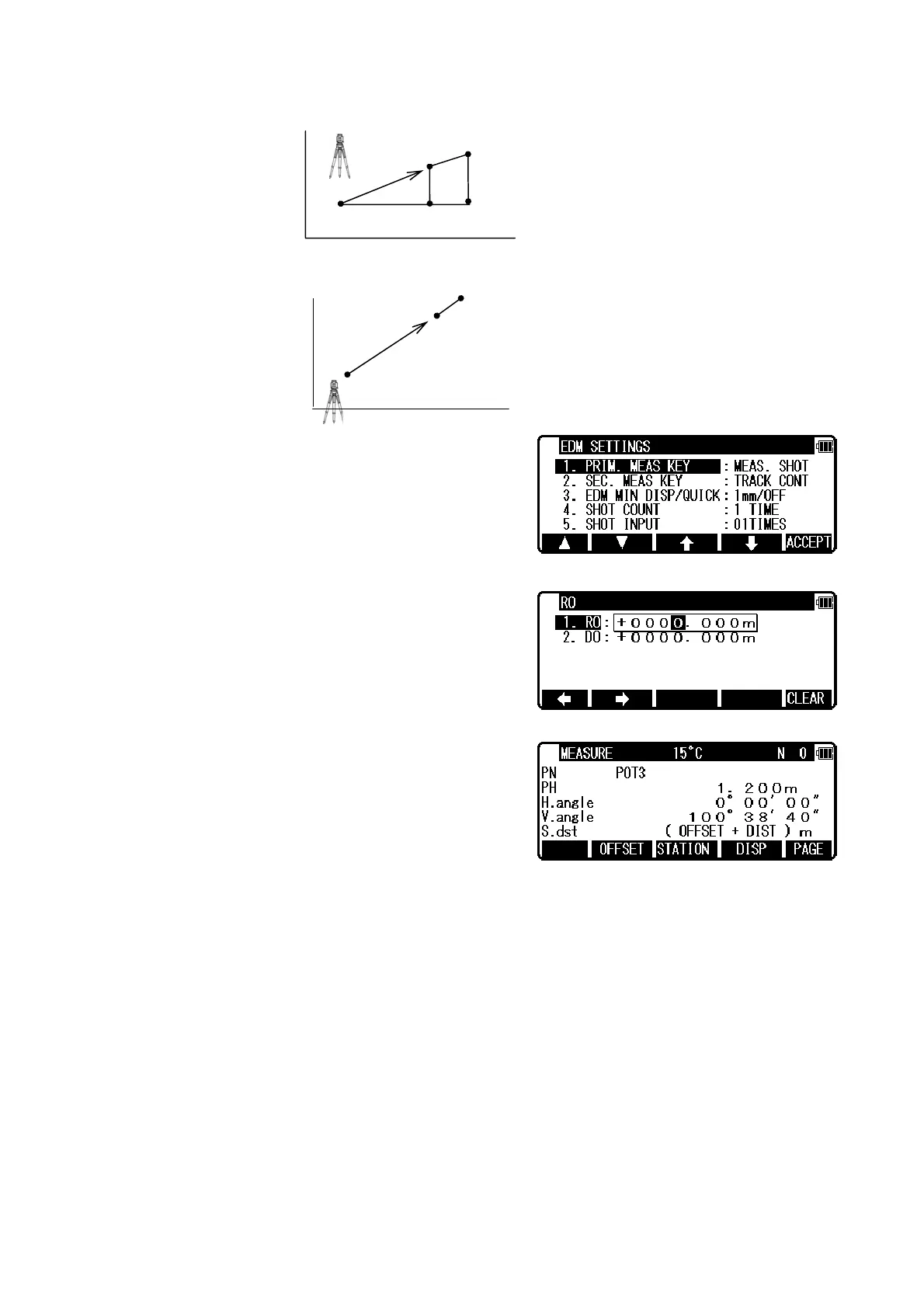

Offset P: Offset Point
DO: Distance Offset ( Along the line of measurement, thus along the slope )
Press the [F4][OFFSET] to view the OFFSET screen.
Offset enables you to work with Offset. The following
offset are available.
Press [ENT] to view the offset input window. Input the RO
offset value by pressing each keys.
DO values are inputted in the same manner.
Press [ENT] and then [ACCEPT] to view the MEASURE
screen. The S.dst (slope distance) is adjusted by inputted
offset value.
The input value of offset is cleared when you save the surveying point and step forward to the next
surveying point.
SP
Z
RO
SP
X,Y
P
Offset P
Z
DO
X,Y
Offset P
P
