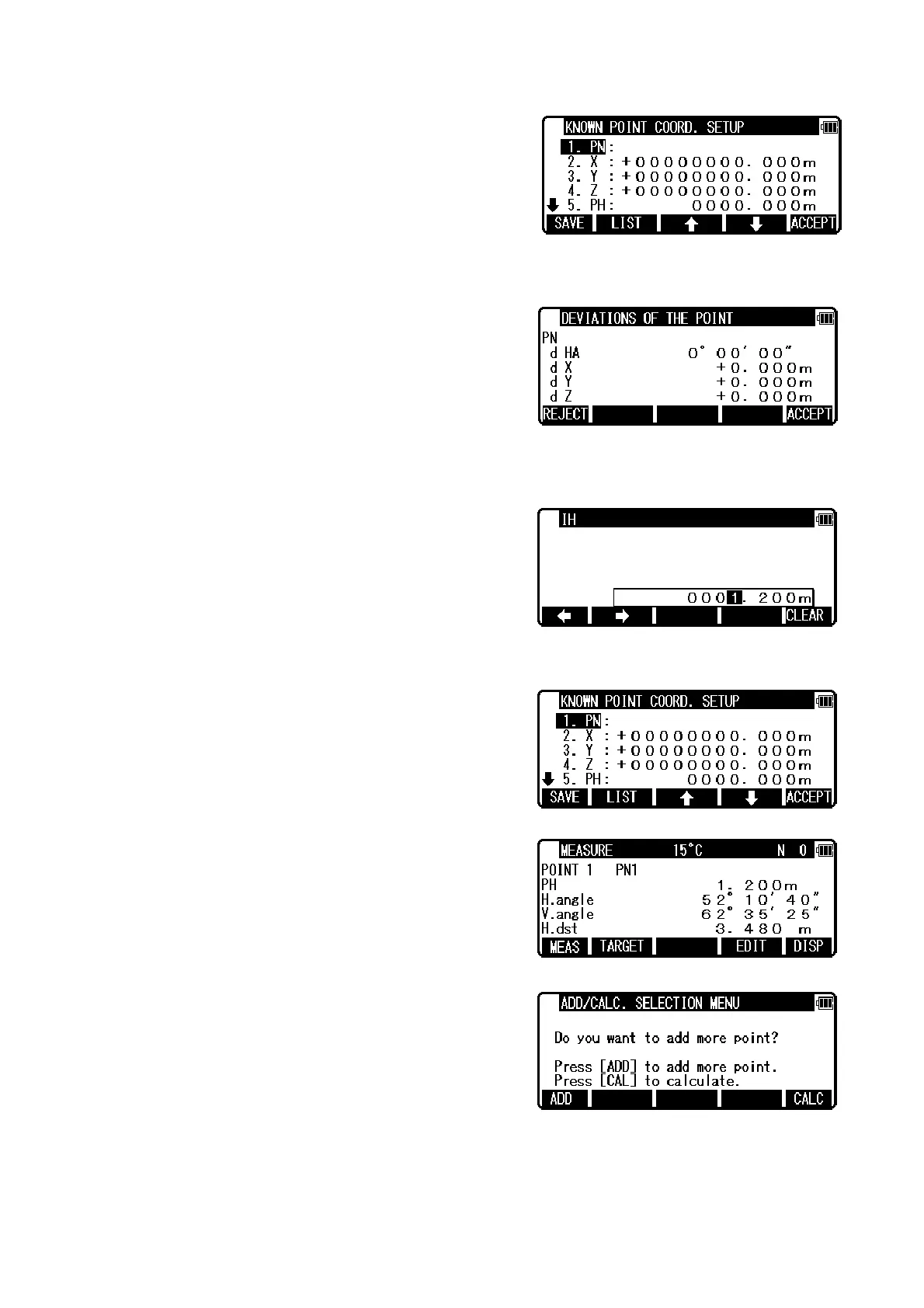

Press [F1][NEXT] to view KNOWN POINT COORD. SETUP screen.
DEVIATIONS OF THE POINT: Four points or more points are needed to view this.
Press [ENT] to view the DEVIATIONS OF THE POINT screen. The deviations of X, Y and Z coordinate
of each point are displayed. For each point, you can decide if you want to accept or reject the point.
PN: Current point number
dX: Deviation on the X value
dY: Deviation on the Y value
dZ: Deviation on the Z value
6.2 Stationing by two known points
(One point must be measured at least to gain the Station Coordinates.)
Press [F4][FREE] of the PowerTopoLite screen to view the IH input screen.
Input the IH value.
Aim at the Point 1.
Press [ENT] to open the PN, X, Y, Z, PH and PC input window and input each value.
Then, press [ENT] to view the MEASURE screen.
Press [MEAS], and then [ENT] to view the ADD/CALC.
SELECTION MENU screen.
Press [F1][ADD] to view the SET UP THE KNOWN POINT screen.
In the same manner, aim at the Point 2.
Press [ENT] to open the PN, X, Y, Z, PH and PC input window and input each value.
To Next Page
