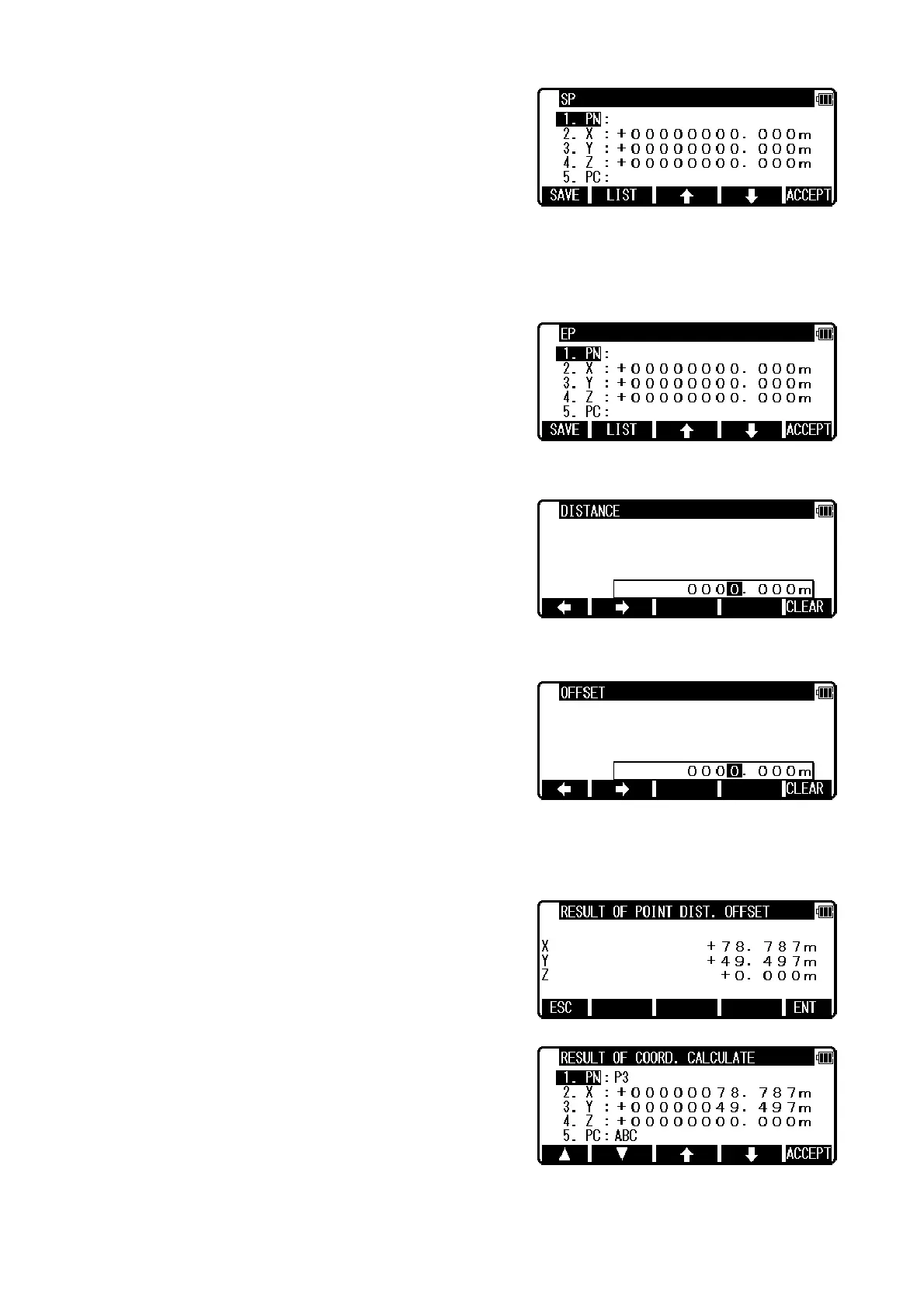

Select 1. SP and press [ENT] to view SP screen.
Input PN ( Point Name ), X, Y, Z, and PC ( Point Code ) of SP point or import from the memory of
rectangular coordinate as SP by [F2][LIST].
If you finish the input of SP value, press [F5][ACCEPT]. Then you go to EP input screen.
Input EP data like input of SP. If you finish the input of EP, press [F5][ACCEPT]. Then you go to
DISTANCE input screen.
Input DI ( Distance from SP to point on the line ). If you finish the input of DI, press [F5][ACCEPT].
Then you go to OFFSET input screen.
Input OD ( Offset distance from the line to offset point ). If you finish the input of OD, press
[F5][ACCEPT]. Then you go to RESULT OF POINT DISTANCE OFFSET screen.
You can see the coordinates of offset point from the line.
Press [F5][ENT] to save the coordinates of offset point.
The PN, X, Y, Z and PC
are viewed and can be edited.
If all items are OK, press [F5][ACCEPT] to save them.
