11–12
Seat
section
Tapered section

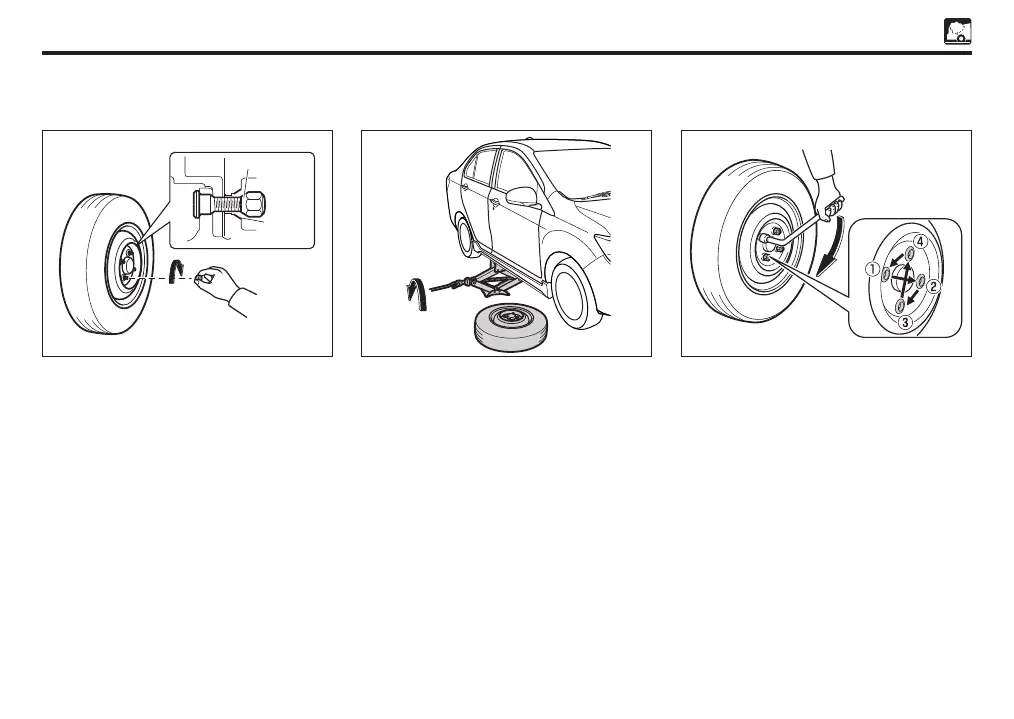

5. Reinstall all wheel hub nuts and tighten
them until the wheel is no longer loose.
Make sure the taper portion of the hub
nuts are securely installed in the holes.
Do not tighten them firmly yet.
CAUTION
• Do not oil the hub nuts. They may loosen
while the vehicle is moving.
• The bolts and nuts may be damaged if
they are overly tightened.
6. Insert the jack handle into the worm shaft
of the jack and turn it counterclockwise
to lower the vehicle.
7. Tighten the wheel hub nuts securely in
the diagonal order across the wheel.
Tightening torque: 88.3 - 117.7 N;m
(65.1 - 86.8 ft-lb, 9.0 - 12.0 kgf-m)
CAUTION
Do not tighten the hub nuts with other
tools or by foot.
It may damage the thread.
After driving 1,000 km (600 miles), check
and confirm that the wheel hub nuts are tight.
