9 Preparation
All regulations and notes in this Service Manual must be observed!
Special attention must be paid to the safety regulations!
All setting-up work must only be carried out by personnel with the appropriate
training!
9.01 Inserting the sealing tape
The sealing tape real holder must be adapted to the inner diameter of the sealing tape reel:
● For small inner diameters turn the front disk 1, so that the small disk 2 is positioned op-
posite holder 3. The sealing tape reel can be fi tted to the holder directly.
● For large inner diameters turn the front disk 1, so that the large disk 2 is positioned oppo-
site holder 3. Slide fi tting 4 onto holder 3 and push the sealing tape reel onto it.
When the sealing tape unwinds it should not touch the inner wall of the sealing
tape reel holder.
9.01.02 Adjusting the sealing tape brake
● Adjust the sealing tape brake with nut 5 so that the sealing tape reel cannot continue mo-
ving, but the sealing tape can be drawn off rapidly.

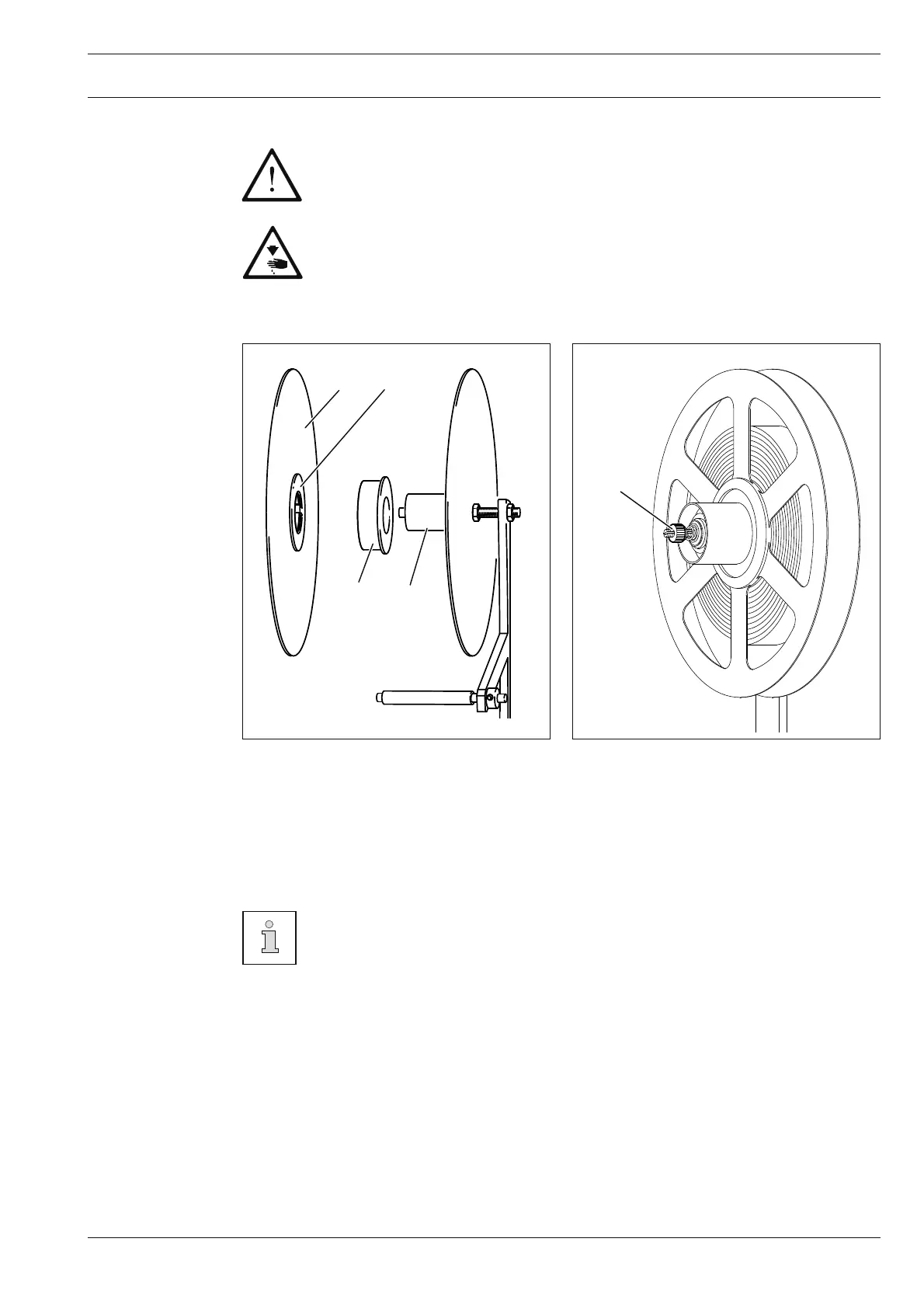

Fig. 9 - 02
100-014
Fig. 9 - 01
5
1
2
3
4
