13.12.05 Errors when switching outputs

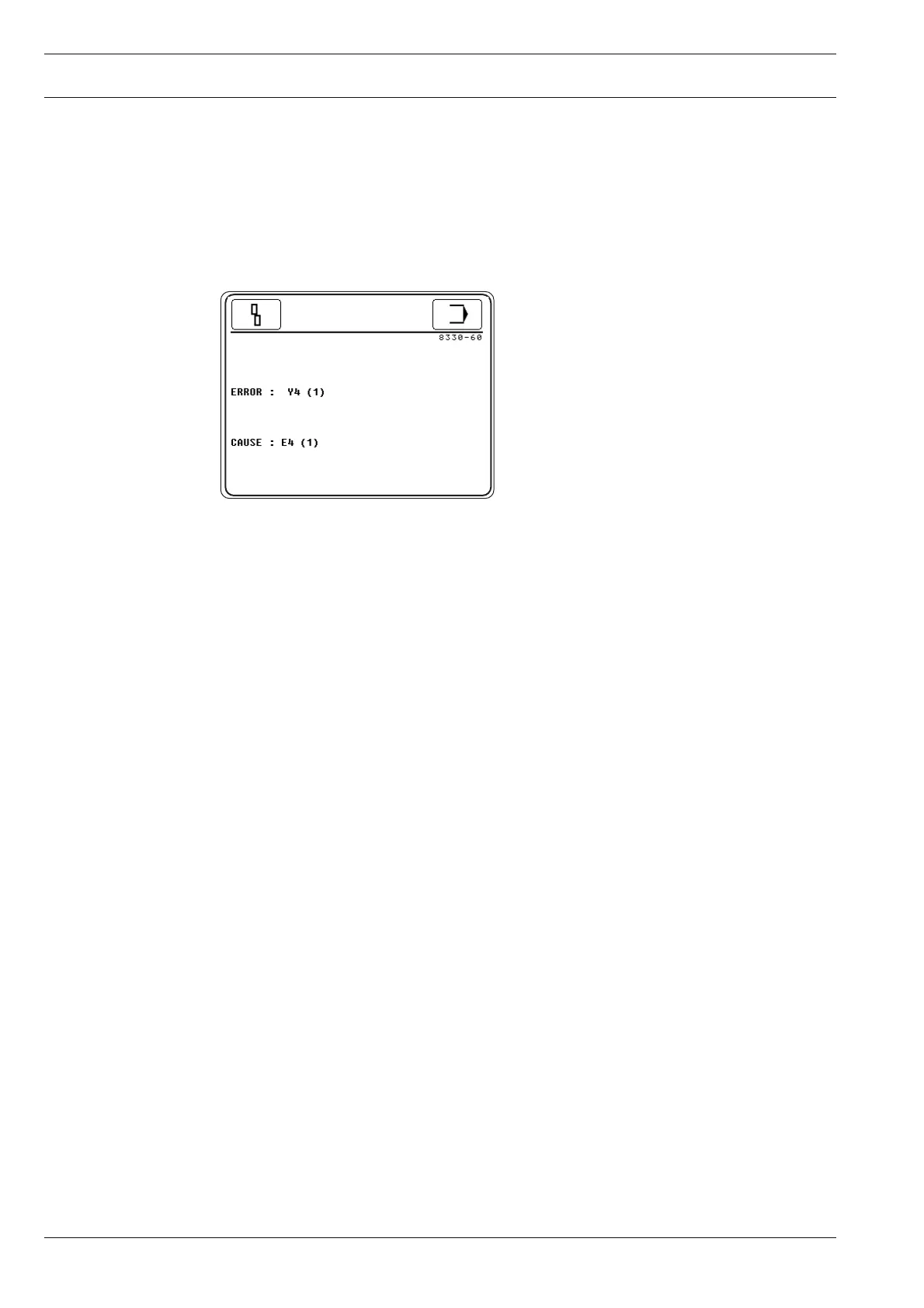

If an error occurs when switching outputs, the appropriate output is displayed with the
desired switch status. In this case (0) means, that the output should be switched off; (1) me-
ans that the output should be switched on.
The cause of the error is also displayed. In the following example this means that an error
occurred when switching on output Y4, because the input E4 was not activated.
13.12.06 Examples of errors and causes
Error: Y1(1) Cause E1(1)
The close feed rollers function is defective
Actual status: Feed rollers are closed
The motion was too slow
-> Incorrect setting of the exhaust air throttle on counter cylinder side
Switch E1 signals incorrect status
-> Incorrect setting of switch E1
-> Switch E1 defective, wire to E1 defective
Actual status: Feed rollers are open
During closing there was an object thicker than 8 mm between the rollers
-> Safety shut-off, no error
The feed rollers did not move down
-> Valve Y1 defective, wire to valve defective
-> Incorrect setting of the exhaust air throttle on counter cylinder side
