13.06 Changing the temperature sensor
Wait until the heating element has cooled down! Danger of burns!
Disconnect the mains plug!
Danger from electric voltage!
● Disconnect plug 1.
● Remove nut 2 together with the temperature sensor 3.
● Attach the new temperature sensor 3 together with new nut 2.
● Slide temperature sensor 3 as far into the hot air tube as possible and fi x it in this positi-
on by tightening nut 4.
Requirement
The temperature sensor 5 should be inserted as far as possible into the hot air tube.

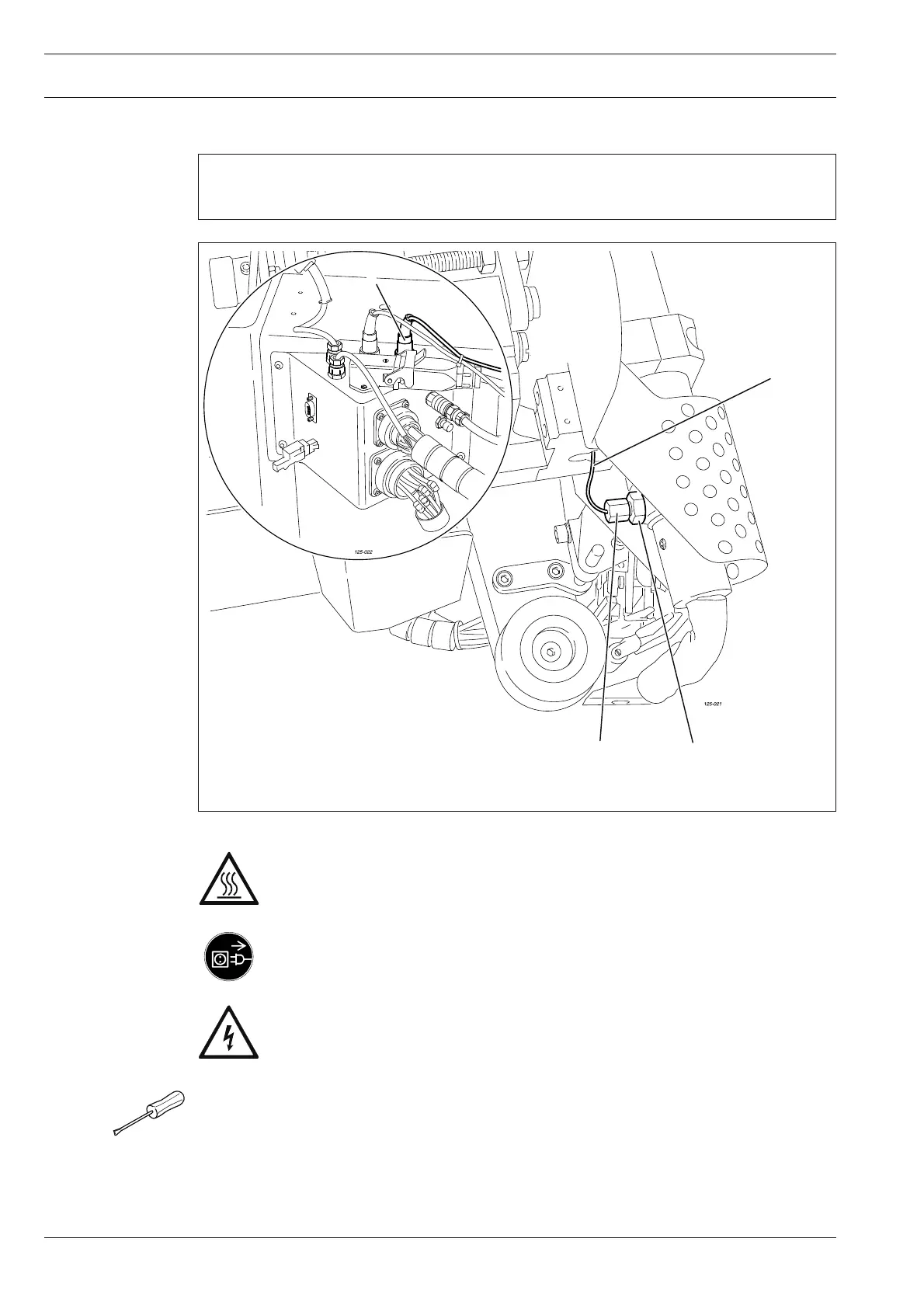

Fig. 13 - 06
2
3
4
1
