Adjustment
75
13.05 Changing the heating cartridge
Wait until the heating element has cooled down! Danger of burns!
Disconnect the mains plug!
Danger from electric voltage!
● Loosen the cable screw 1.
● Remove cap 2 (screw 3).
● Remove screw 4 and loosen screw 5 (underneath).
● Pull out socket 6 together with the heating cartridge 7.
● Remove heating cartridge 7 from socket 6.
● Installation takes place in the reverse order, taking care that screw 5 must only be
tightened slightly (max. 1 Nm).

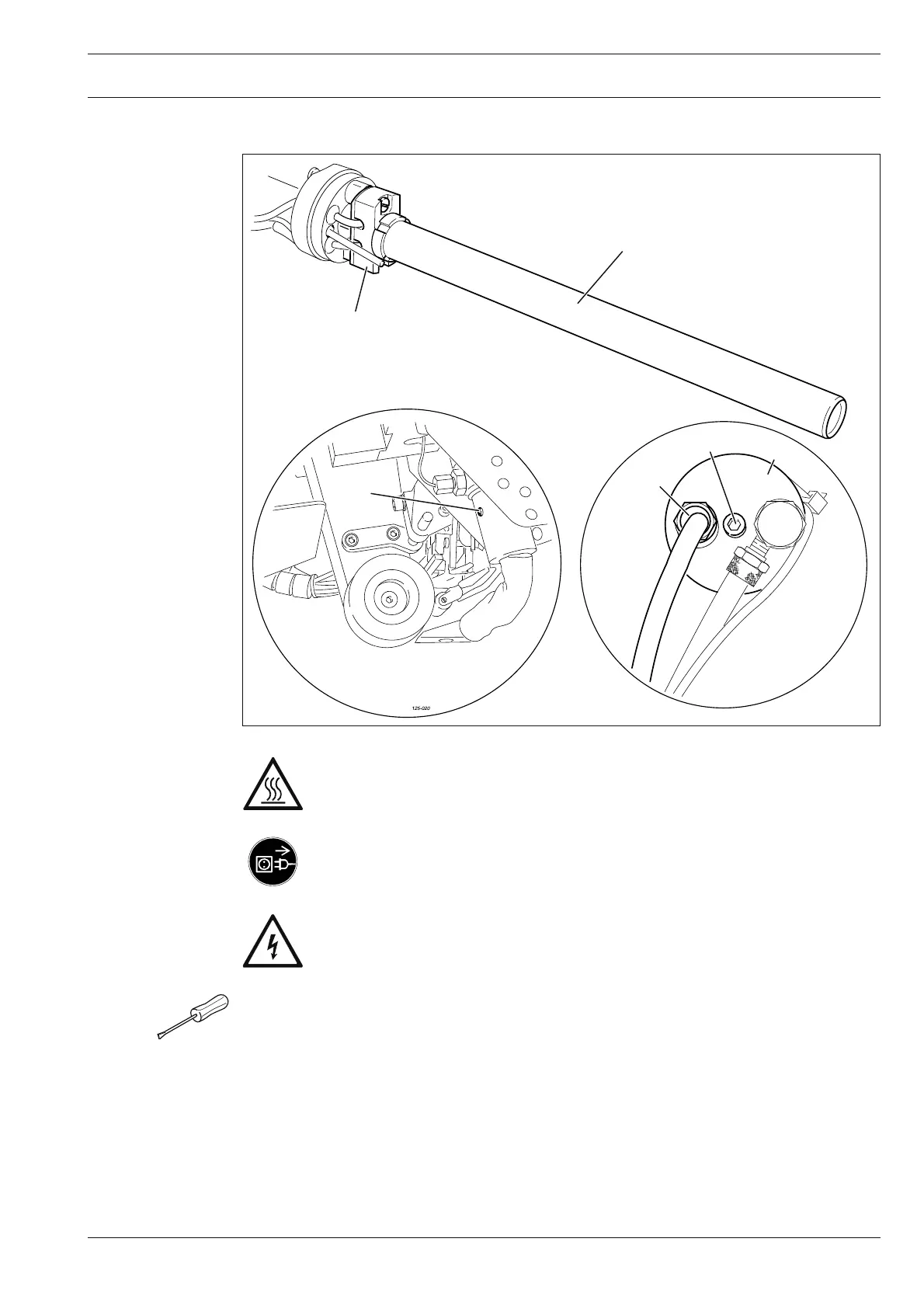

Fig. 13 - 05
113-048
1
3
2
6
7
4,5
