Pfaff 8330 User Manual

Adjustment
74
● Switch on the machine and set the sealing temperature to its minimum value.
Let the heating element cool down!
Danger of burns if the heating element is touched!
● Call up the input menu.
● Position the heating element.
● Adjust hot air nozzle 1 (screw 2) in accordance with the requirement.
● Check the height setting of the hot air nozzle, see Chapter 13.04.02 Adjusting the
height and the feed roller clearance.
● Switch off the machine.

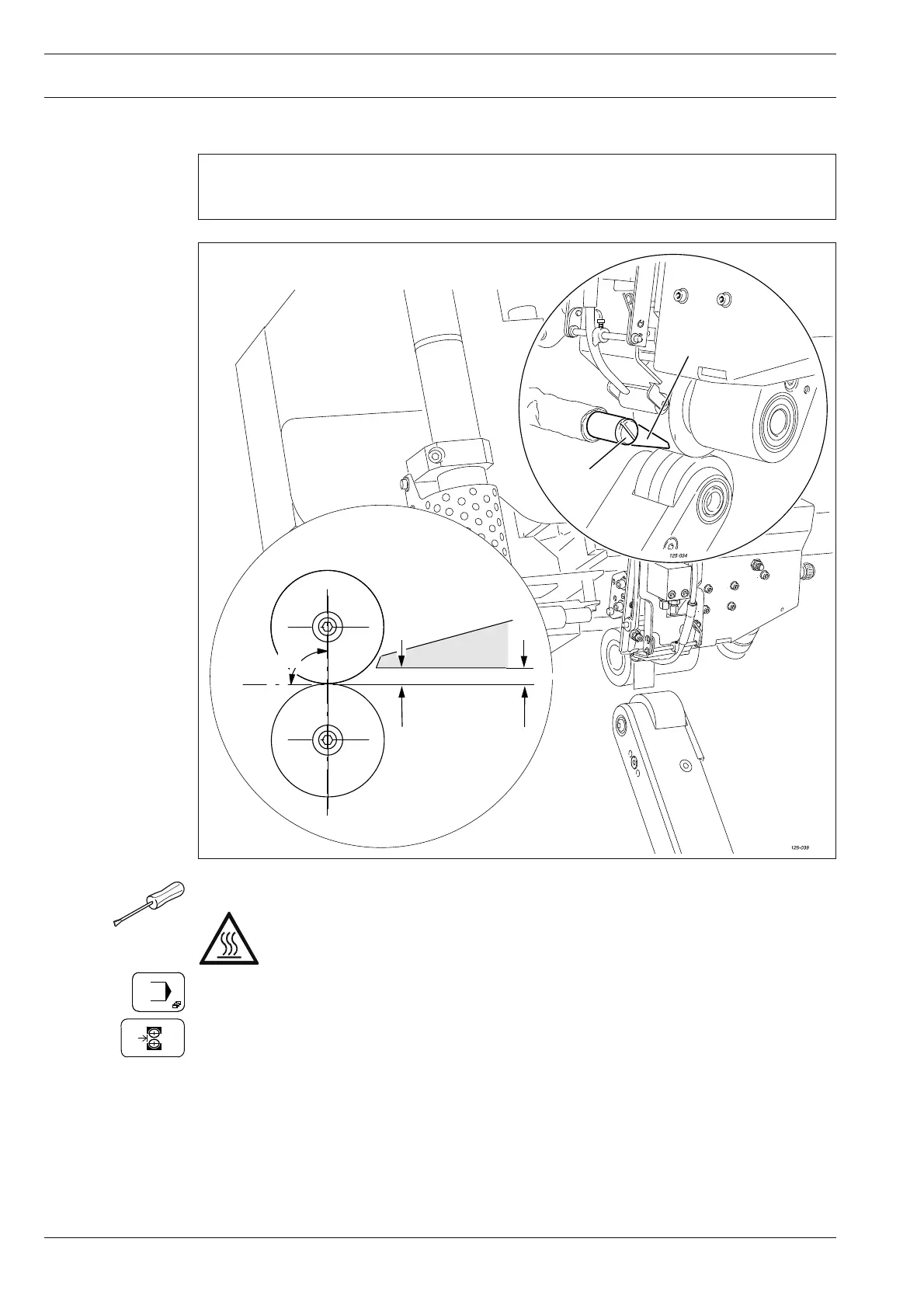

Fig. 13 - 04
13.04.03 Setting the angle
Requirement
Hot air nozzle 1 should be aligned as shown in the blow-up in Fig. 13-04.
90°
x
y
x = y
1
2
