Adjustment
73
● Switch on the machine and set the sealing temperature to its minimum value.
Let the heating element cool down!
Danger of burns if the heating element is touched!
● Call up the input mode.
● Position the heating element.
● Adjust screw 1 (clamp screw 2) in accordance with requirement 1.
● Adjust screw 3 (clamp screw 4) in accordance with requirement 2.
● Switch off the machine.
13.04.02 Adjusting the height and the feed roller clearance
Requirement
1. The height adjustment of not air nozzle 5 depends on the material, and the standard
setting is centred to the feed rollers.
2. There should be clearance of ca. 1 -2 mm between hot air nozzle 5 and the workpiece.

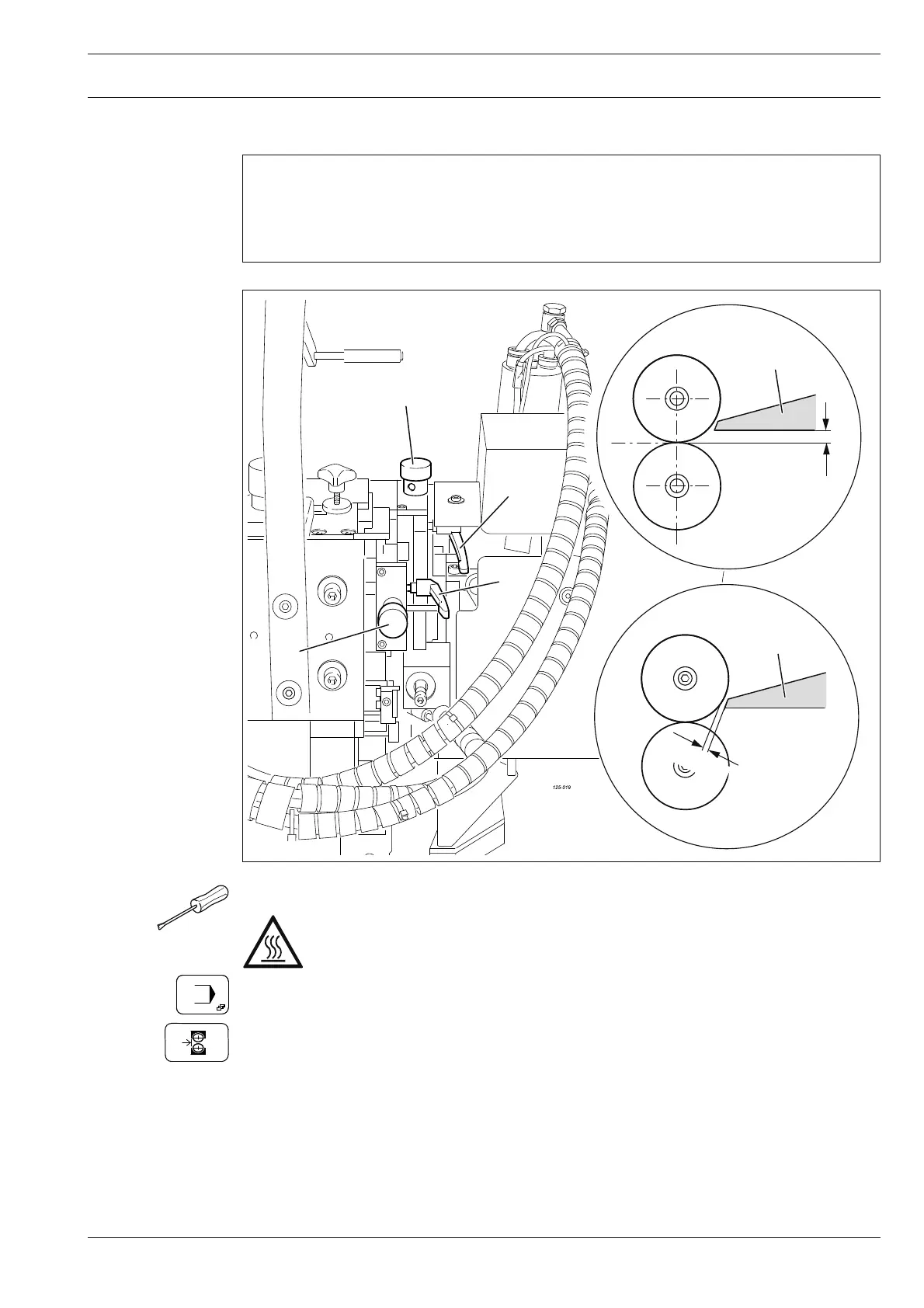

Fig. 13 - 03
1
2
3
4
5
1 - 2 mm
5
5 - 12 mm
