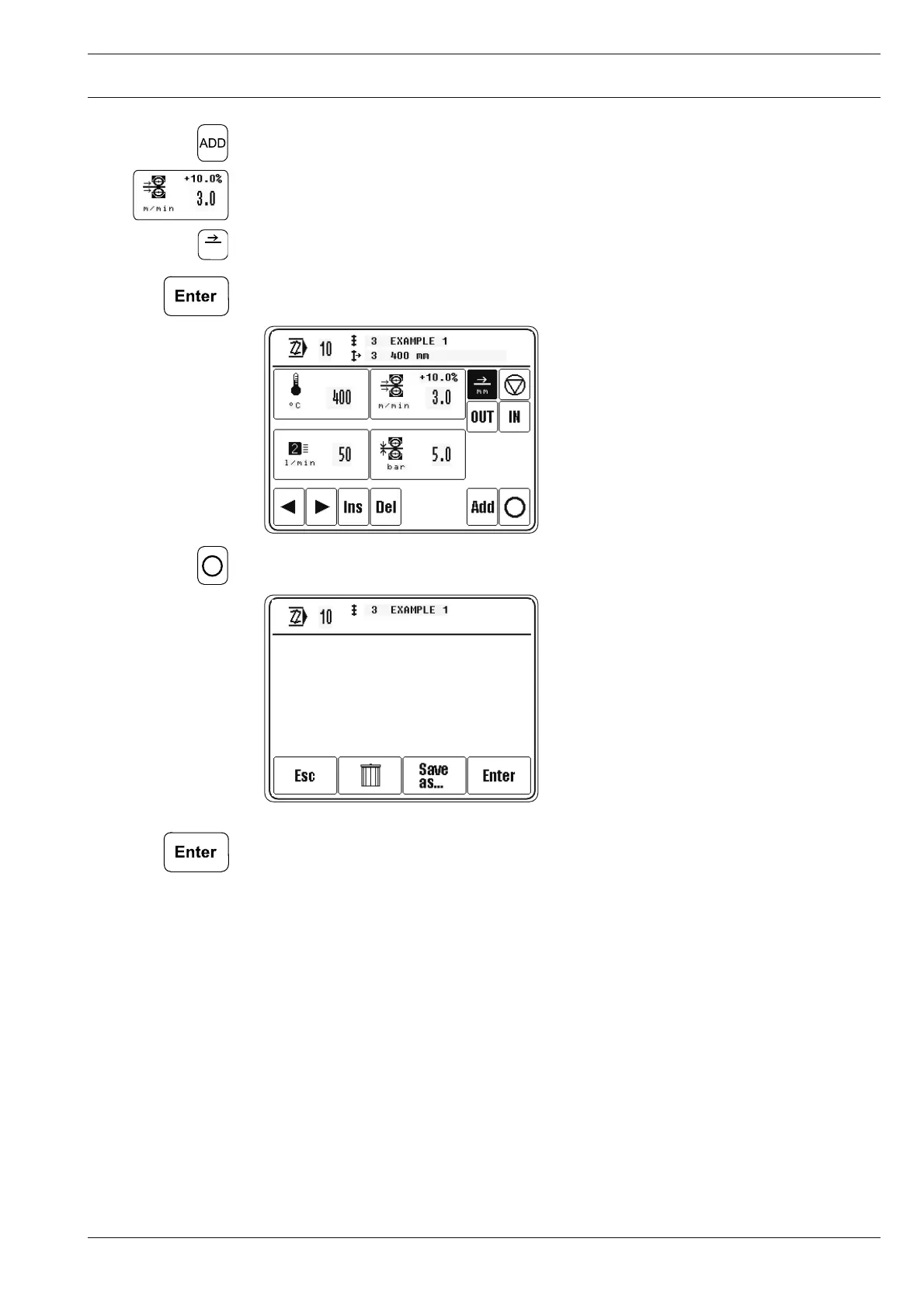

Heat sealing
49
●
Add seam z
one
3
.
●
Reset the v
alues for sealing speed and speed dif
ference.
●
Activ
ate the switc
h to another z
one with the value "
40
0
" as seam length.
●
Conclude the input of seam zone
3
.
●
Conclude programming.
●
Reconfi
rm the sealing program input.
The programmed sealing function is called up to process the created sealing program.
mm
48
50
Table of Contents
Instruction Manual
1
Table of Contents
3
Safety
6
Directives
6
General Notes on Safety
6
Safety Symbols
7
Important Notes for the User
7
Operating and Technical Staff
8
Operating Staff
8
Technical Staff
8
Danger
9
Proper Use
10
Specifi Cations
11
Disposal of Machine
12
Transportation, Packing and Storage
13
Transportation to Customer's Premises
13
Transportation Inside the Customer's Premises
13
Disposal of Packing Materials
13
Storage
13
Explanation of Symbols
14
Controls
15
Summary of Controls
15
Main Switch
16
Pedal
16
Adjustment Wheel for the Roller Clearance
17
Lift Limiter
17
Control Panel
18
Installation and Commissioning
19
Installation
19
Adjusting the Table-Top Height
19
Fitting the Sealing Tape Reel Holder
20
Commissioning
20
Switching the Machine On/Off
21
Selecting the Language and Units
22
Preparation
23
Inserting the Sealing Tape
23
Adjusting the Sealing Tape Brake
23
Inserting the Sealing Tape
24
Adjusting the Feed Roller Clearance
25
Selecting the Production Type
26
Entering the Sealing Parameters (Manual Heat Sealing)
28
Entering the Sealing Temperature
29
Entering the Sealing Speed
30
Choice of the Nozzle Type and Hot Air Volume
31
Entering the Roller Pressure
32
Adjusting the Control Panel
33
Heat Sealing
34
Heat Sealing Principle
34
Manual Heat Sealing
35
Dynamic Heat Sealing
37
Creating/Editing a Heat Sealing Program
39
Notepad
40
Basic Functions for the Program Input
41
Sealing Parameters
42
Functions for Switching to Other Zones
43
Entering Further Sealing Parameters
44
Concluding Programming
45
Example of How to Enter a Sealing Program
46
Programmed Heat Sealing with Individual Programs
50
Creating/Processing Sequences
52
Programmed Heat Sealing with Sequences
53
Error Messages
54
Input
55
Summary of the Functions in the Input Menu
55
Program Management
57
Tape Parameters
59
Further Settings
61
Feed Roller Parameters
62
Rights of Access
64
Abstract
66
Care and Maintenance
68
Servicing and Maintenance Intervals
68
Cleaning
68
Checking the Air Fi Lter/Lubricator
68
Changing the Feed Rollers
69
Notes on Adjustment
70
Tools, Gauges and Other Accessories
70
Adjustment
70
Adjusting the Feed Rollers
71
Adjusting the Hot Air Nozzle
72
Lateral Adjustment
72
Adjusting the Height and the Feed Roller Clearance
73
Setting the Angle
74
Changing the Heating Cartridge
75
Changing the Temperature Sensor
76
Tape Cutting Device
78
Knife
78
Air Jet Setting
79
Protective Switch
80
Boot Key
81
Service Menu
82
Machine Confi Guration
83
Loading/Updating the Operating Program
85
Loading/Updating the Operating Program with the Floppy Disk
85
Loading/Updating the Operating Program with SD-Card
86
Further Parameters
88
Parameter List
89
Description of the Error Numbers
90
General Errors
90
Temperature Control Error
91
DC-Motors Error
92
List of Outputs and Inputs
92
Digital Outputs
92
Digital Inputs
93
Analog Outputs
93
Analog Inputs
93
Errors When Switching Outputs
94
Examples of Errors and Causes
94
Pneumatic-Circuit Diagrams
97
Circuit Diagrams
