• All frames transmitted on a given port (also known as egress or destination mirroring).
Mirror Port Configuration
The Port Mirror screen in Figure 4-4-8 appears.

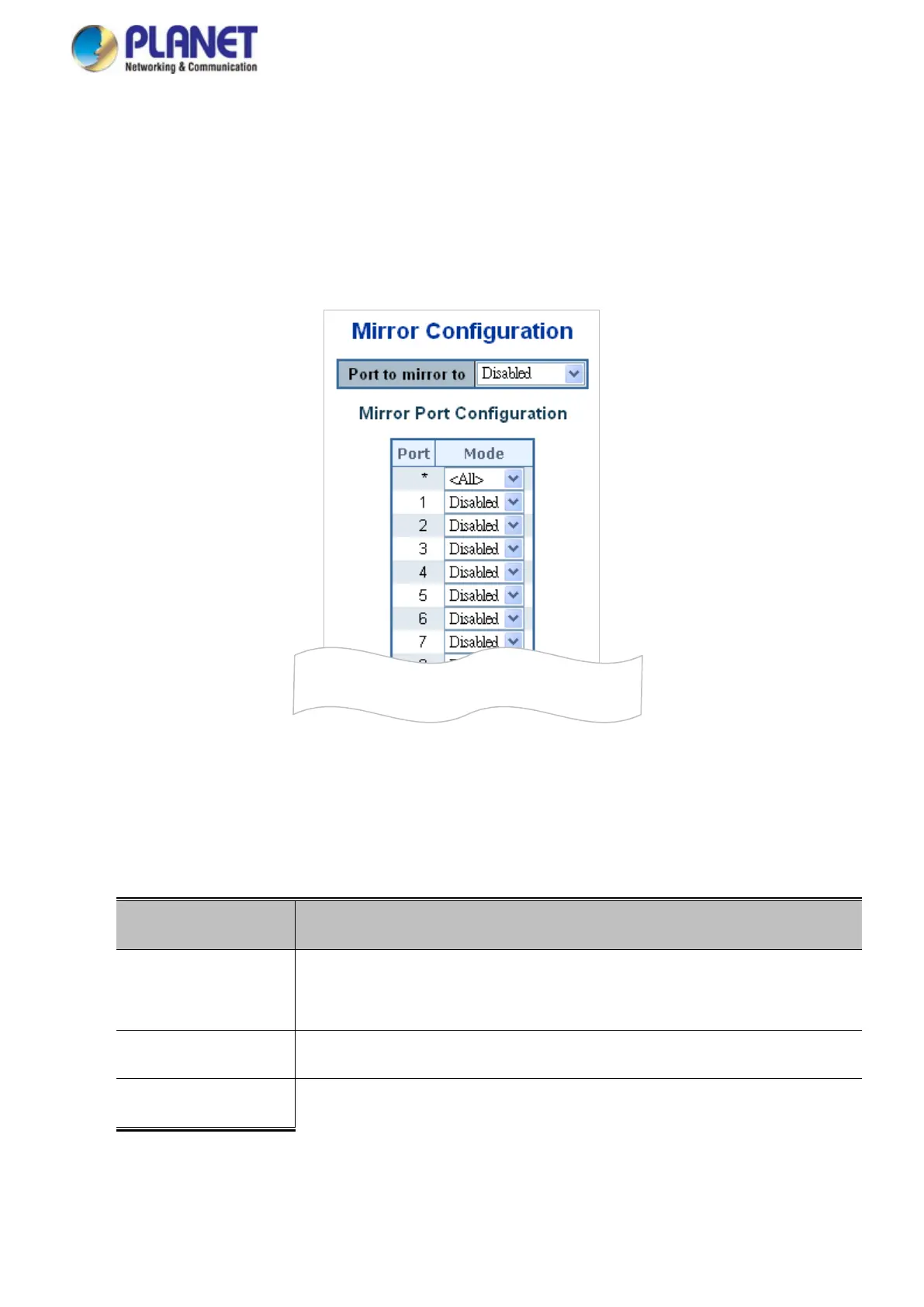

Figure 4-4-8: Mirror Configuration Page Screenshot
The page includes the following fields:
Object Description
• Port to mirror on
Frames from ports that have either source (rx) or destination (tx) mirroring
enabled are mirrored to this port. Disabled disables mirroring.
• Port
The logical port for the settings contained in the same row.
• Mode
Select mirror mode.
