User’s Manual of GS-5220 LCD Series
194
Global VLAN Configuration

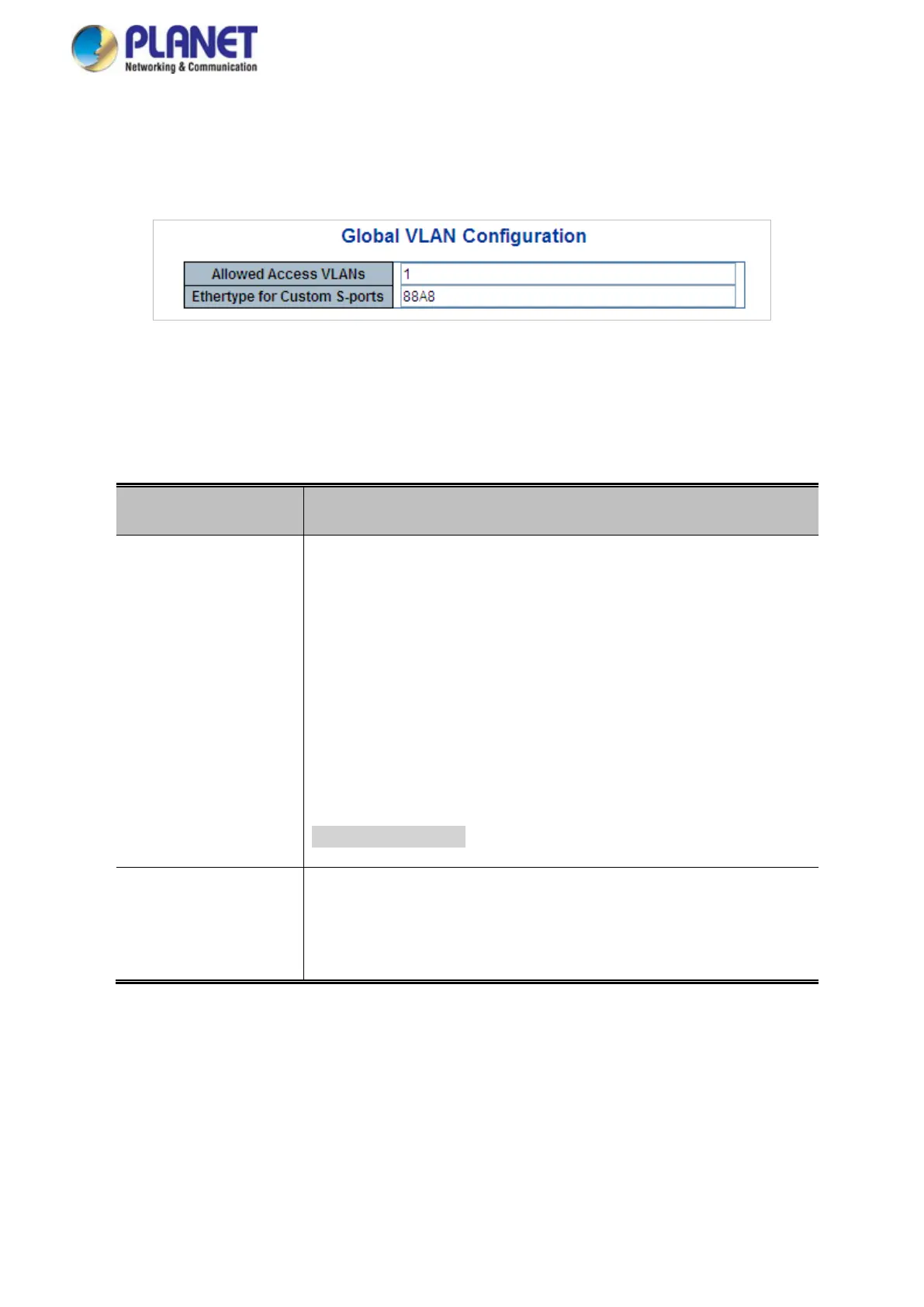

The Global VLAN Configuration screen in Figure 4-6-1 appears.
Figure 4-6-1 : Global VLAN Configuration Screenshot
The page includes the following fields:
Object Description
• Allowed Access
VLANs
This field shows the allowed Access VLANs, it only affects ports
configured as Access ports. Ports in other modes are members of all
VLANs specified in the Allowed VLANs field.
By default, only VLAN 1 is enabled. More VLANs may be created by
using a list syntax where the individual elements are separated by
commas. Ranges are specified with a dash separating the lower and
upper bound.
The following example will create VLANs 1, 10, 11, 12, 13, 200, and 300:
1,10-13,200,300. Spaces are allowed in between the delimiters.
• Ethertype for Custom
S-ports
This field specifies the ethertype/TPID (specified in hexadecimal) used
for Custom S-ports. The setting is in force for all ports whose Port Type
is set to S-Custom-Port.
Port VLAN Configuration
The VLAN Port Configuration screen in Figure 4-6-2 appears.
