User’s Manual of GS-5220 LCD Series
195

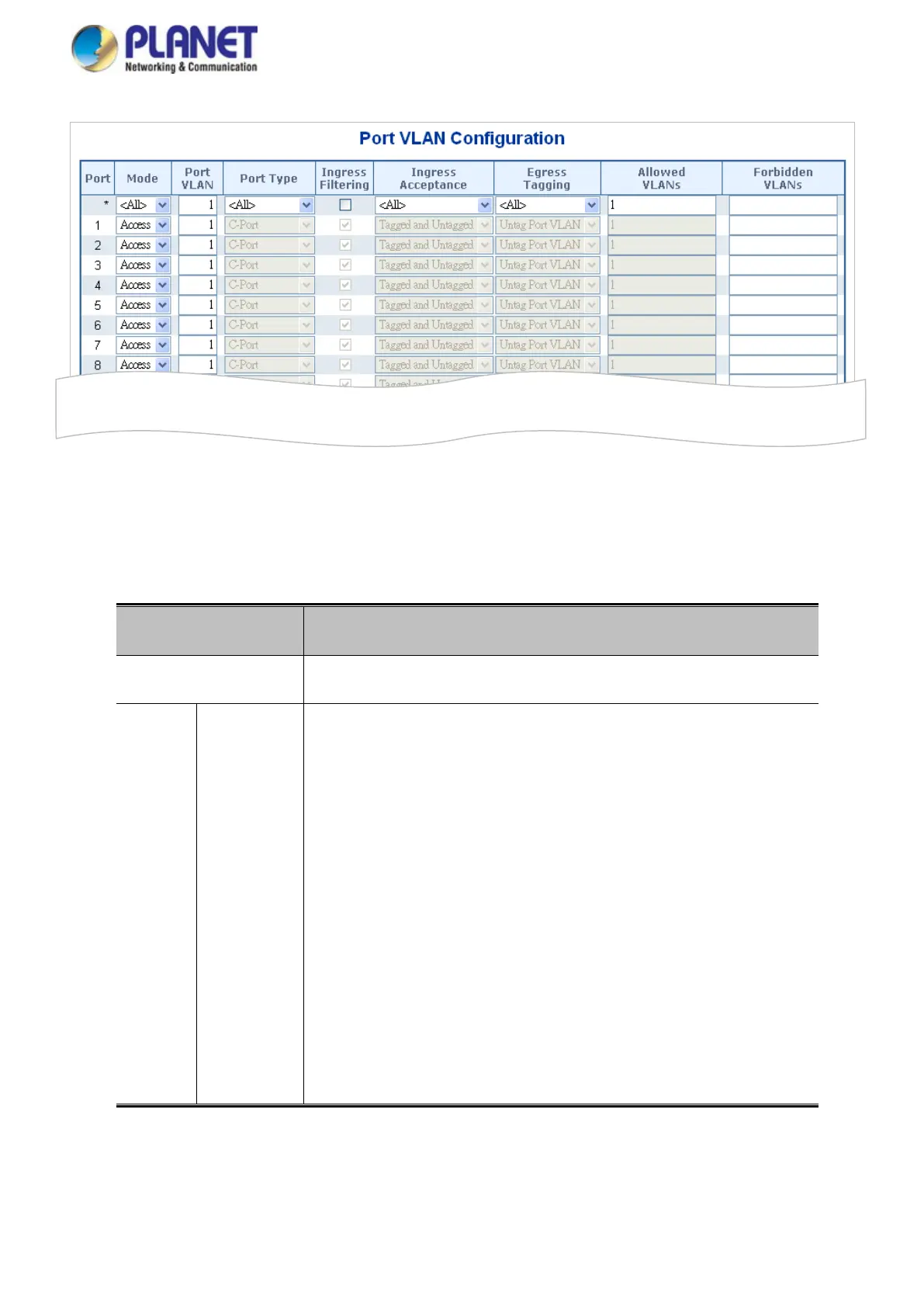

Figure 4-6-2 : Port VLAN Configuration Screenshot
The page includes the following fields:
Object Description
• Port
This is the logical port number for this row.
• Mode
Access Access ports are normally used to connect to end stations. Dynamic
features like Voice VLAN may add the port to more VLANs behind the
scenes. Access ports have the following characteristics:
• Member of exactly one VLAN, the Port VLAN (Access VLAN),
which by default is 1
• Accepts untagged and C-tagged frames
• Discards all frames that are not classified to the Access VLAN
• On egress all frames classified to the Access VLAN are
transmitted untagged. Other (dynamically added VLANs) are
transmitted tagged
