4.3.1.3 Port Statistics Details
This page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details
to display. The displayed counters are the totals for receive and transmit, the size counters for receive and transmit, and the
error counters for receive and transmit. The Detailed Port Statistics screen in Figure 4-3-1-3 appears.

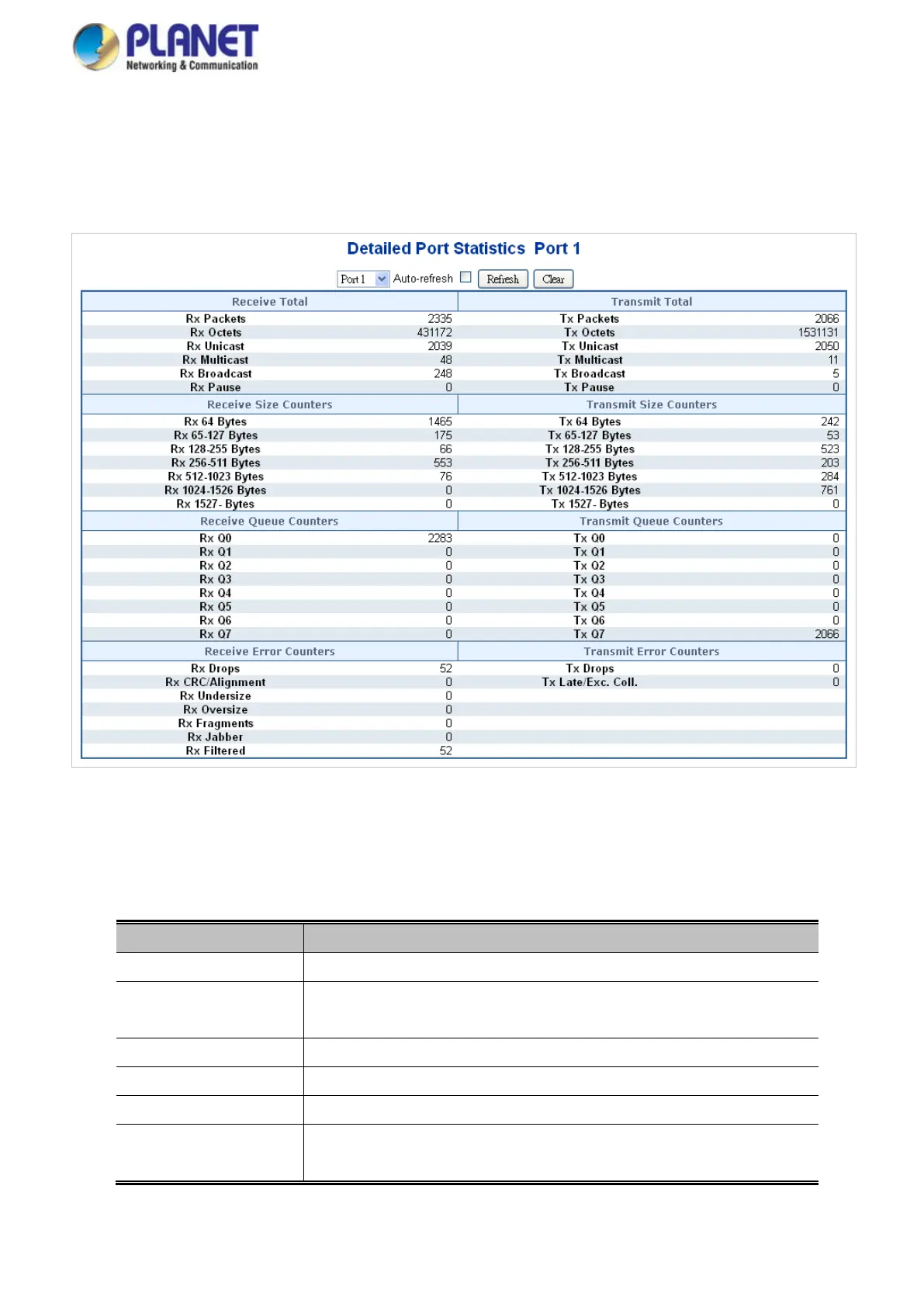

Figure 4-3-1-3: Detailed Port Statistics Port 1 Page Screenshot
The page includes the following fields:
Receive Total and Transmit Total
Object Description
• Rx and Tx Packets
The number of received and transmitted (good and bad) packets
• Rx and Tx Octets
The number of received and transmitted (good and bad) bytes, including FCS,
but excluding framing bits.
• Rx and Tx Unicast
The number of received and transmitted (good and bad) unicast packets.
• Rx and Tx Multicast
The number of received and transmitted (good and bad) multicast packets.
• Rx and Tx Broadcast
The number of received and transmitted (good and bad) broadcast packets.
• Rx and Tx Pause
A count of the MAC Control frames received or transmitted on this port that has
an opcode indicating a PAUSE operation.
