User’s Manual of IGS-10020HPT-U
352
4.6.1.9 LLDP PoE Neighbors
This page provides a status overview for all LLDP PoE neighbors. The displayed table contains a row for each port on which an
LLDP PoE neighbor is detected. The columns hold the following information: The screen in Figure 4-6-1-8 appears.

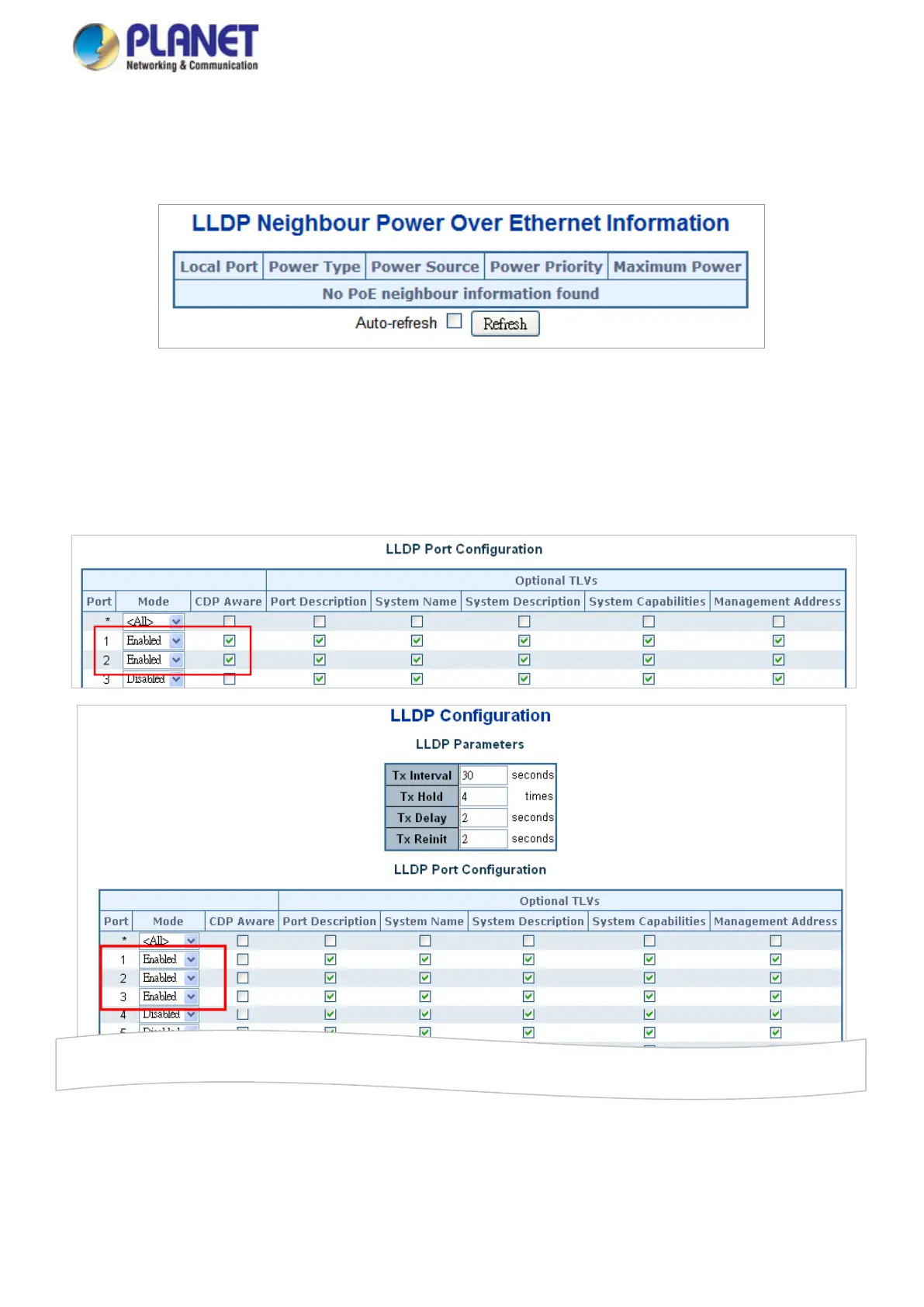

Figure 4-6-1-8: LLDP PoE Neighbor Screenshot
Please note that administrator has to enable LLDP port from LLDP configuration, please refer to the following example (The
screen in Figure 4-6-1-9 appears.) To enable LLDP function from port1 to port3, administrator has to plug a PD that supports
PoE LLDP function, and then administrator is going to see the PoE information of the PD from LLDP.
Figure 4-6-1-9: LLDP Configuration Screenshot.
