4.3.9.2 MVR Status

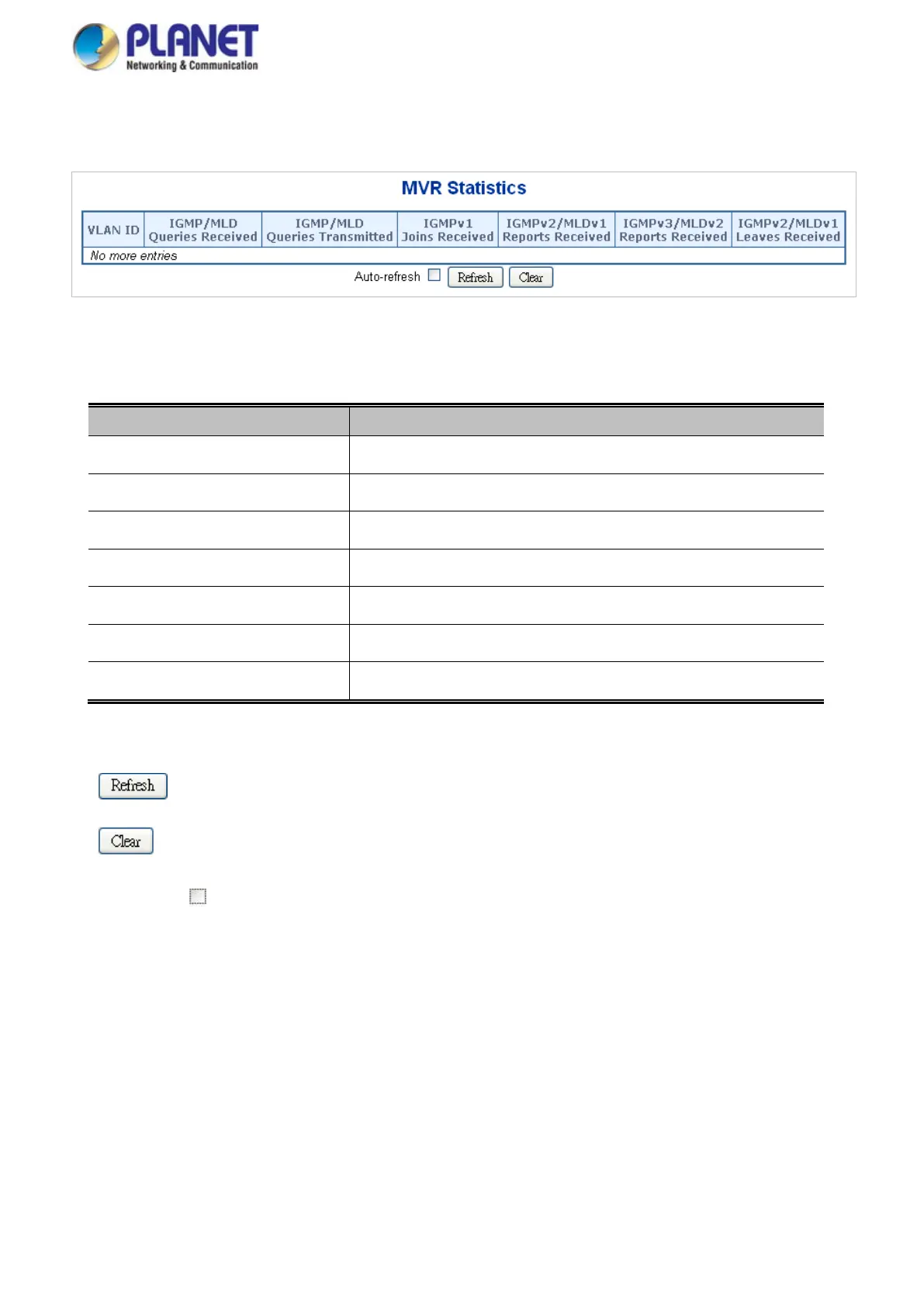

This page provides MVR status. The MVR Status screen in Figure 4-3-9-2 appears.
Figure 4-3-9-2: MVR Status Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
The Multicast VLAN ID.
• IGMP/MLD Queries Received
The number of Received Queries for IGMP and MLD, respectively.
• IGMP/MLD Queries Transmitted
The number of Transmitted Queries for IGMP and MLD, respectively.
• IGMPv1 Joins Received
The number of Received IGMPv1 Joins.
• IGMPv2/MLDv1 Reports Received
The number of Received IGMPv2 Joins and MLDv1 Reports, respectively.
• IGMPv3/MLDv2 Reports Received
The number of Received IGMPv1 Joins and MLDv2 Reports, respectively.
• IGMPv2/MLDv1 Leaves Received
The number of Received IGMPv2 Leaves and MLDv1 Dones, respectively.
Buttons
: Click to refresh the page immediately.
: Clears all Statistics counters.
Auto-refresh : Automatic refresh occurs every 3 seconds.
