2.1.2 Front Panel
IGS-10020HPT-U

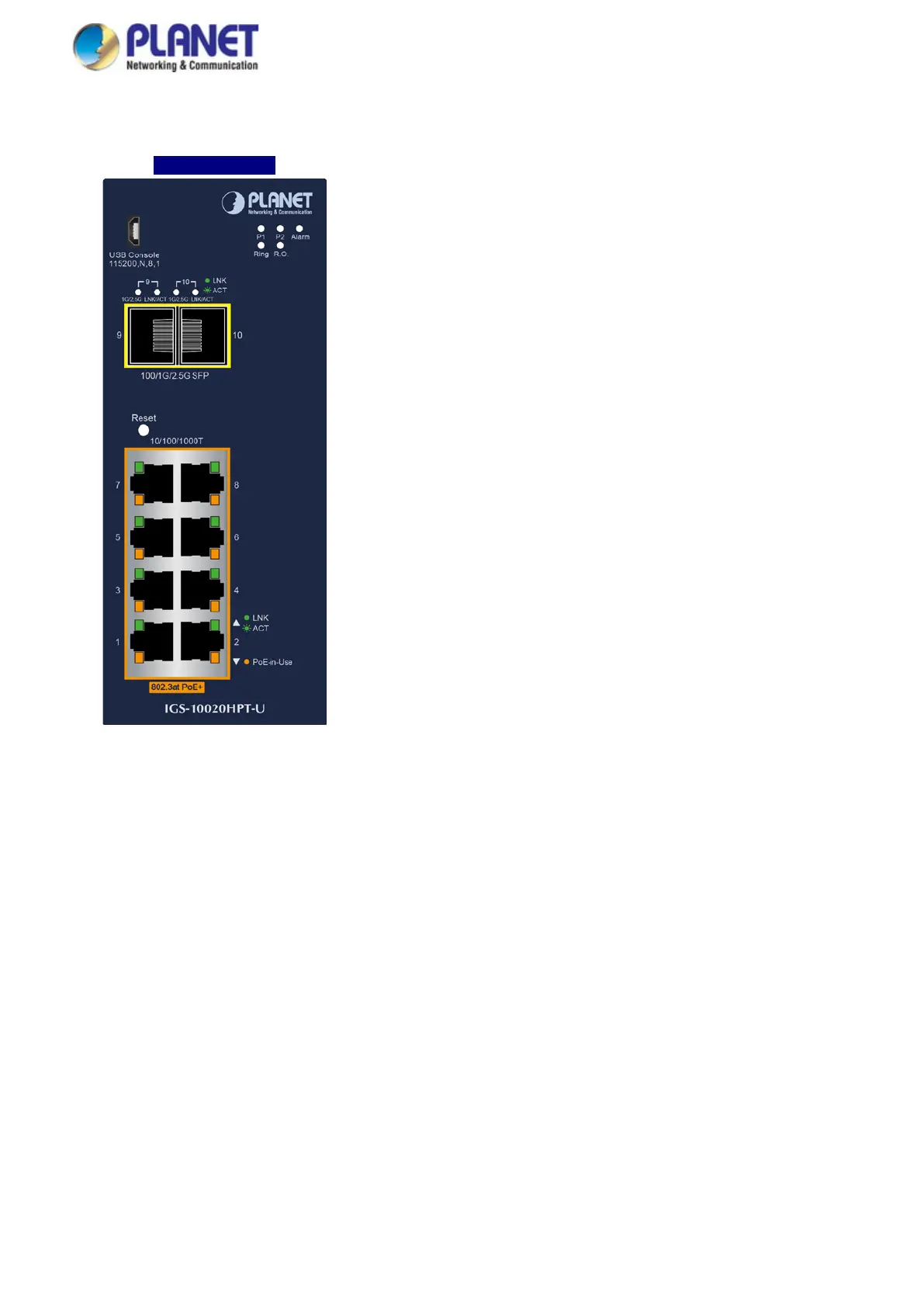

Figure 2-1: IGS-10020PT Switch Front Panel
■ Gigabit TP Interface
10/100/1000BASE-T Copper, RJ45 Twisted-pair: Up to 100 meters.
■ SFP Slot
Triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) fiber-optic modules, the distance can be extended
from 300meters to 2km (multi-mode fiber) and to 10/20/30/40/60/70/80/120 kilometers (single-mode fiber or WDM fiber).
■ Console Port
The console port is USB console interface. It is an interface for connecting a terminal directly. Through the console port, it
provides rich diagnostic information including IP address setting, factory reset, port management, link status and system
setting.
■ Reset Button
On the upper left side of the front panel, the reset button is designed for rebooting the Industrial Managed PoE+ Switch
without turning off and on the power. The following is the summary table of reset button functions:
