4.4.5 QCL

4.4.5.1 QoS Control List

This page shows the QoS Control List(QCL), which is made up of the QCEs. Each row describes a QCE that is defined. The

maximum number of QCEs is 256 on each switch.

Click on the lowest plus sign to add a new QCE to the list. The QoS Control List screen in Figure 4-4-5-1 appears.

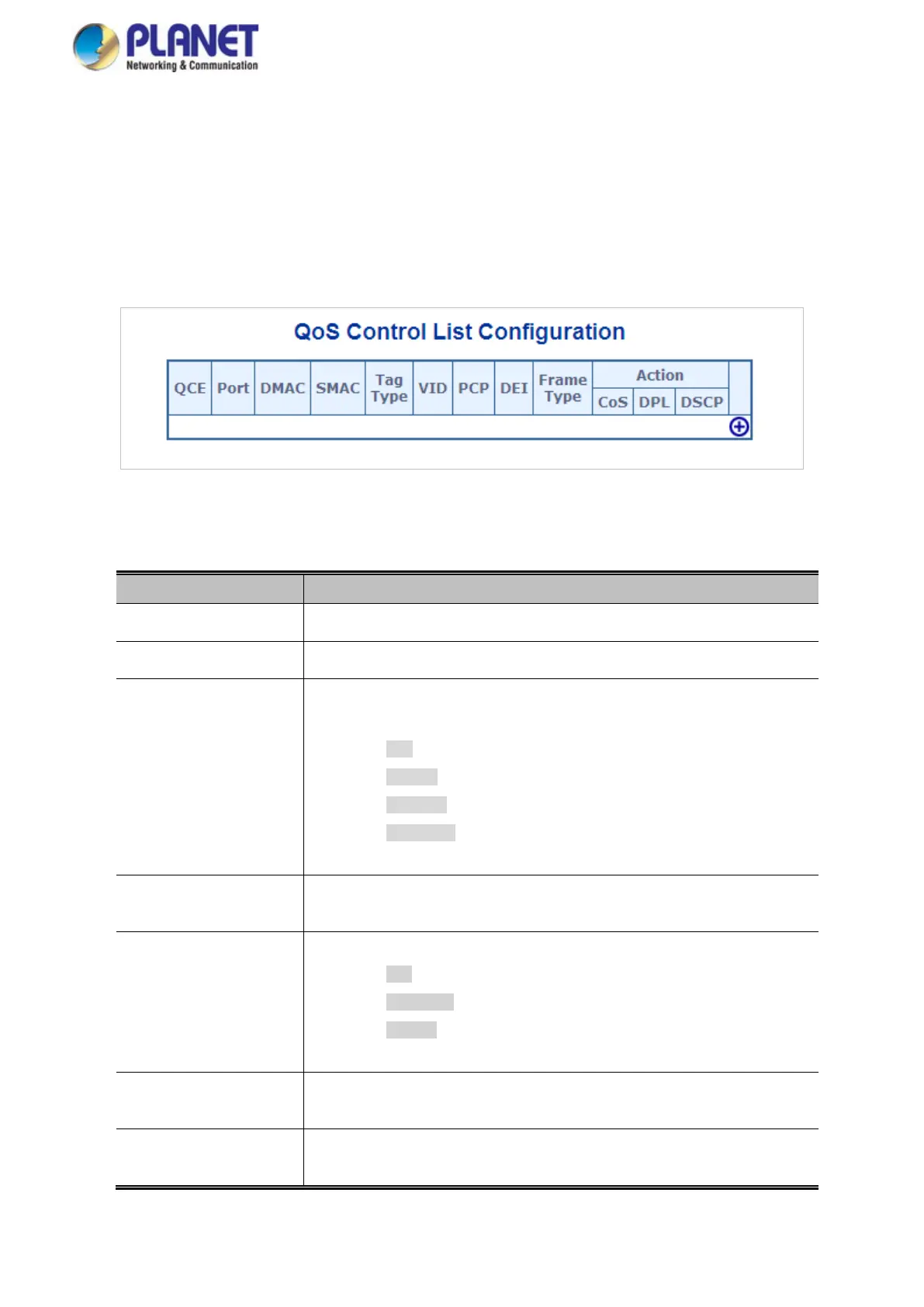

Figure 4-4-5-1: QoS Control List Configuration Page Screenshot

The page includes the following fields:

Object Description

• QCE#

Indicates the index of QCE.

• Port

Indicates the list of ports configured with the QCE.

• DMAC

Specify the type of Destination MAC addresses for incoming frame. Possible

values are:

■ Any: All types of Destination MAC addresses are allowed.

■ Unicast: Only Unicast MAC addresses are allowed.

■ Multicast: Only Multicast MAC addresses are allowed.

■ Broadcast: Only Broadcast MAC addresses are allowed.

The default value is 'Any'.

• SMAC

Displays

the OUI field of Source MAC address, i.e. first three octet (byte) of MAC

address.

• Tag Type

Indicates tag type. Possible values are:

■ Any: Match tagged and untagged frames.

■ Untagged: Match untagged frames.

■ Tagged: Match tagged frames.

The default value is 'Any'

• VID

Indicates (VLAN ID), either a specific VID or range of VIDs. VID can be in the

range 1-4095 or 'Any'

• PCP

Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4, 5, 6, 7) or

range(0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or 'Any'.
