4.4.1.1 QoS Port Classification
This page allows you to configure the basic QoS Classification settings for all switch ports. The Port classification screen in
Figure 4-4-1-1 appears.

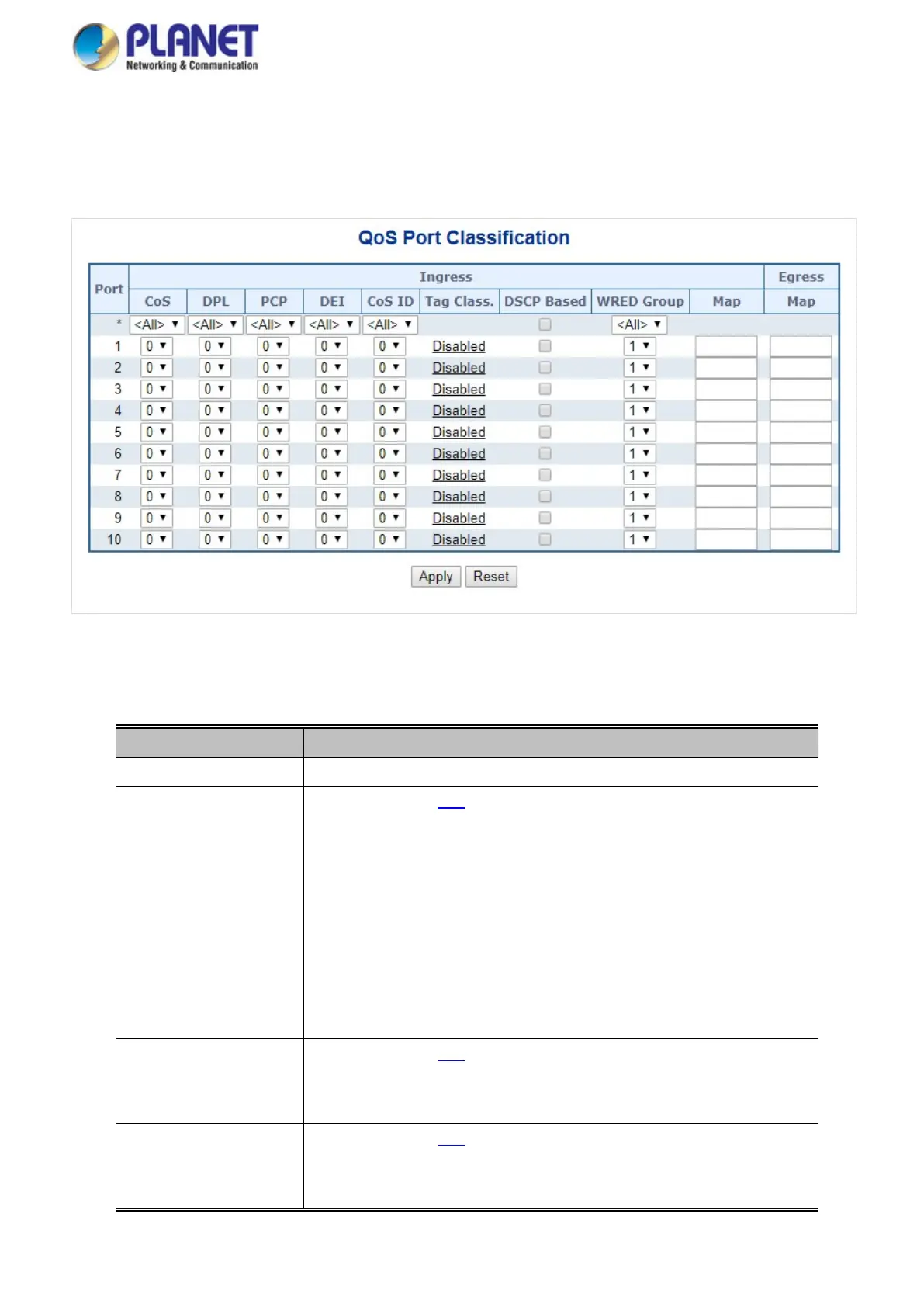

Figure 4-4-1-1: QoS Ingress Port Policers Page Screenshot
The page includes the following fields:
Object Description
• Port
The port number for which the configuration below applies.
• CoS
Controls the default CoS value.
All frames are classified to a CoS. There is a one to one
mapping between CoS, queue and priority. A CoS of 0 (zero)
has the lowest priority.
The classified CoS can be overruled by a QCL entry.
Note: If the default CoS has been dynamically changed, then
the actual default CoS is shown in parentheses after the
configured default CoS.
• DPL
Controls the default DPL value.
All frames are classified to a Drop Precedence Level.
The classified DPL can be overruled by a QCL entry.
• PCP
Controls the default PCP value.
All frames are classified to a PCP value.
If the port is VLAN aware and the frame is tagged, then the
