4.3.3.9 MAC-based VLAN
The MAC-based VLAN entries can be configured here. This page allows for adding and deleting MAC-based VLAN entries and
assigning the entries to different ports. This page shows only static entries. The MAC-based VLAN screen in Figure 4-3-3-16
appears.

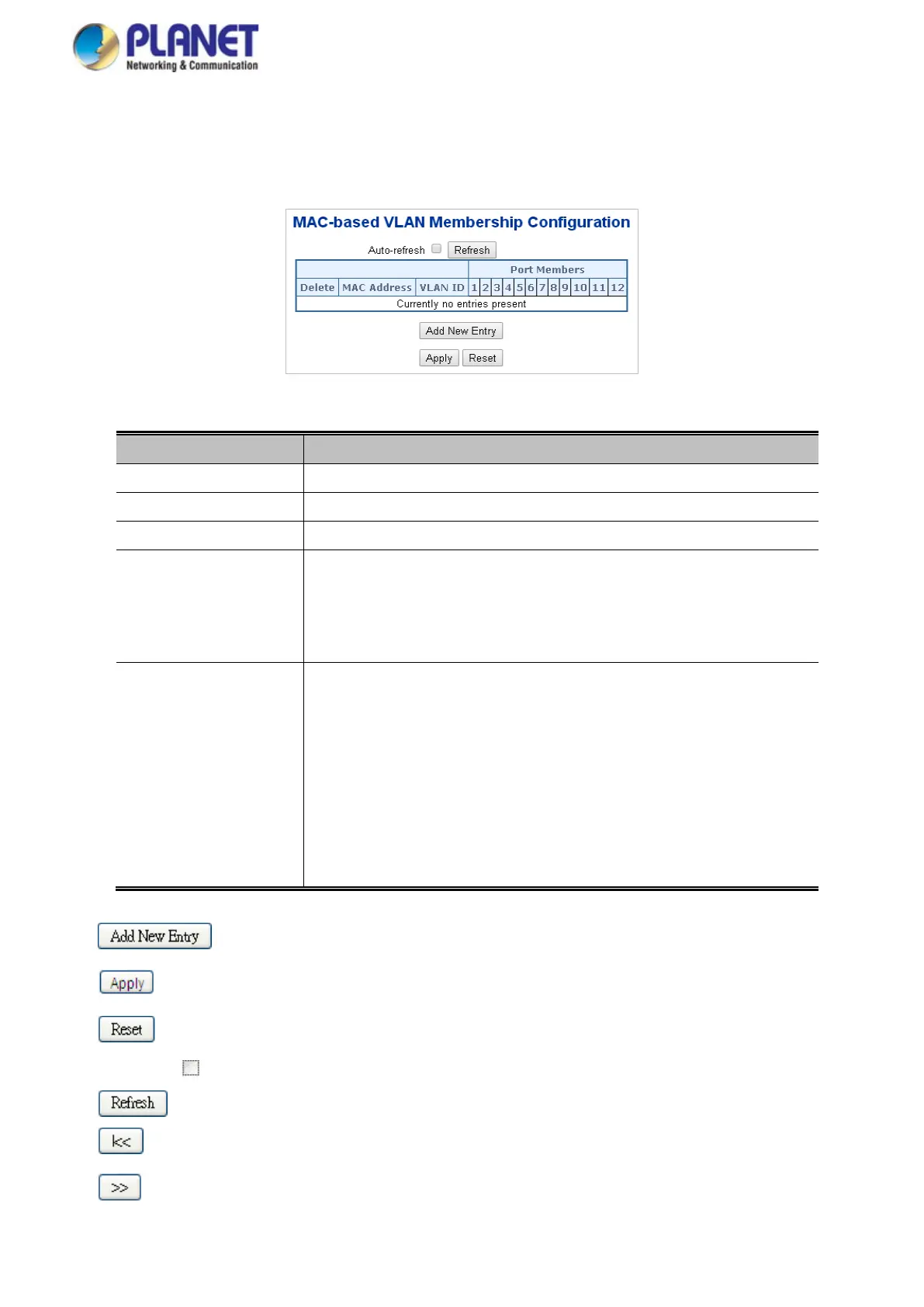

Figure 4-3-3-16: MAC-based VLAN Membership Configuration Page Screenshot
The page includes the following fields:
Object Description
• Delete
To delete a MAC-based VLAN entry, check this box and press save.
• MAC Address
Indicates the MAC address.
• VLAN ID
Indicates the VLAN ID.
• Port Members
A row of check boxes for each port is displayed for each MAC-based VLAN entry.
To include a port in a MAC-based VLAN, check the box. To remove or exclude
the port from the MAC-based VLAN, make sure the box is unchecked. By default,
no ports are members, and all boxes are unchecked.
• Adding a New
MAC-based VLAN
Click “Add New Entry” to add a new MAC-based VLAN entry. An empty row is
added to the table, and the MAC-based VLAN entry can be configured as
needed. Any unicast MAC address can be configured for the MAC-based VLAN
entry. No broadcast or multicast MAC addresses are allowed. Legal values for a
VLAN ID are 1 through 4095.
The MAC-based VLAN entry is enabled when you click on "Save". A MAC-based
VLAN without any port members will be deleted when you click "Save".
The “Delete” button can be used to undo the addition of new MAC-based VLANs.
Buttons
: Click to add a new MAC-based VLAN entry.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh : Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediately.
: Updates the table starting from the first entry in the MAC-based VLAN Table.
: Updates the table, starting with the entry after the last entry currently displayed.
To Next Page
