4.4.2.3 Port Shaping
This page provides an overview of QoS Egress Port Shapers for all switch ports. The Port shaping screen in Figure 4-4-2-3
appears.

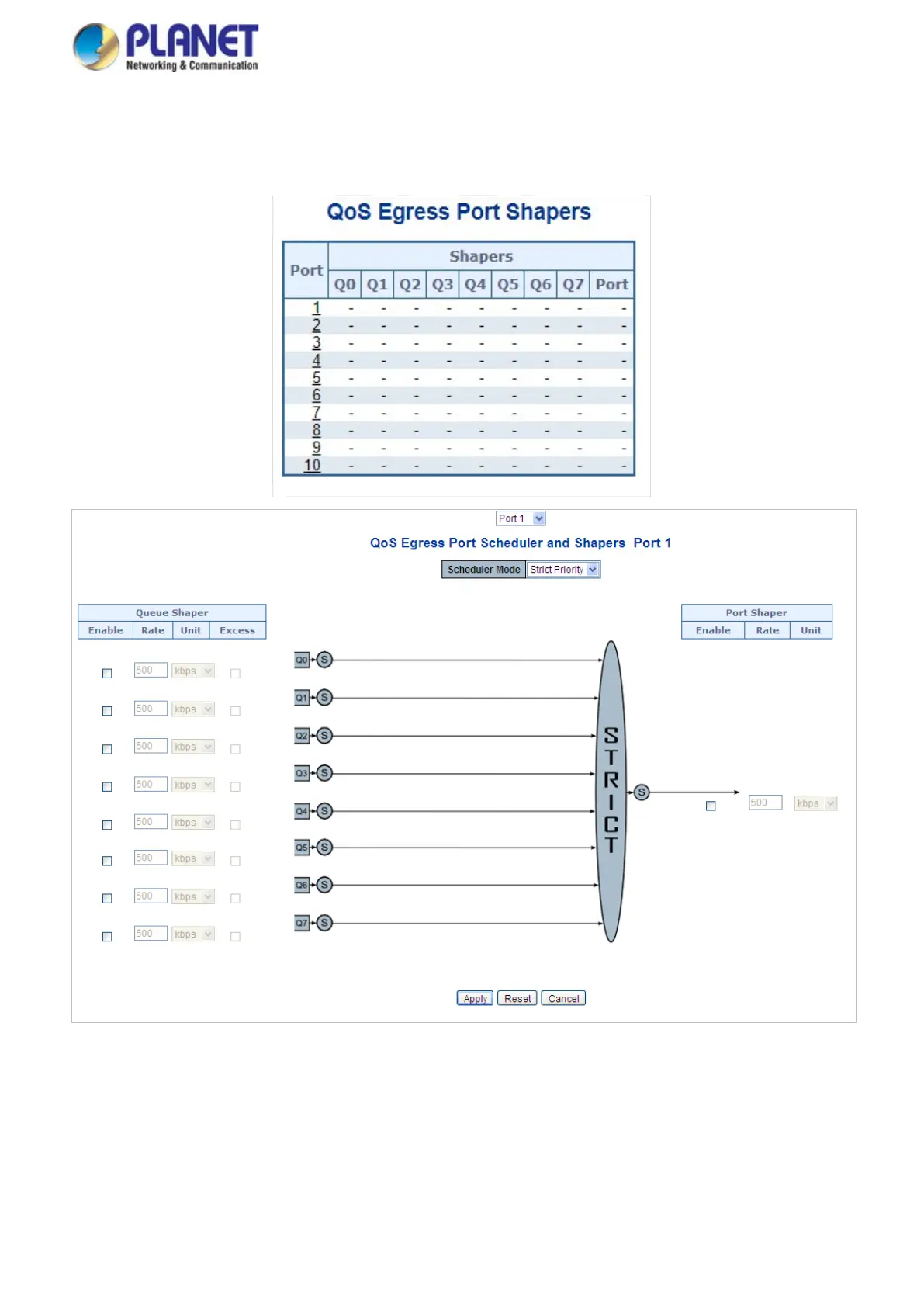

Figure 4-4-2-3: QoS Egress Port Schedule and Shapers Page Screenshot
