User’s Manual of IGS-10020HPT-U
372

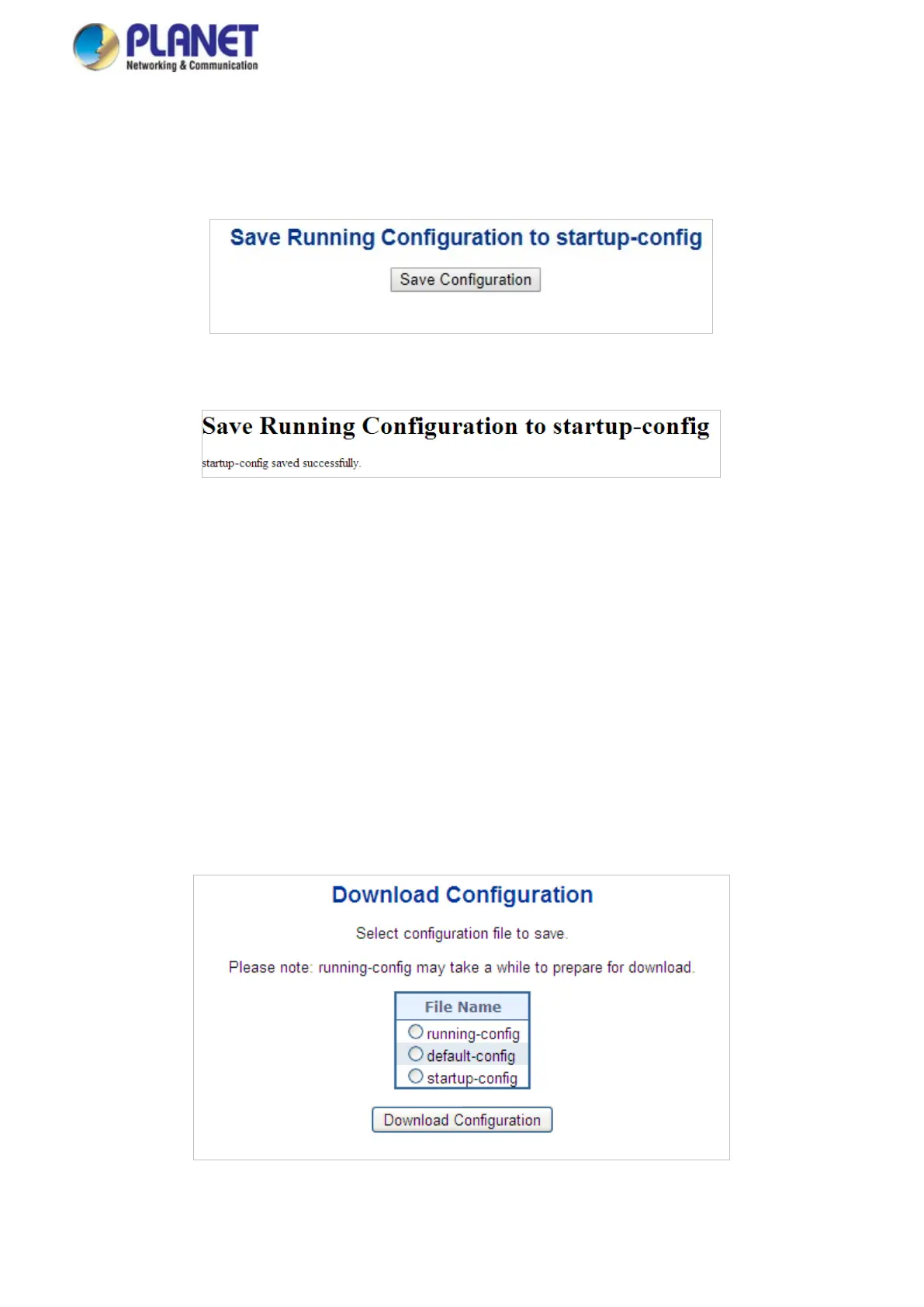

4.9.1.2 Save Startup Config
This function allows to save the current configuration, thereby ensuring that the current active configuration can be used at the
next reboot as the screen in Figure 4-9-1-3 appears. After saving the configuration, the screen in Figure 4-9-1-4 will appear.
Figure 4-9-1-3: Configuration Save Page Screenshot
Figure 4-9-1-4: Finish Saving Page Screenshot
4.9.1.3 Configuration Download
The switch stores its configuration in a number of text files in CLI format. The files are either virtual (RAM-based) or stored in
flash on the switch.
There are three system files:
• running-config: A virtual file that represents the currently active configuration on the switch. This file is volatile.
• startup-config: The startup configuration for the switch, read at boot time.
• default-config: A read-only file with vendor-specific configuration. This file is read when the system is restored to default
settings.
It is also possible to store up to two other files and apply them to running-config, thereby switching configuration.
Configuration Download page allows the download of the running-config, startup-config and default-config on the switch. Please
refer to Figure 4-9-1-5 shown below.
Figure 4-9-1-5: Configuration Download Page Screenshot
