User’s Manual of IGS-10020HPT-U
143
A port must be a member of both a VLAN and a Private VLAN to be able to forward packets. By default, all ports are VLAN
unaware and members of VLAN 1 and Private VLAN 1.
A VLAN unaware port can only be a member of one VLAN, but it can be a member of multiple Private VLANs. The VLAN Port
Status screen in Figure 4-3-3-5 appears.

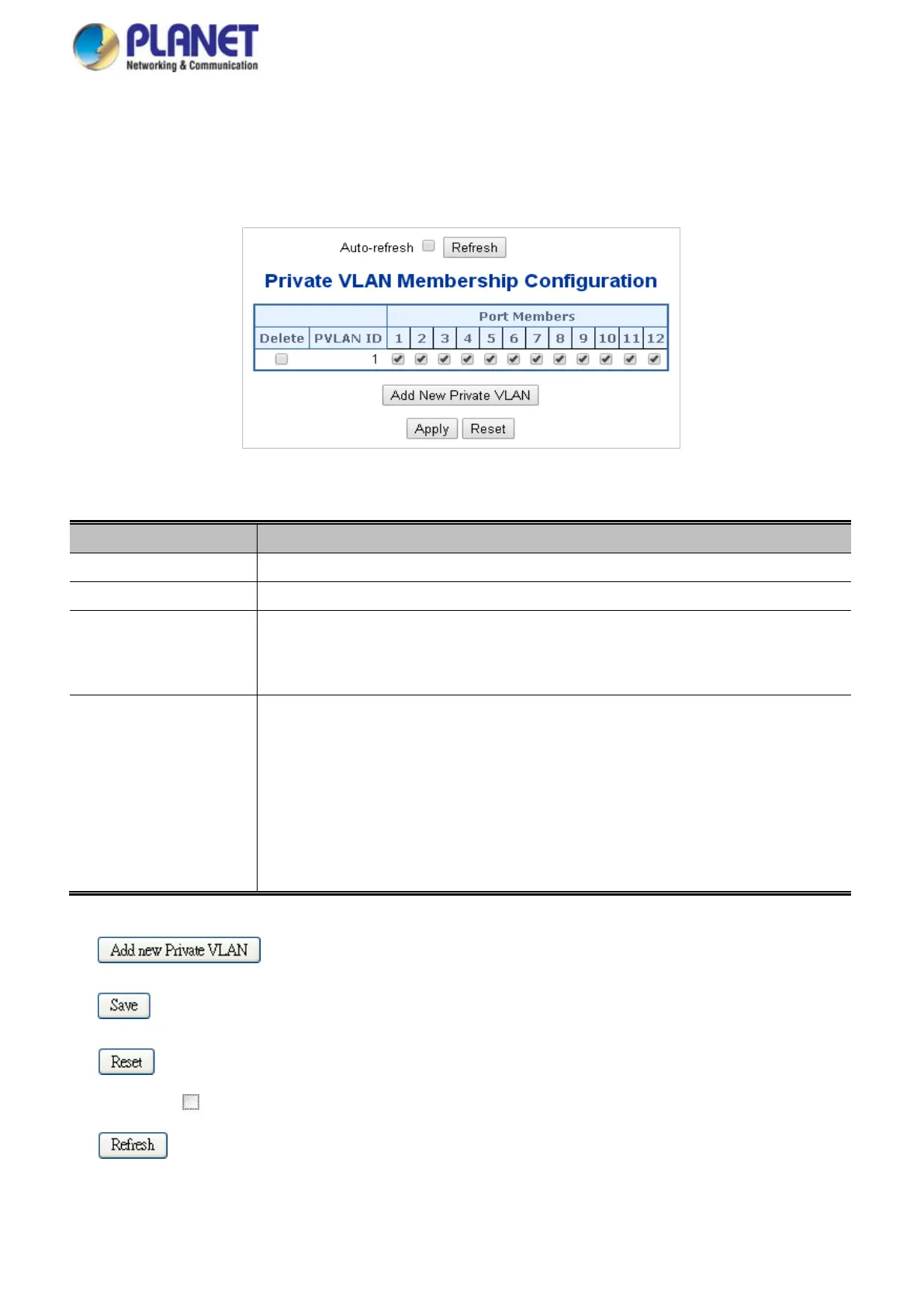

Figure 4-3-3-5: Private VLAN Membership Configuration page screenshot
The page includes the following fields:
Object Description
• Delete
To delete a private VLAN entry, check this box. The entry will be deleted during the next save.
• Private VLAN ID
Indicates the ID of this particular private VLAN.
• Port Members
A row of check boxes for each port is displayed for each private VLAN ID. To include a port in
a Private VLAN, check the box. To remove or exclude the port from the Private VLAN, make
sure the box is unchecked. By default, no ports are members, and all boxes are unchecked.
• Adding a New Private
VLAN
Click “Add New Private VLAN” to add a new private VLAN ID. An empty row is added to the
table, and the private VLAN can be configured as needed. The allowed range for a private
VLAN ID is the same as the switch port number range. Any values outside this range are not
accepted, and a warning message appears. Click "OK" to discard the incorrect entry, or click
"Cancel" to return to the editing and make a correction.
The Private VLAN is enabled when you click "Save".
The “Delete” button can be used to undo the addition of new Private VLANs.
Buttons
: Click to add new VLAN.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh : Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediately.
